Torque Sequence

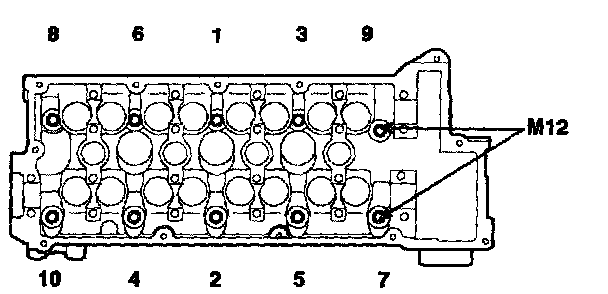

Tighten the bolts to the specified torque in the sequence shown below.
Cylinder head bolt
M10 25 Nm 18 ft. lbs.) + (60 - 65°) + (60 - 65°)
M12 30 Nm (22 ft. lbs.) + (60 - 65°) + (60 - 65°)
Oil pump sequence

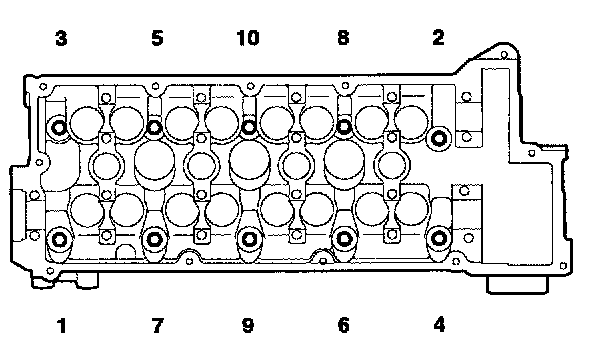

Tighten the bolts to the specified torque in the sequence shown below.
Cylinder head bolt
M10 25 Nm 18 ft. lbs.) + (60 - 65°) + (60 - 65°)
M12 30 Nm (22 ft. lbs.) + (60 - 65°) + (60 - 65°)
Oil pump sequence
