Alarm Module, (Vehicle Antitheft)
>>
EATCS Control Module
EATCS Control Module

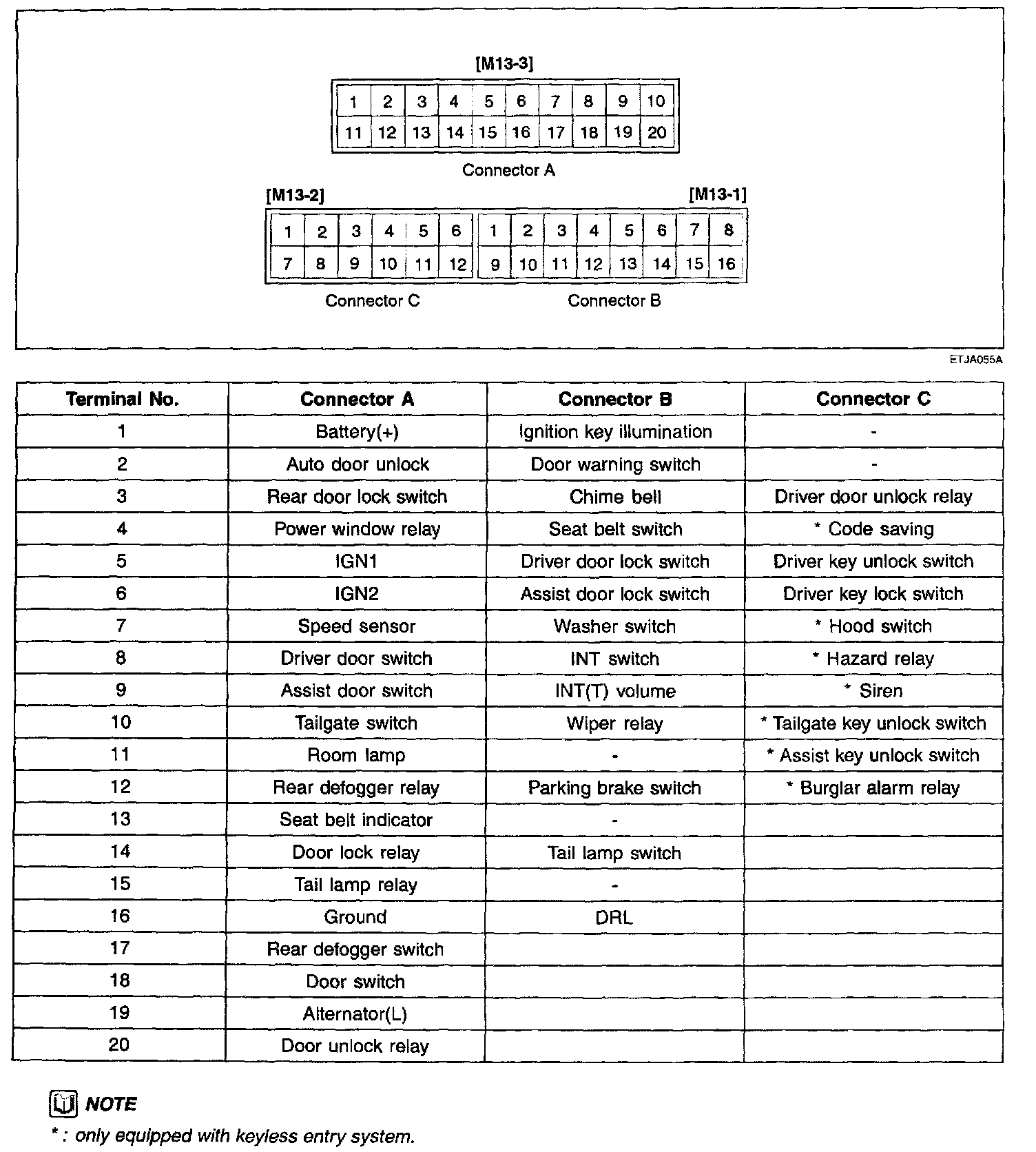

ETACS CM Pin Connection:
