Air Bag Control Module
Air Bag Control Module

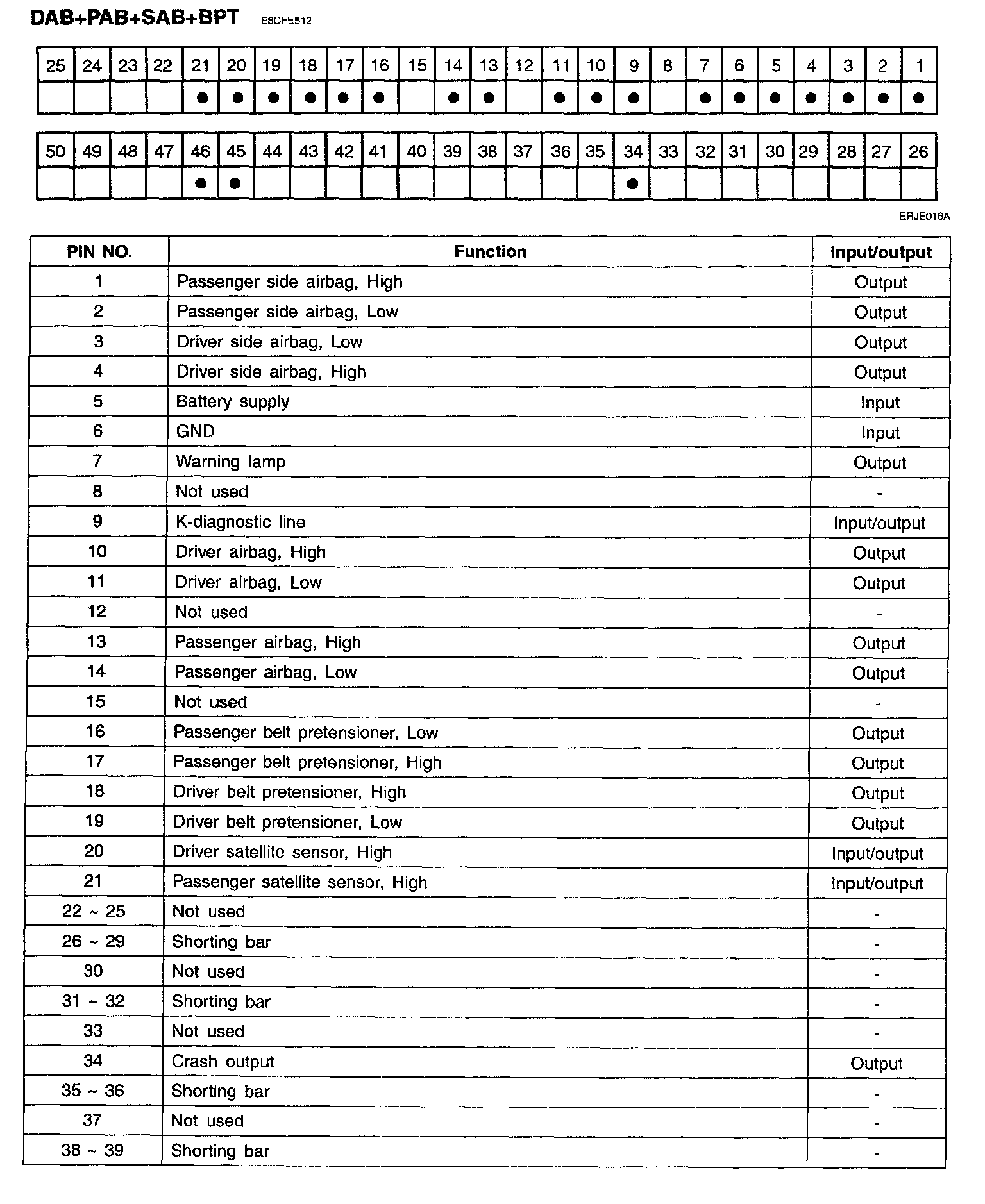

DAB+PAB+SAB+BPT Pin No 1 - 39 Part 1:

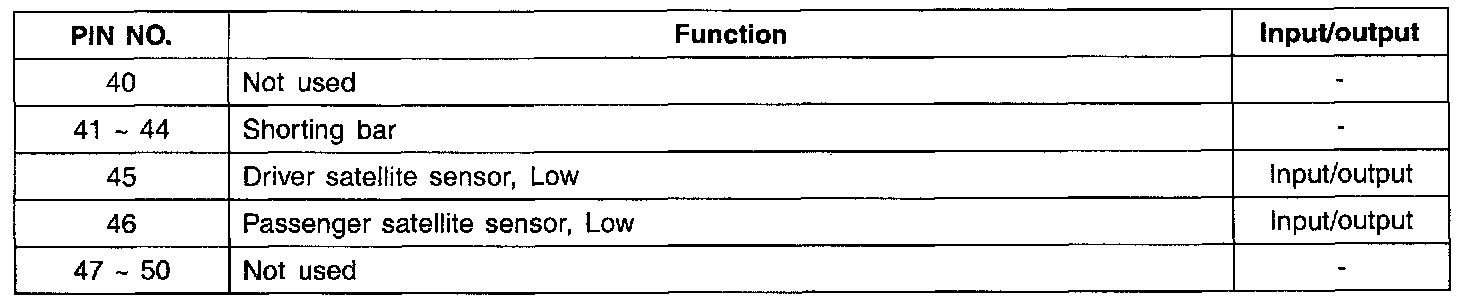

DAB+PAB+SAB+BPT Pin No 1 - 39 Part 2:
