Air Bag Control Module
Air Bag Control Module

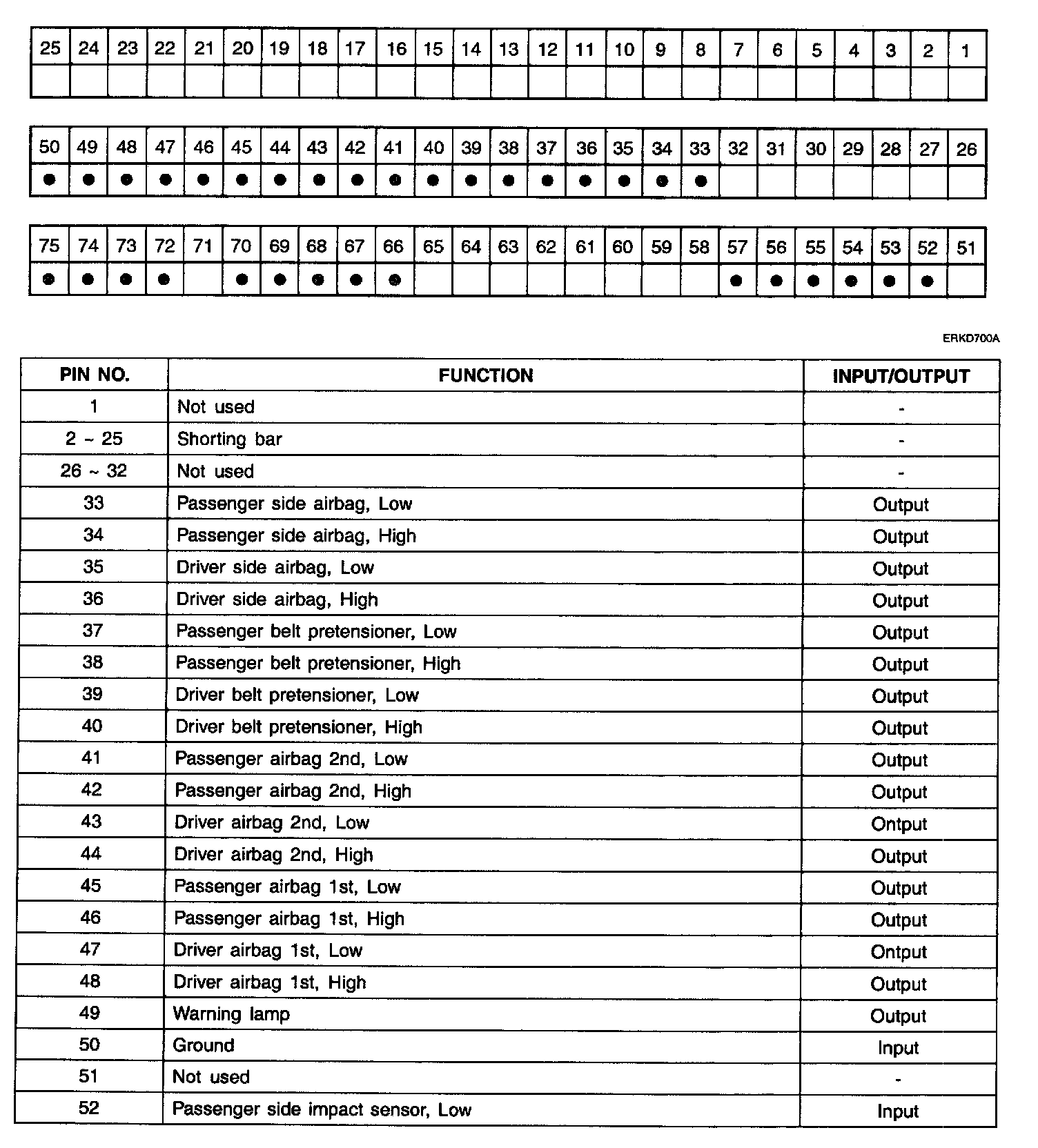

SRSCM Connector DAB+PAB+SAB+BPT Pin No. 1 - 52:

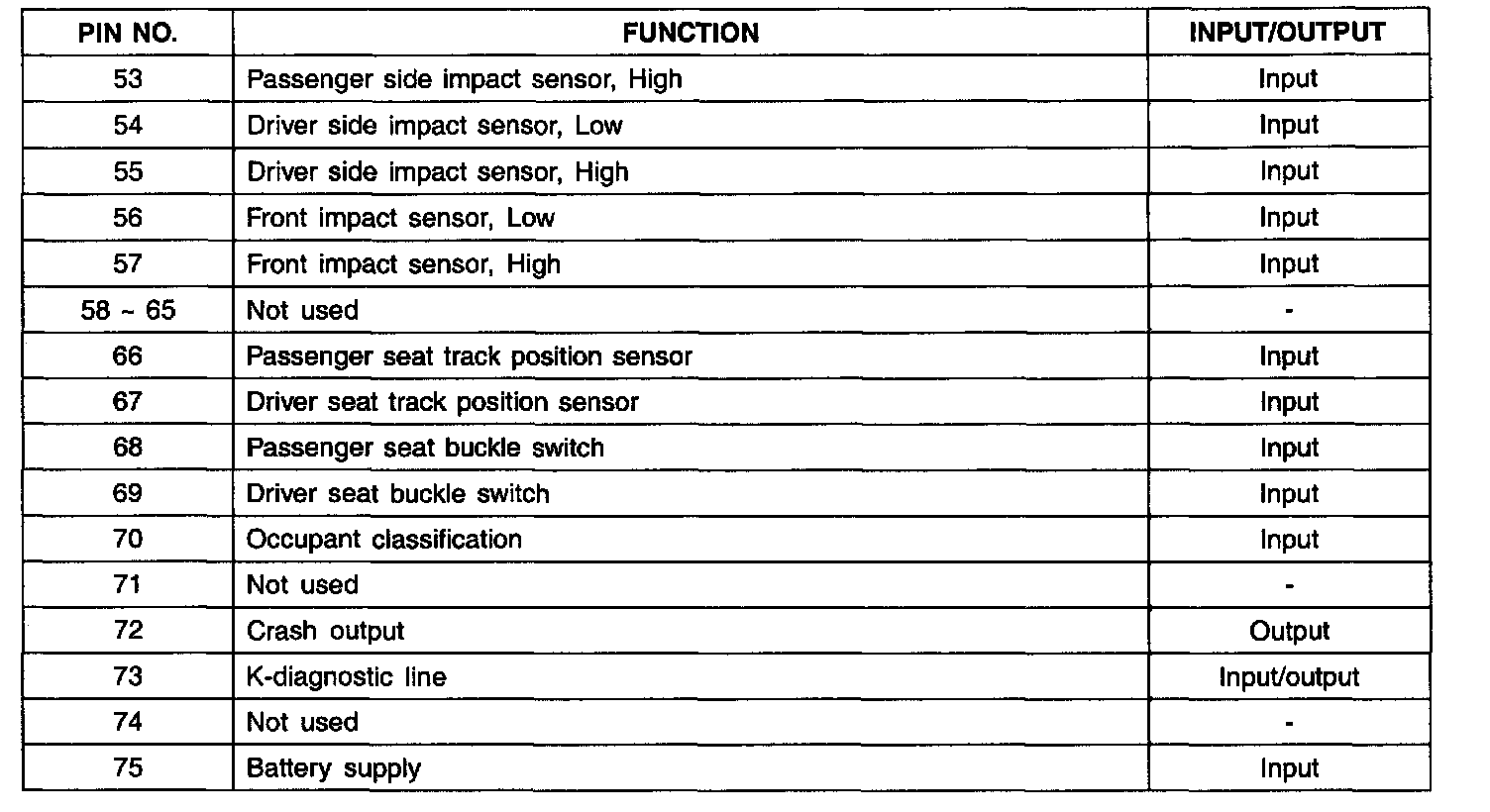

SRSCM Connector DAB+PAB+SAB+BPT Pin No. 53 - 75:
