Home >> Hyundai >> 2003 >> Tiburon V6-2.7L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Throttle Position Sensor >> Locations >> Component Locations

Component Locations

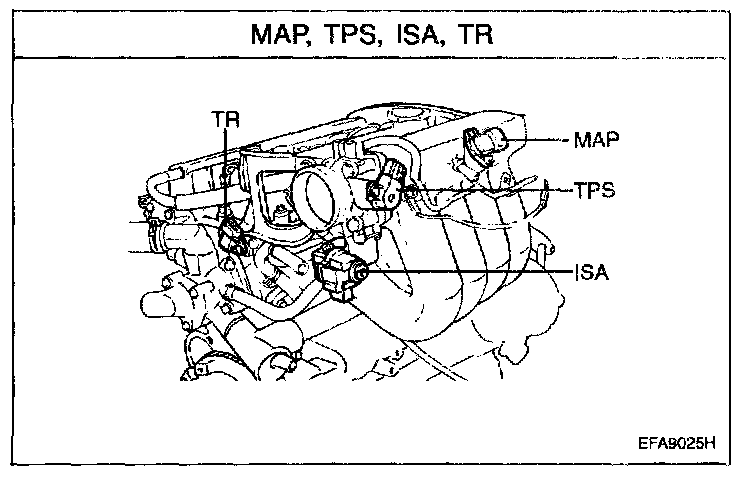

MAP, TPS, ISA, TR:

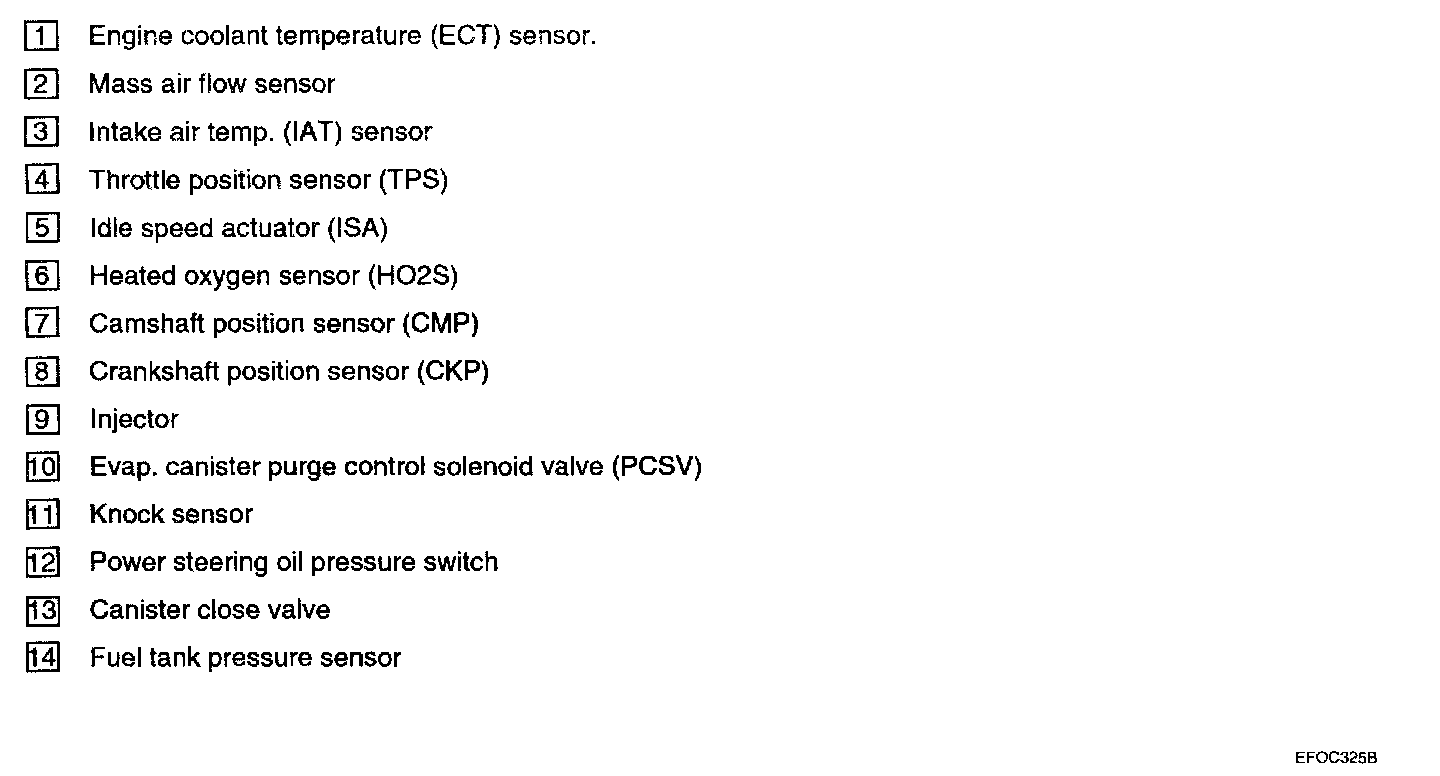

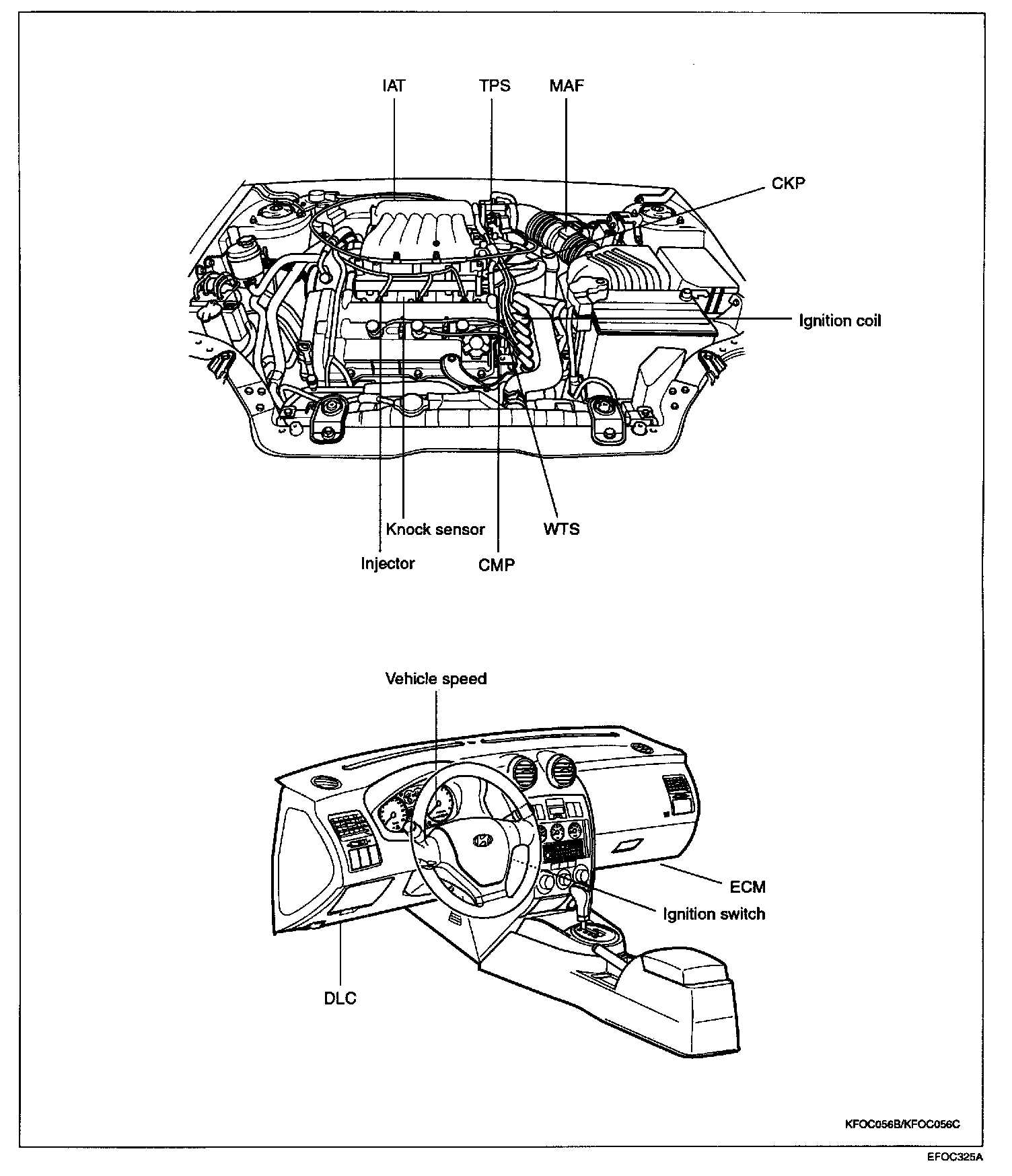

Location Of MFI Components:
