Home >> Hyundai >> 2003 >> Santa Fe L4-2.4L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Module HVAC >> Locations

Control Module HVAC: Locations

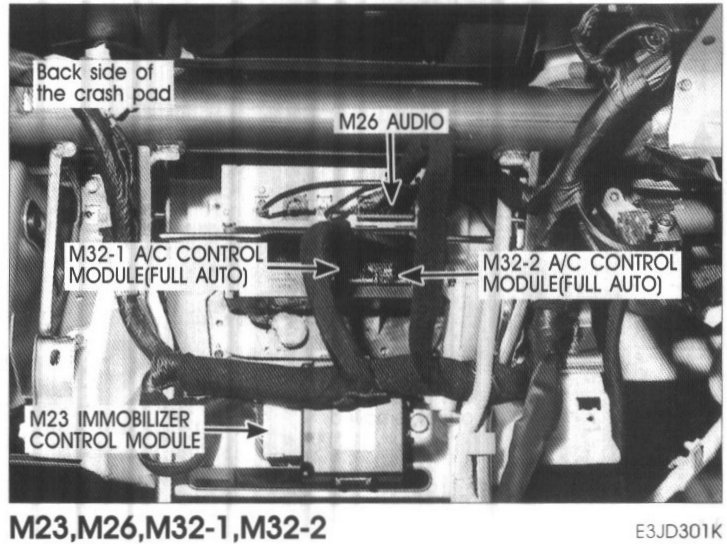

M23, M26, M32-1, M32-2:

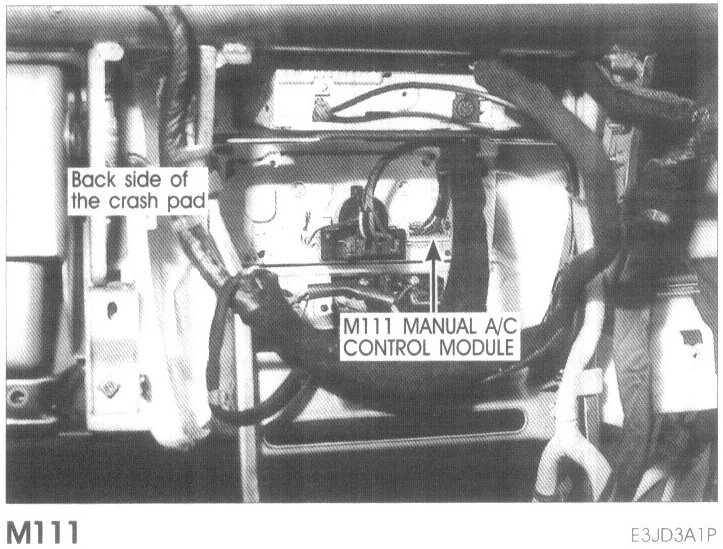

M111:
