Air Bag Control Module
Air Bag Control Module

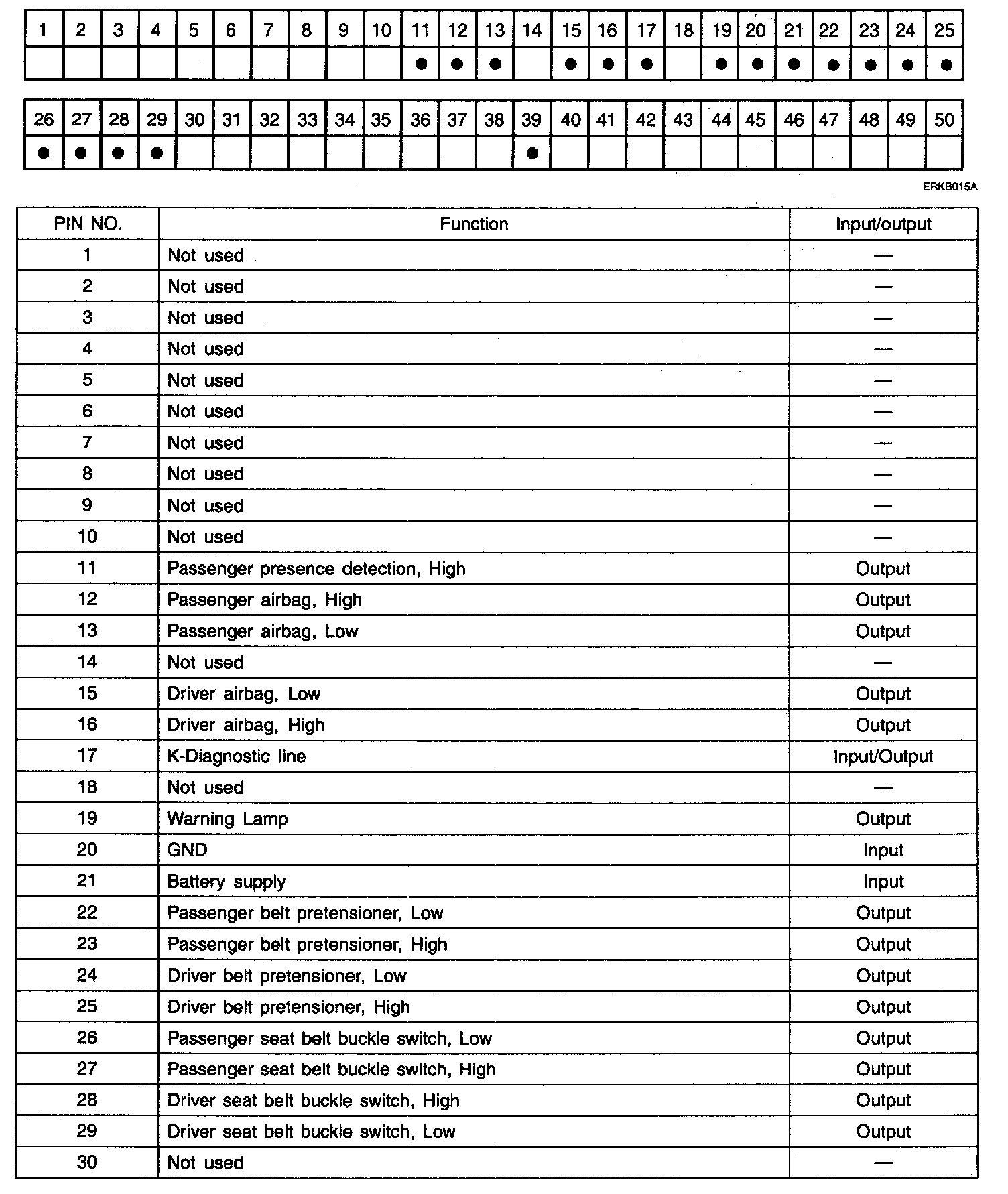

DAB+PAB+BPT Pin No. 1 - 30:

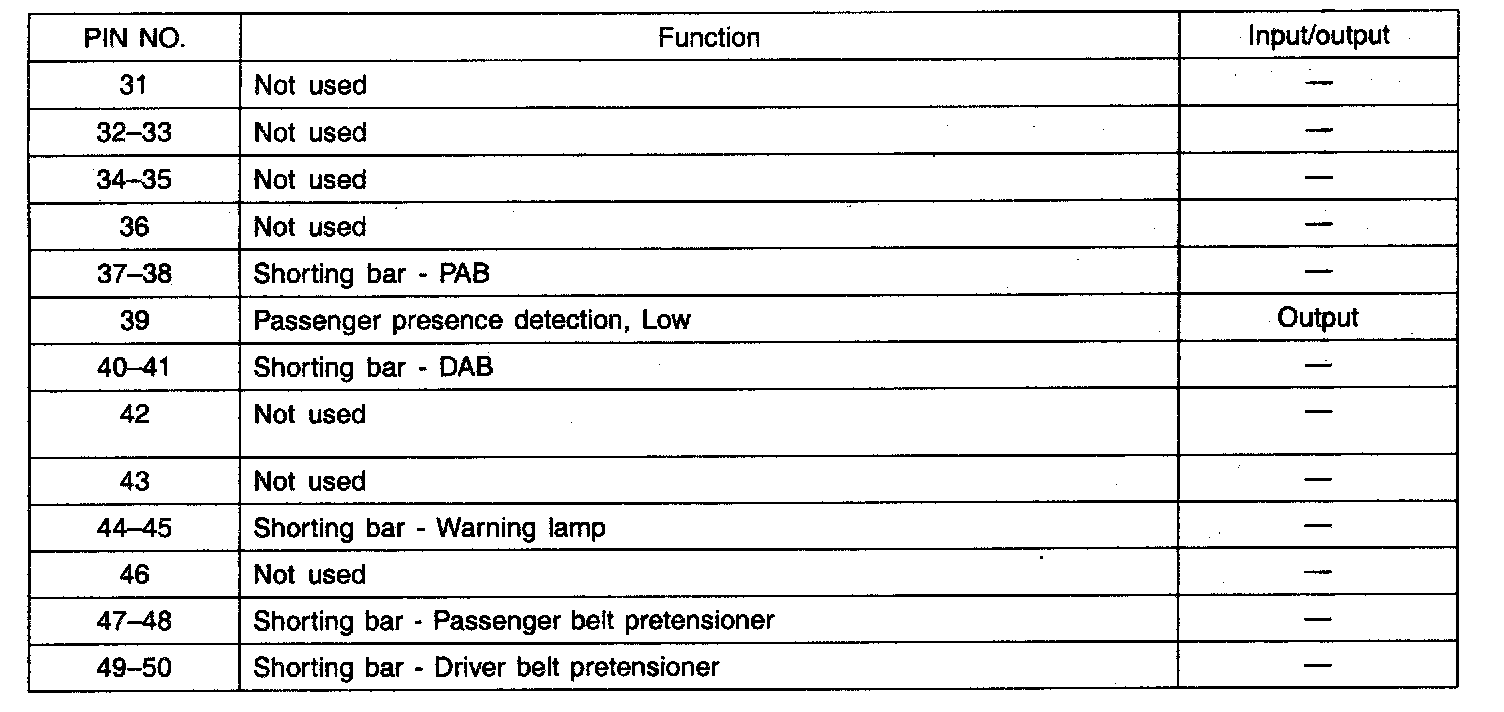

DAB+PAB+BPT Pin No. 31 - 50:

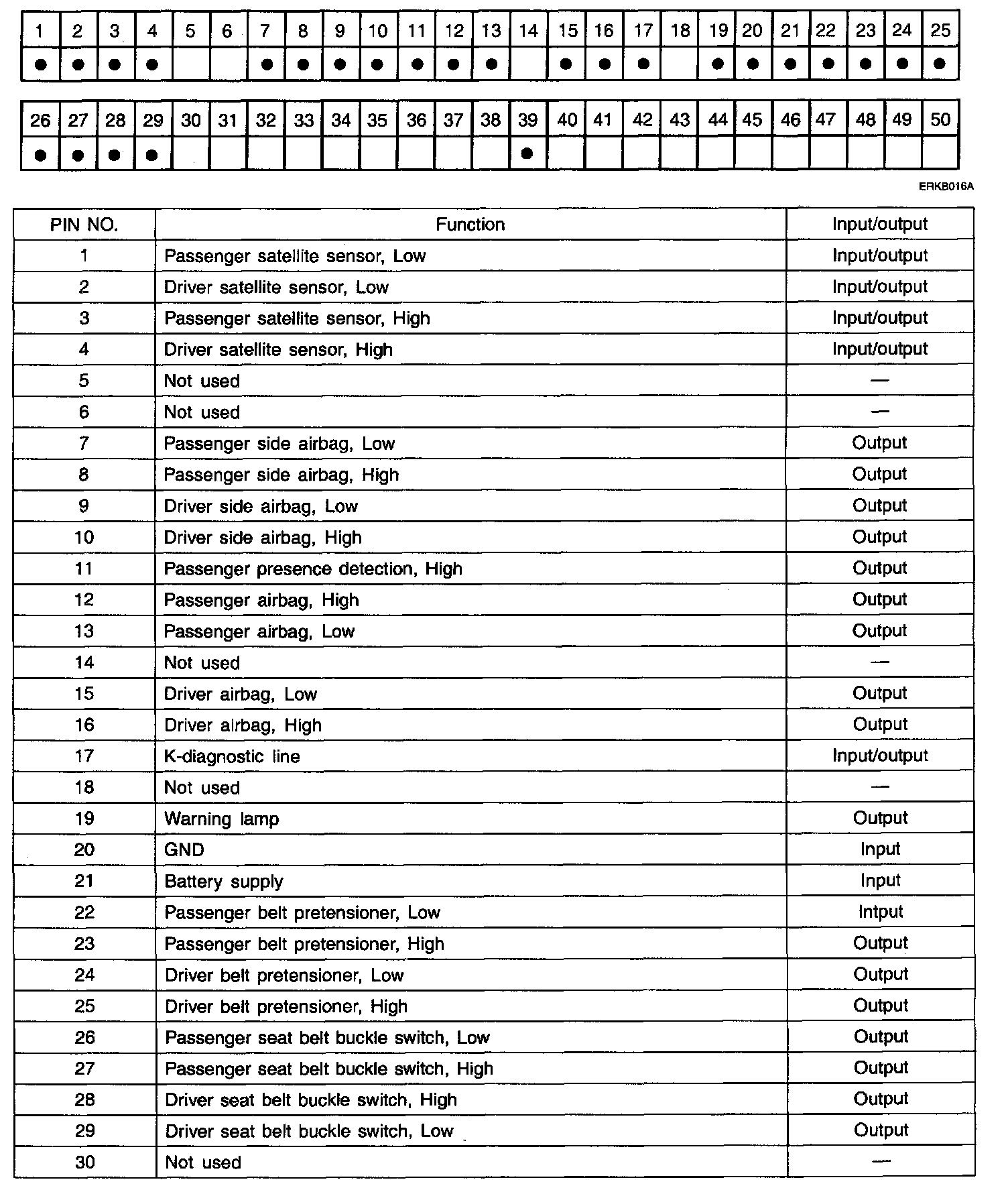

DAB+PAB+SAB+BPT Pin No. 1 - 30:

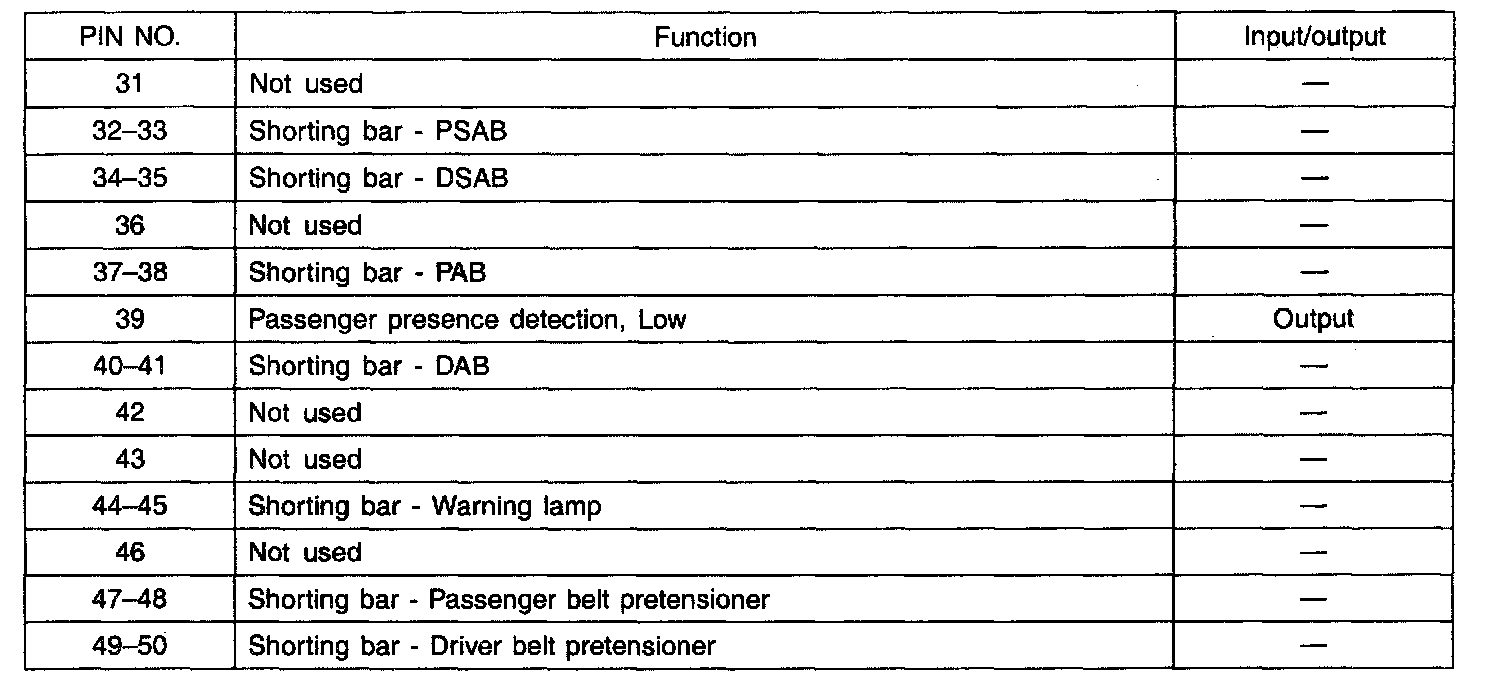

DAB+PAB+SAB+BPT Pin No. 31 - 50:
