Ignition Cable: Testing and Inspection

CHECKING SPARK PLUG CABLES

1. Check the cap and outer shell for cracks.

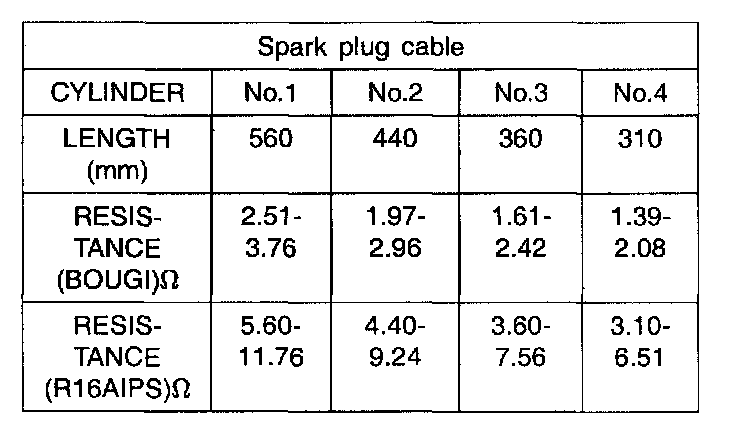

2. Measure the resistance









NOTE: Resistance should not be higher than 10,000 ohm per foot of cable. If resistance is higher, replace the cable.
