Home >> Hyundai >> 2002 >> XG 350 V6-3.5L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Memory Positioning Systems

Memory Positioning Systems

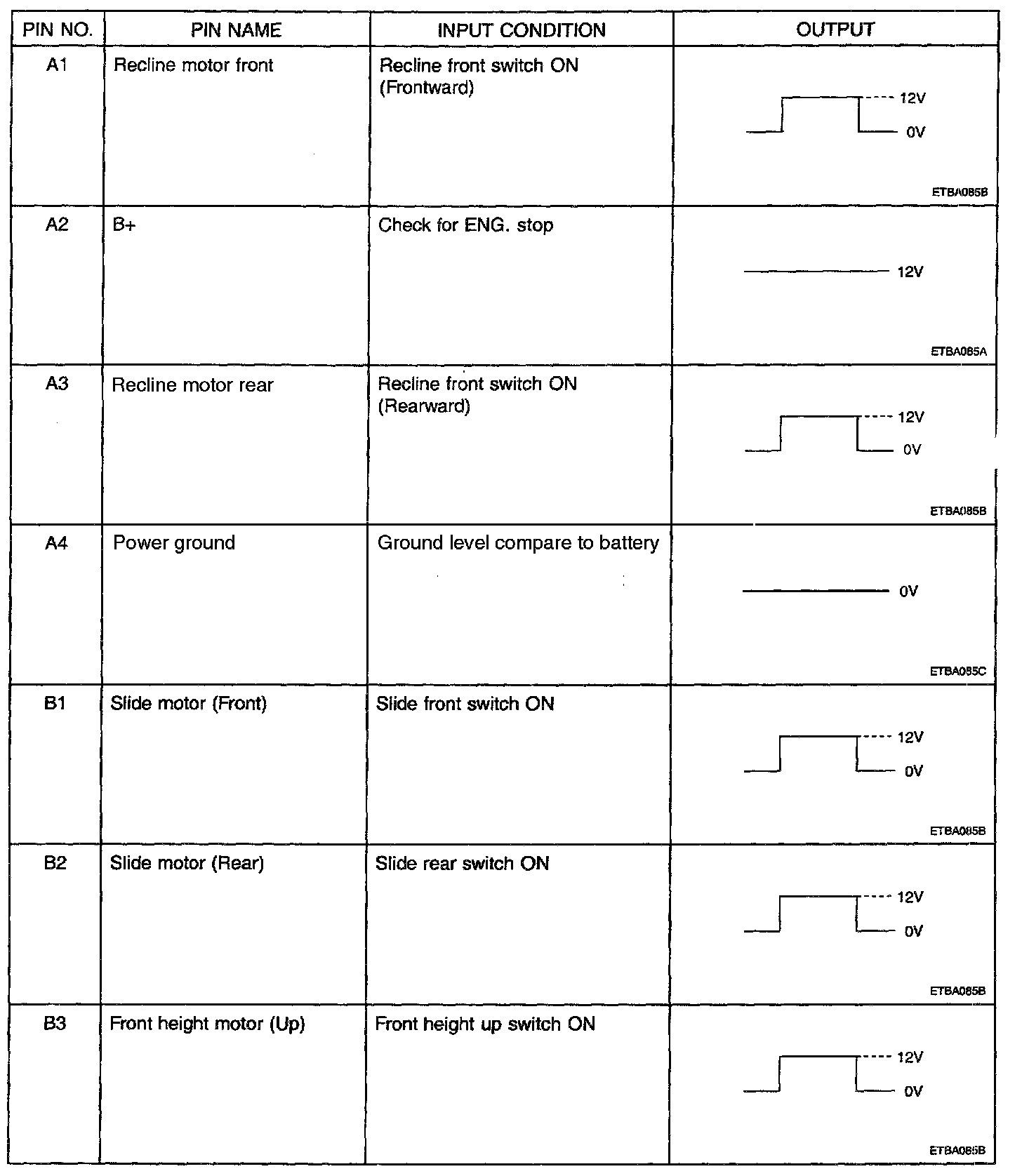

Output Pulse Part 1:

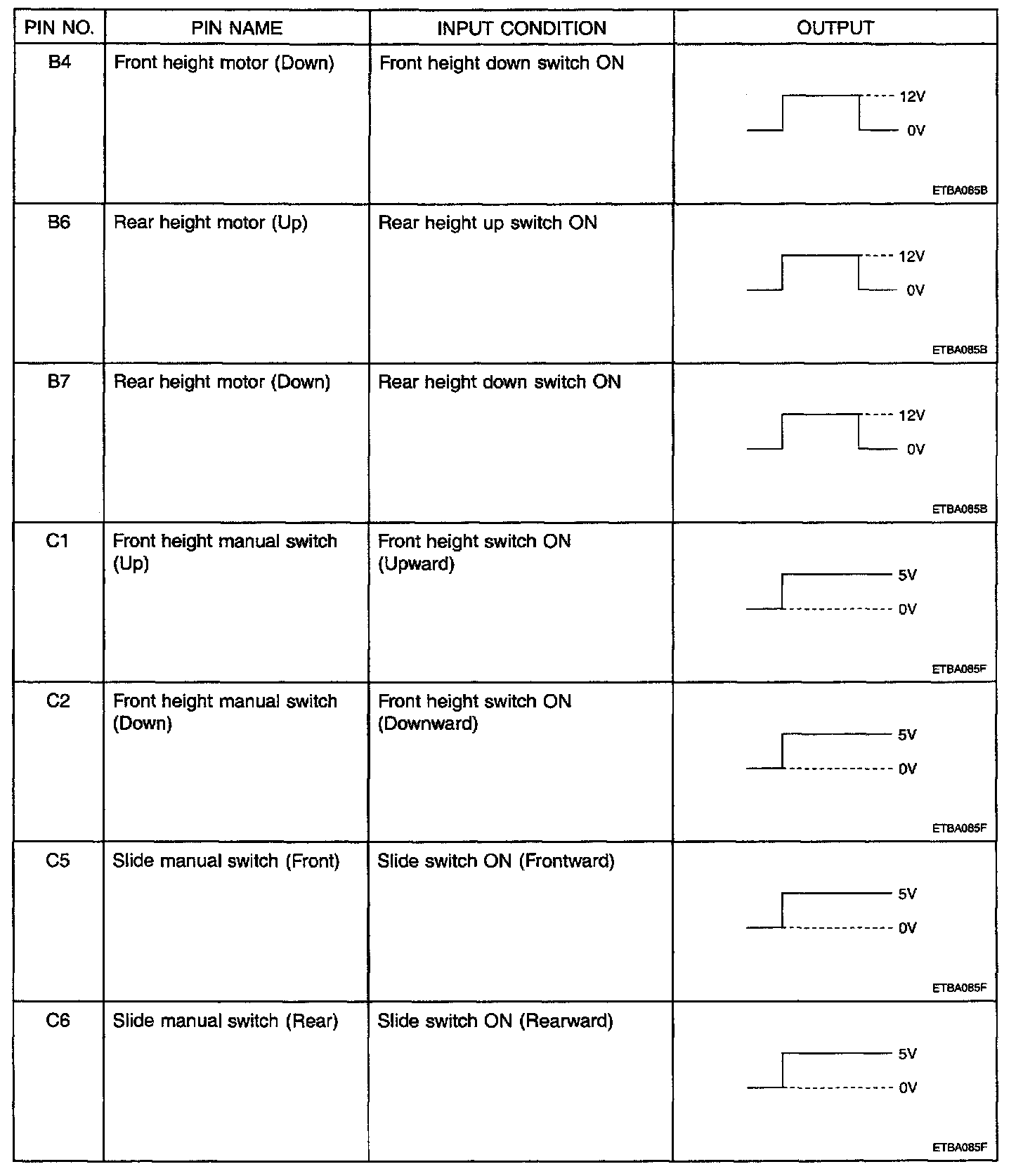

Output Pulse Part 2:

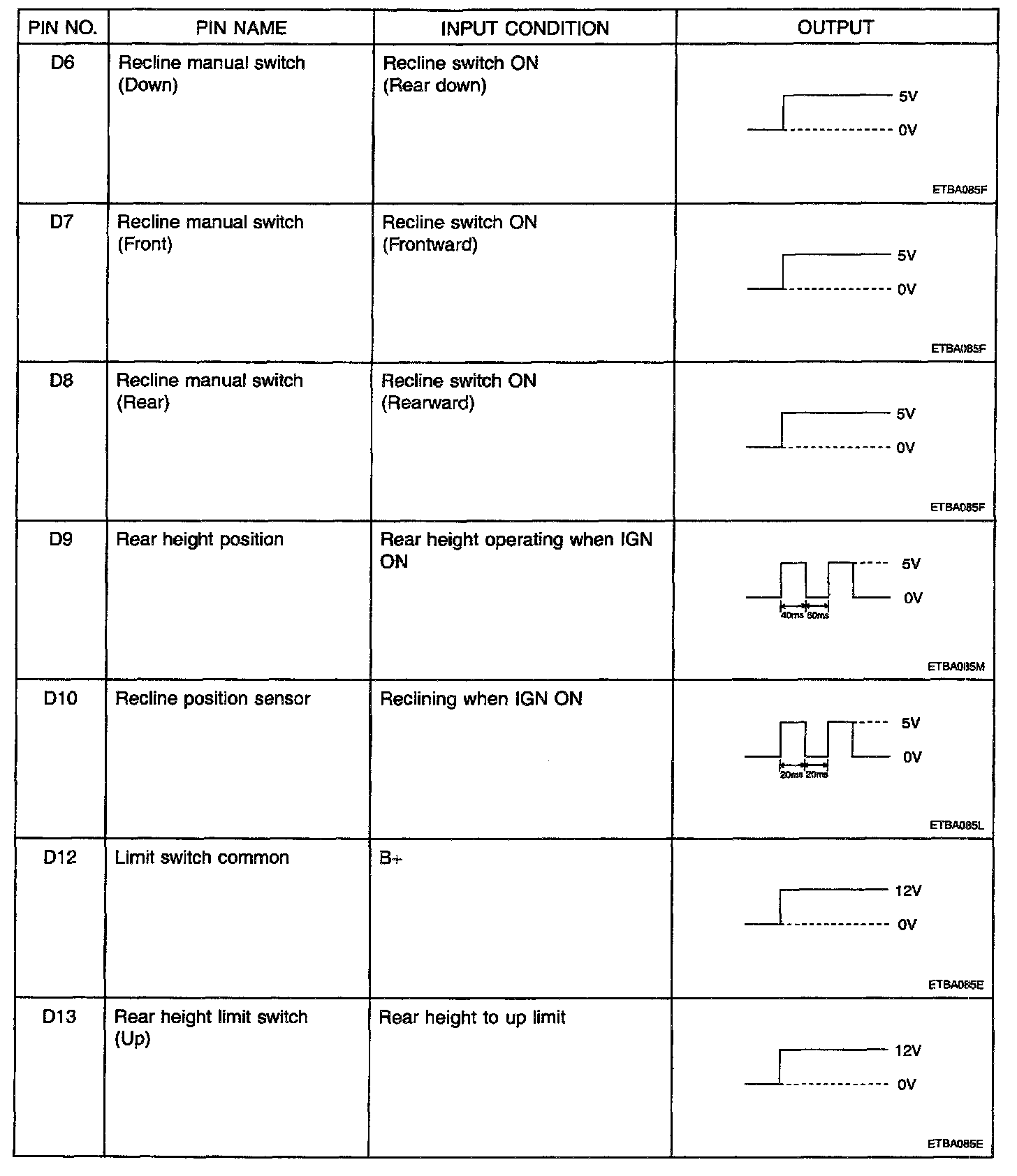

Output Pulse Part 3:

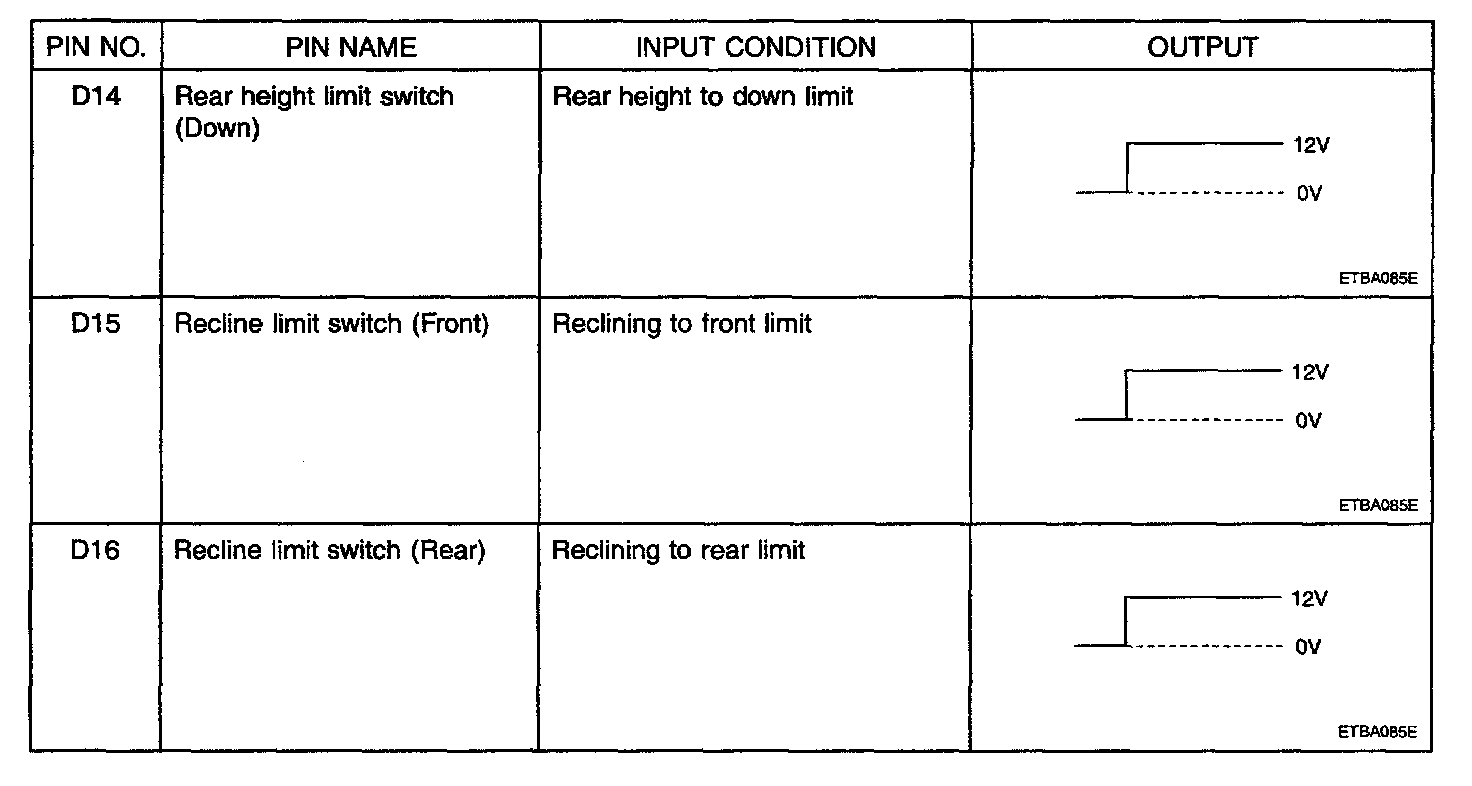

Output Pulse Part 4:

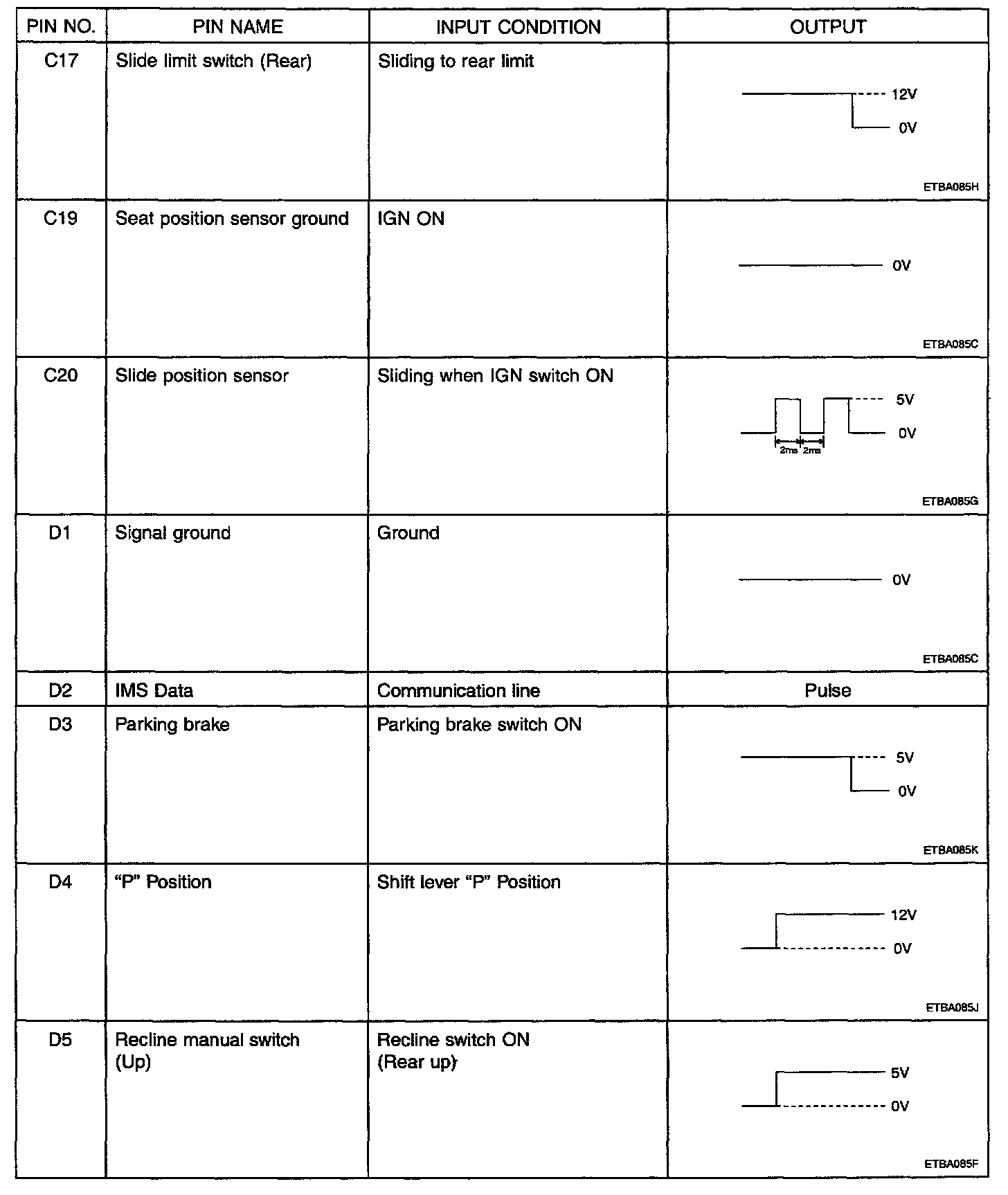

Output Pulse Part 5:

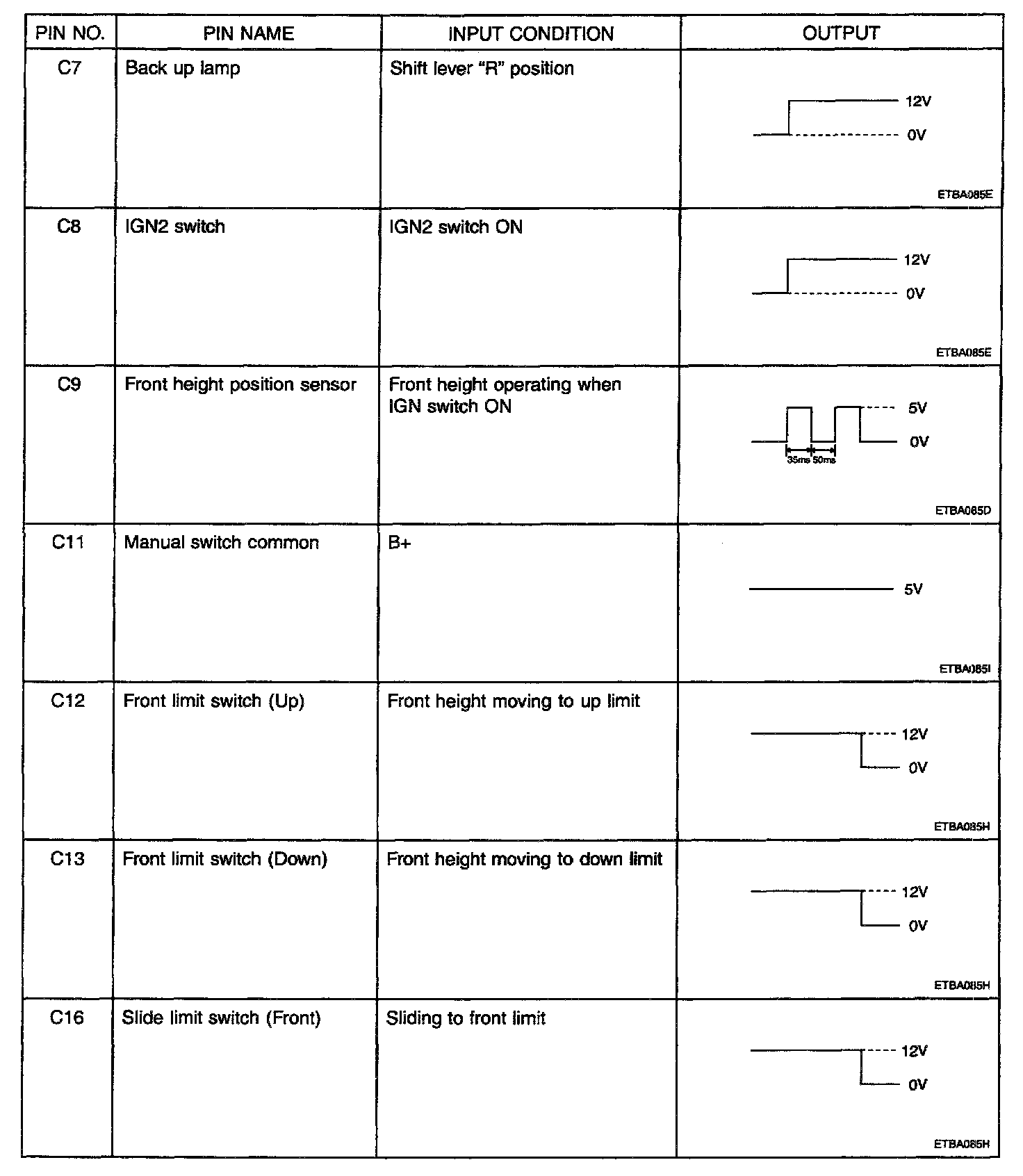

Output Pulse Part 6:
