Engine Control Module: Diagrams

PCM Configuration:

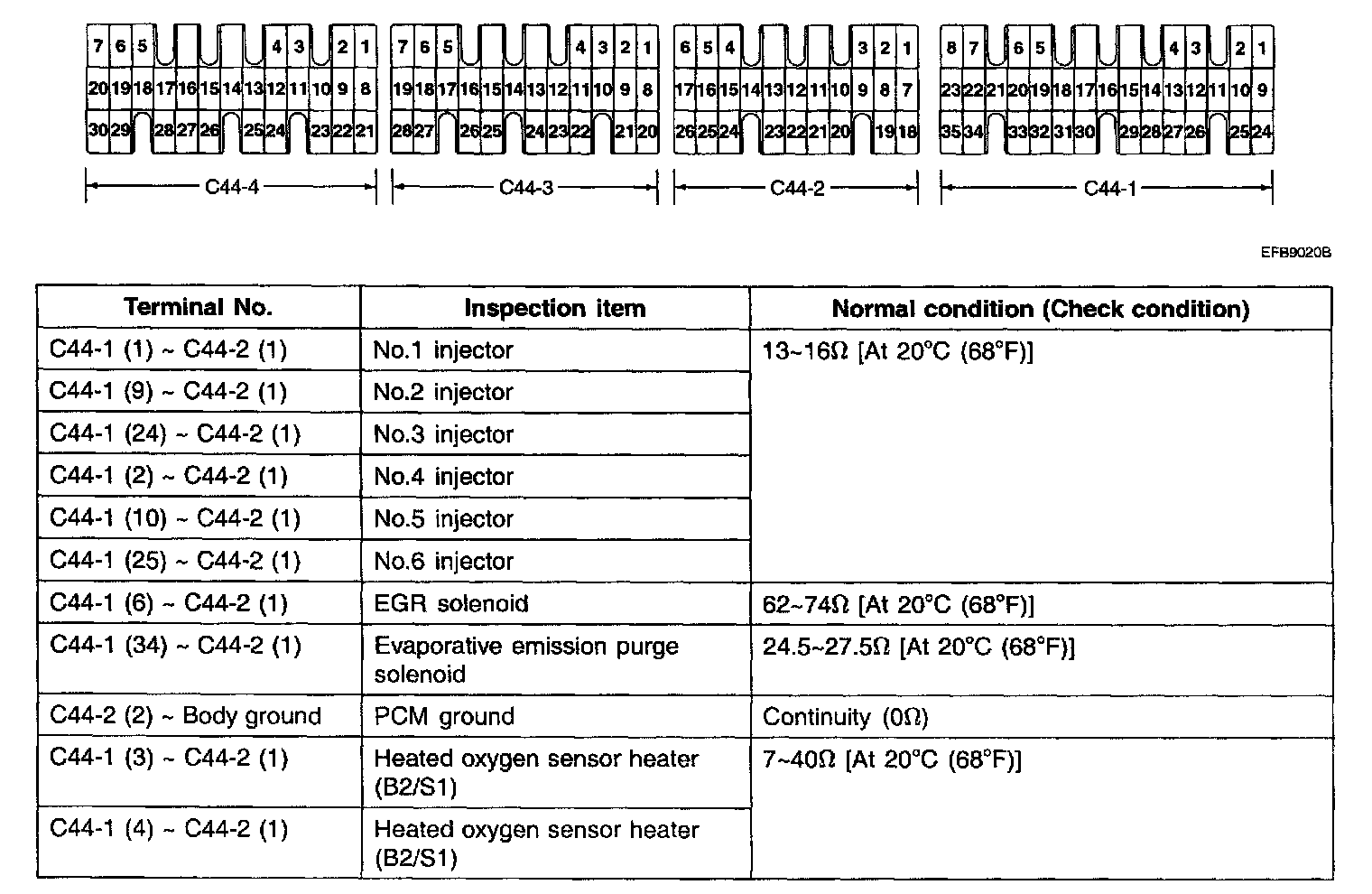

Power-Train Control Module(PCM) Connector Terminal Arrangement Part 2:

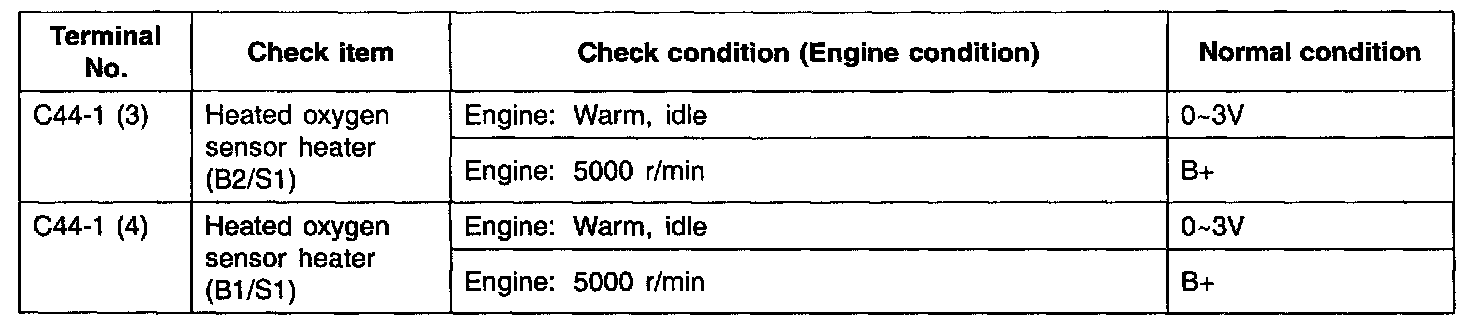

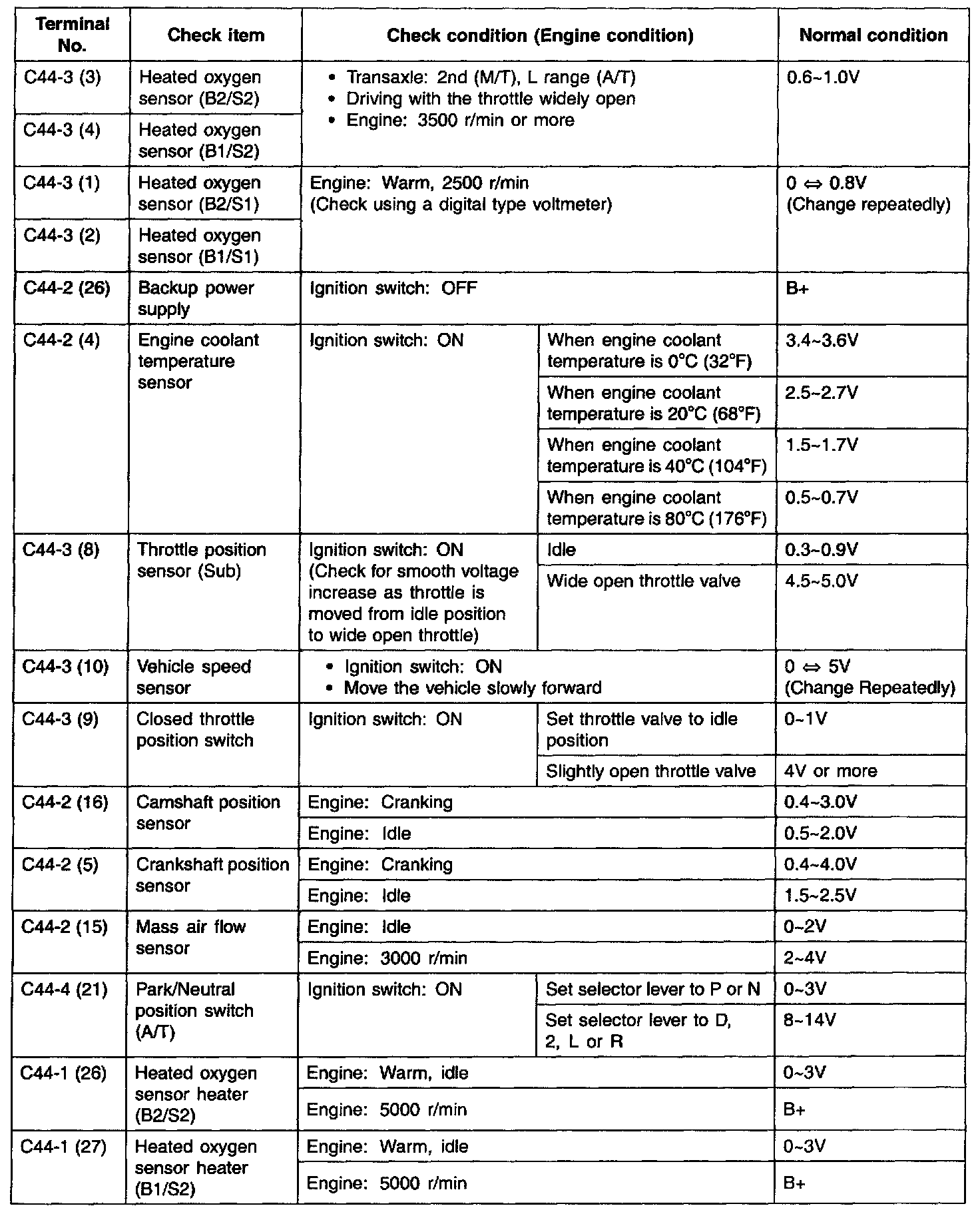

Power-Train Control Module(PCM) Connector Terminal Arrangement Part 3:

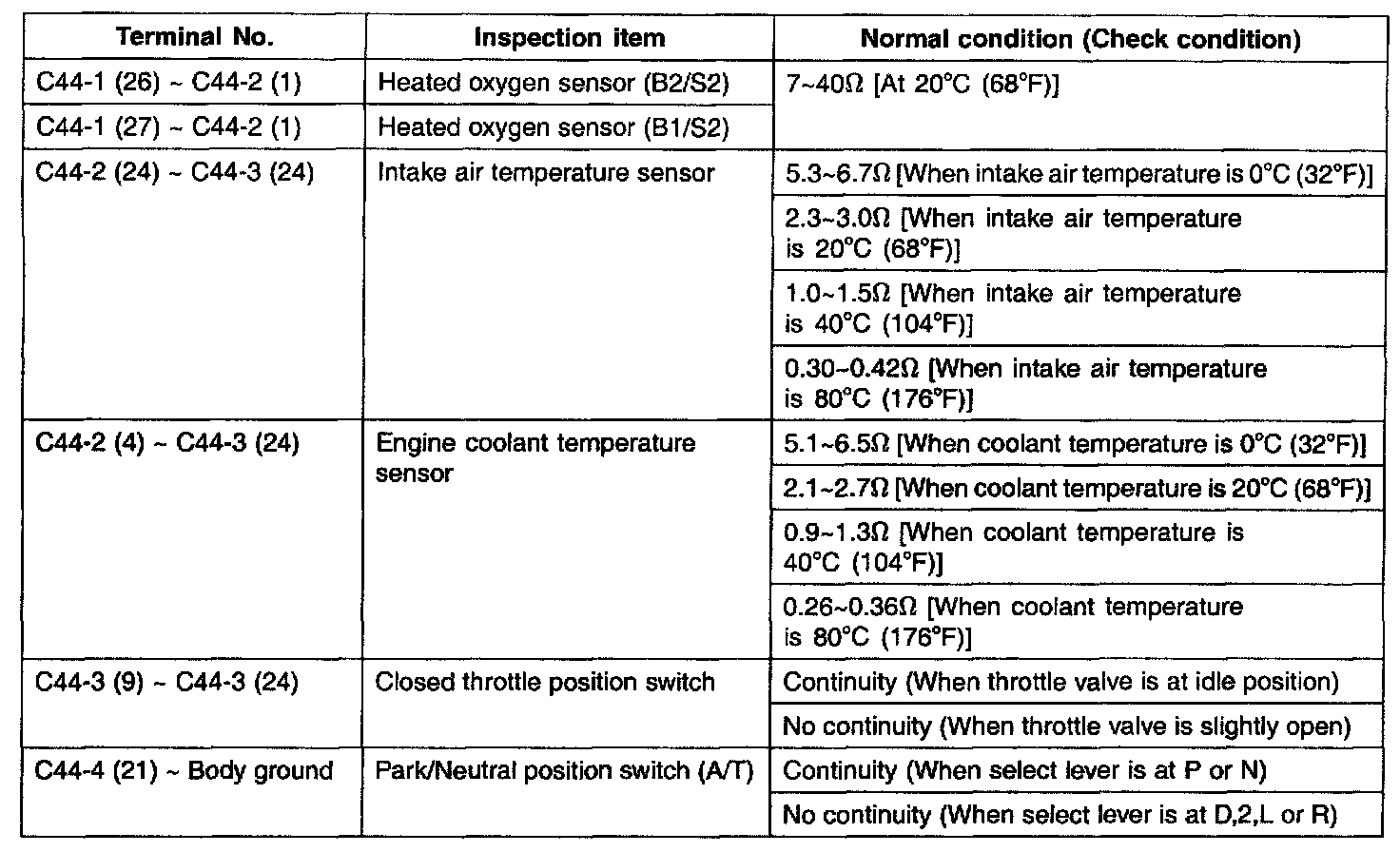

Power-Train Control Module(PCM) Connector Terminal Arrangement Part 4:
