Timer/Control Unit, Accessory Control
Timer/Control Unit, Accessory Control

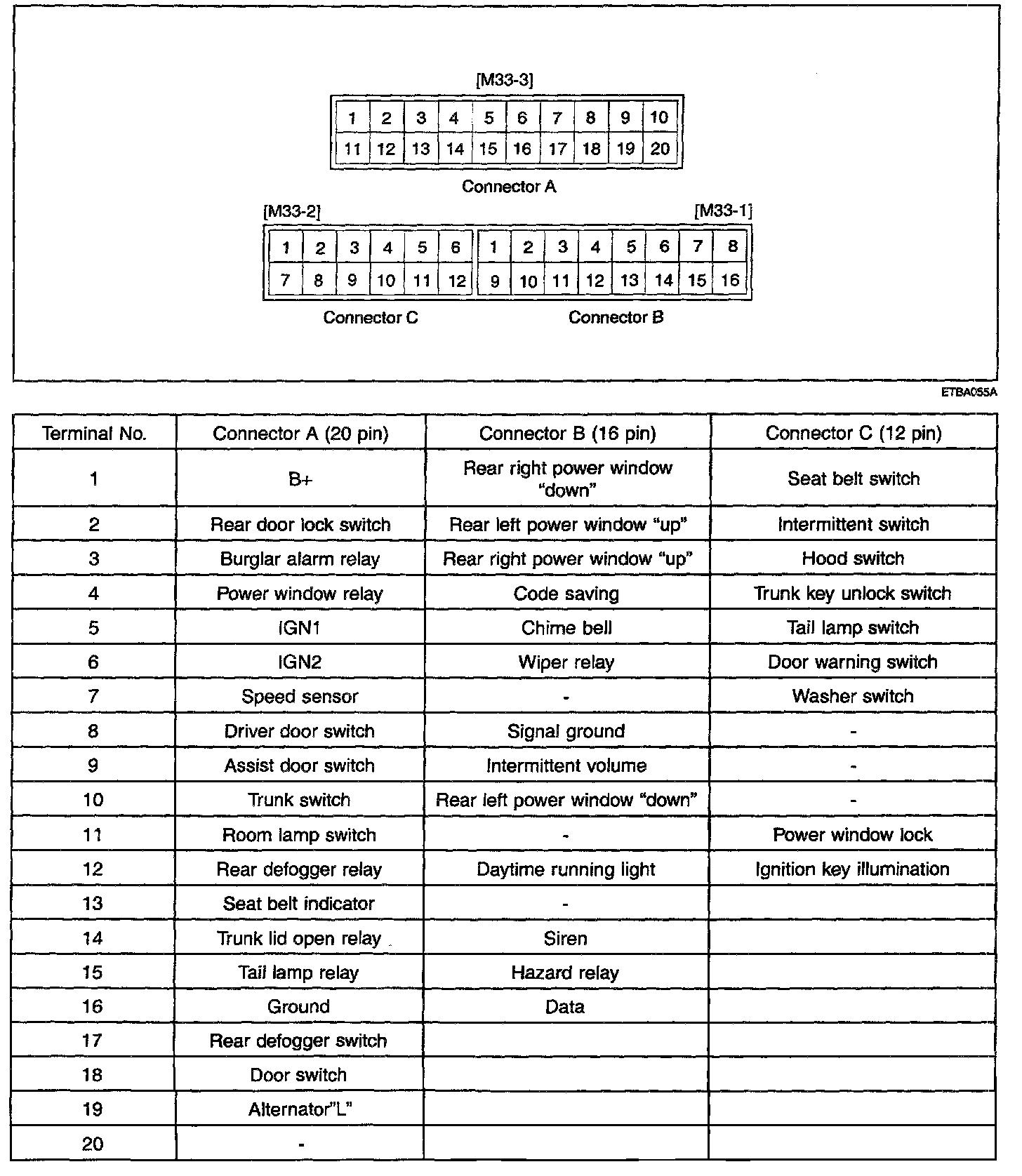

ETACS CM Pin Connection:
