Home >> Hyundai >> 2002 >> Sonata L4-2.4L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Relay Box

Relay Box

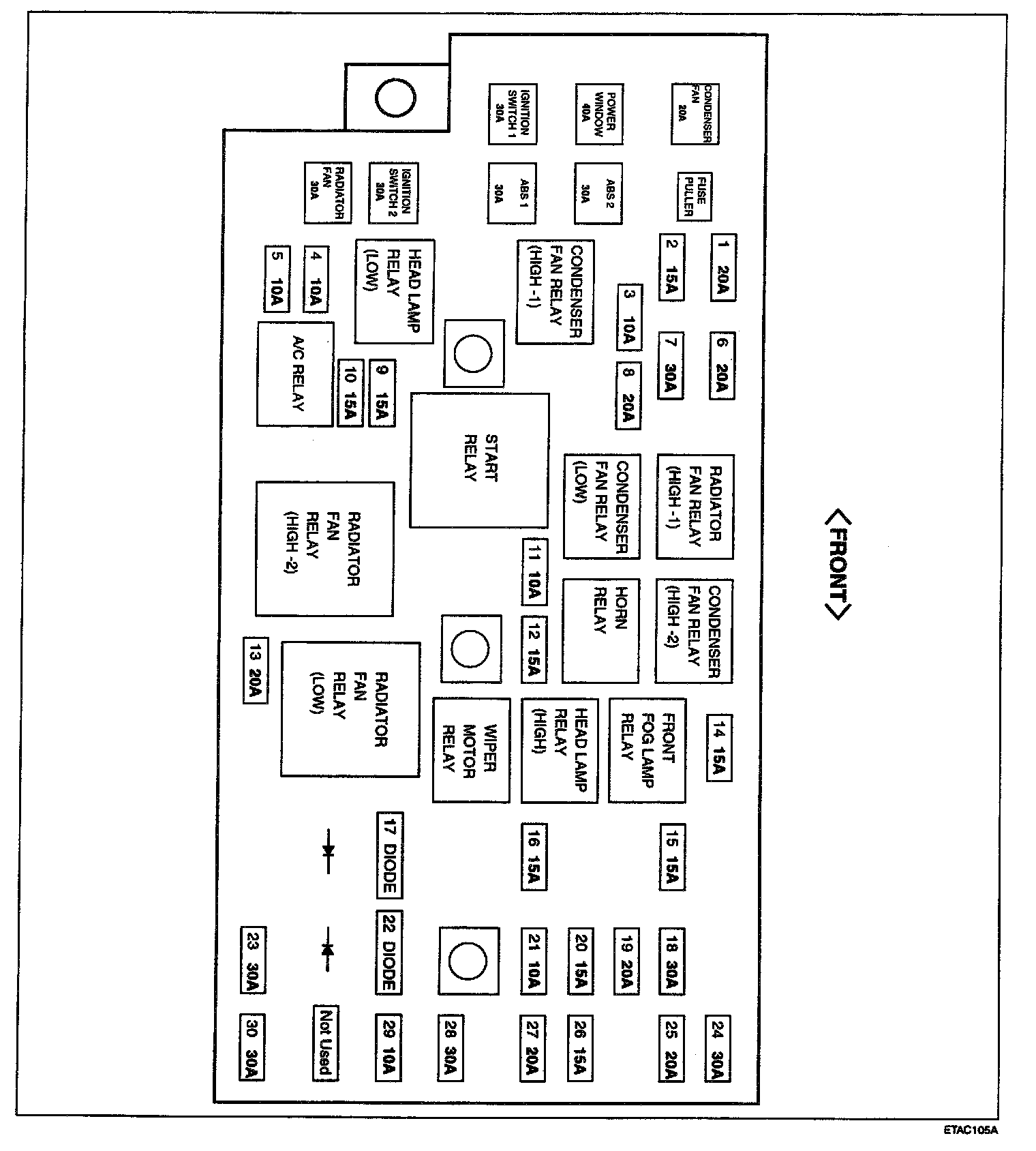

Relay Box (Engine Compartment):

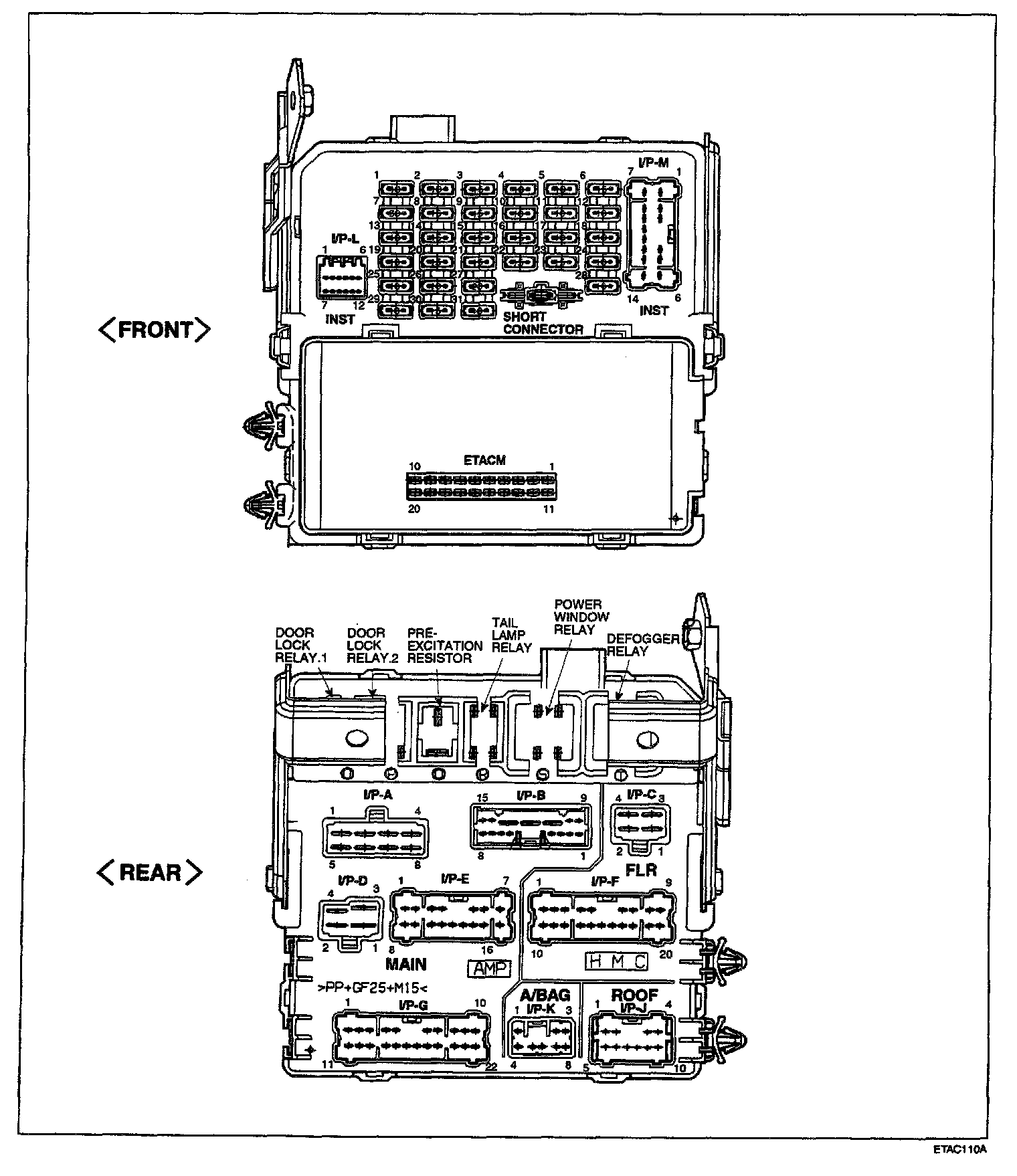

Relay Box (Passenger Compartment):
