Connector Locations

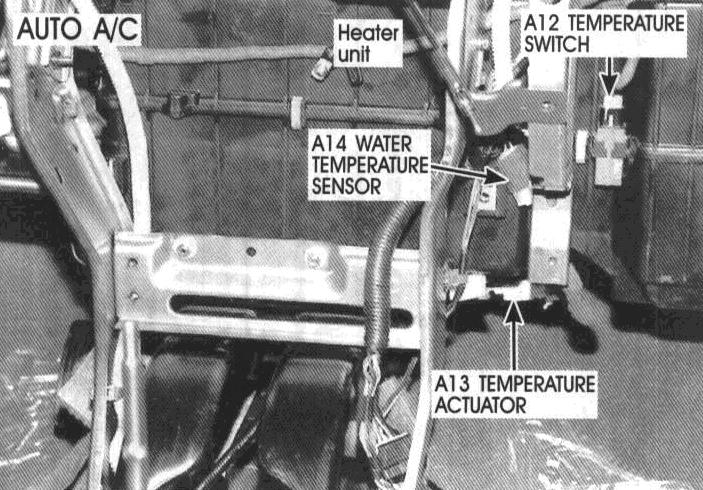

A12 Thermostatic Switch, A13 Temperature Actuator, A14 Water Temperature Sensor:

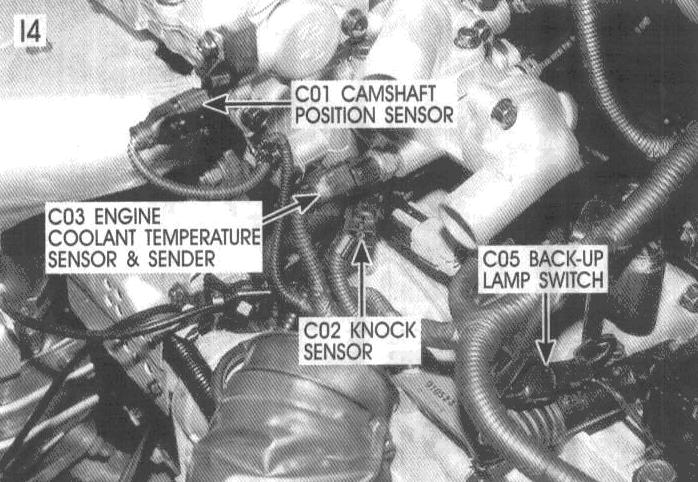

C01 Camshaft Position, C02 Knock Sensor, C03 Engine Coolant Temperature Sensor & Sender, C05 Back-up Lamp Switch:

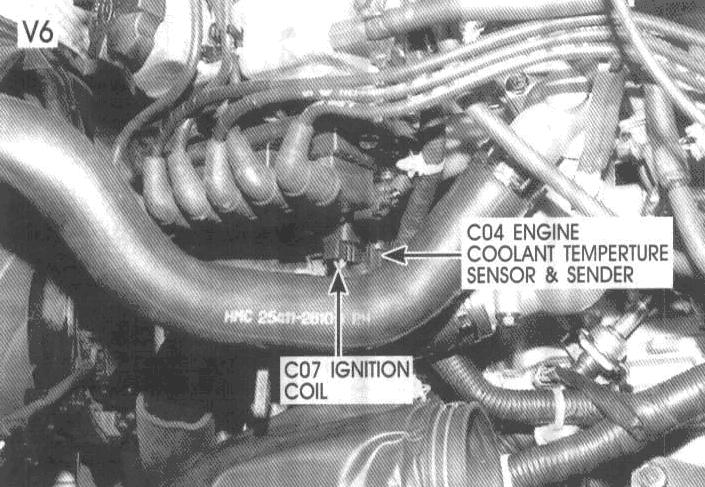

C04 Engine Coolant Temperature Sensor & Sender, C07 Ignition Coil:
