Home >> Hyundai >> 2002 >> Santa Fe L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Heater Core Case

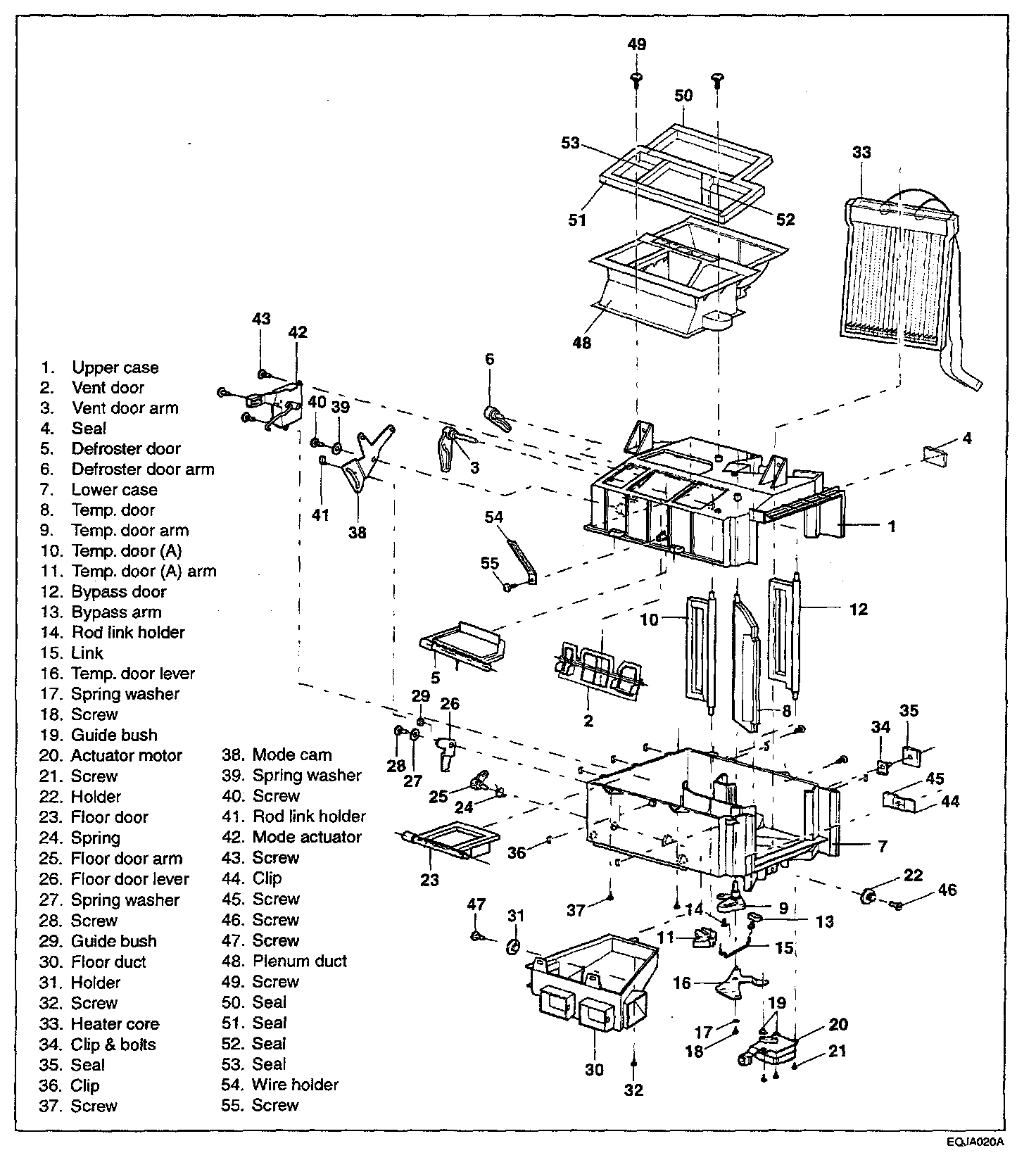

Heater Core Case

Heater Unit (Rotary + Push):
