General Torque Specifications

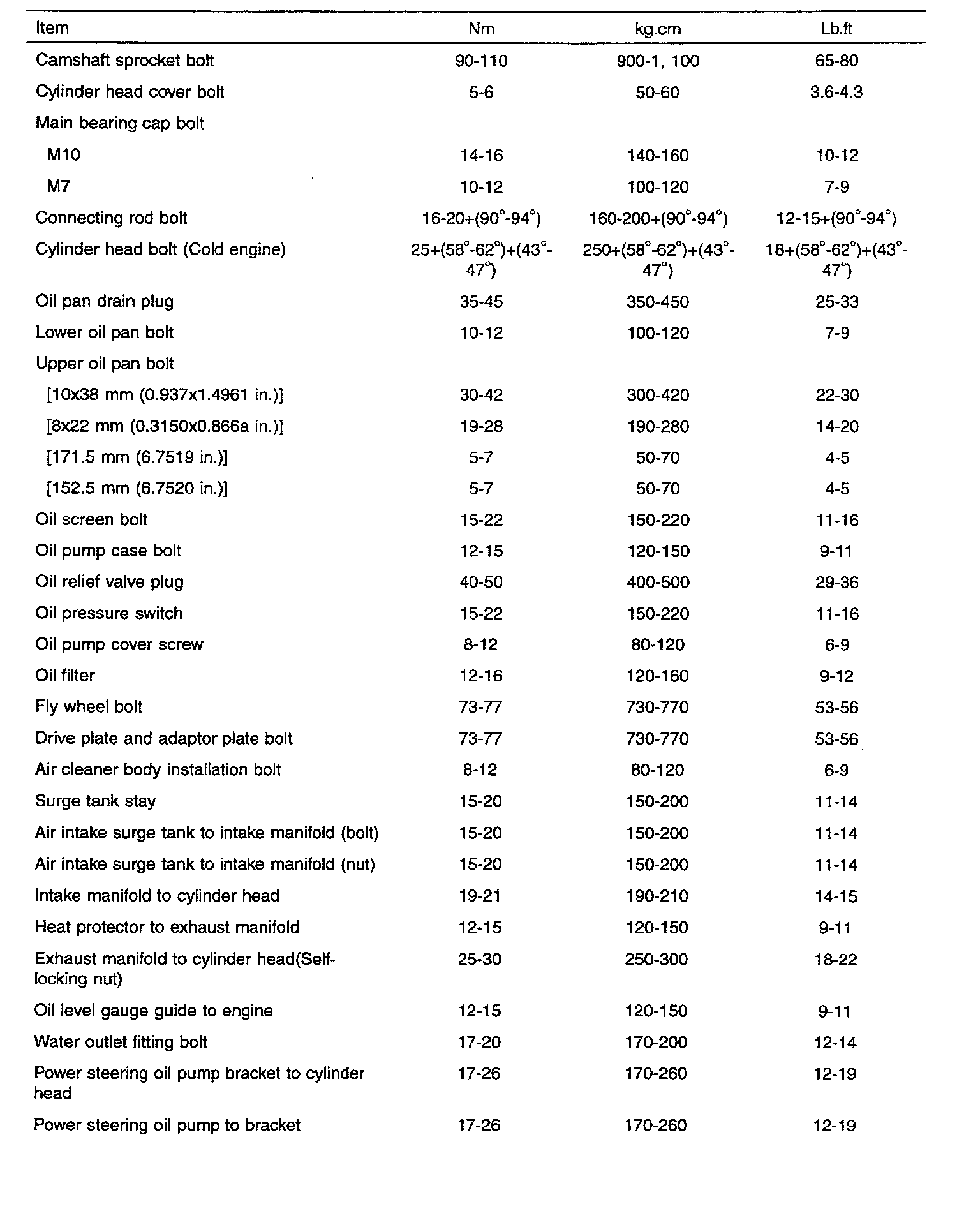

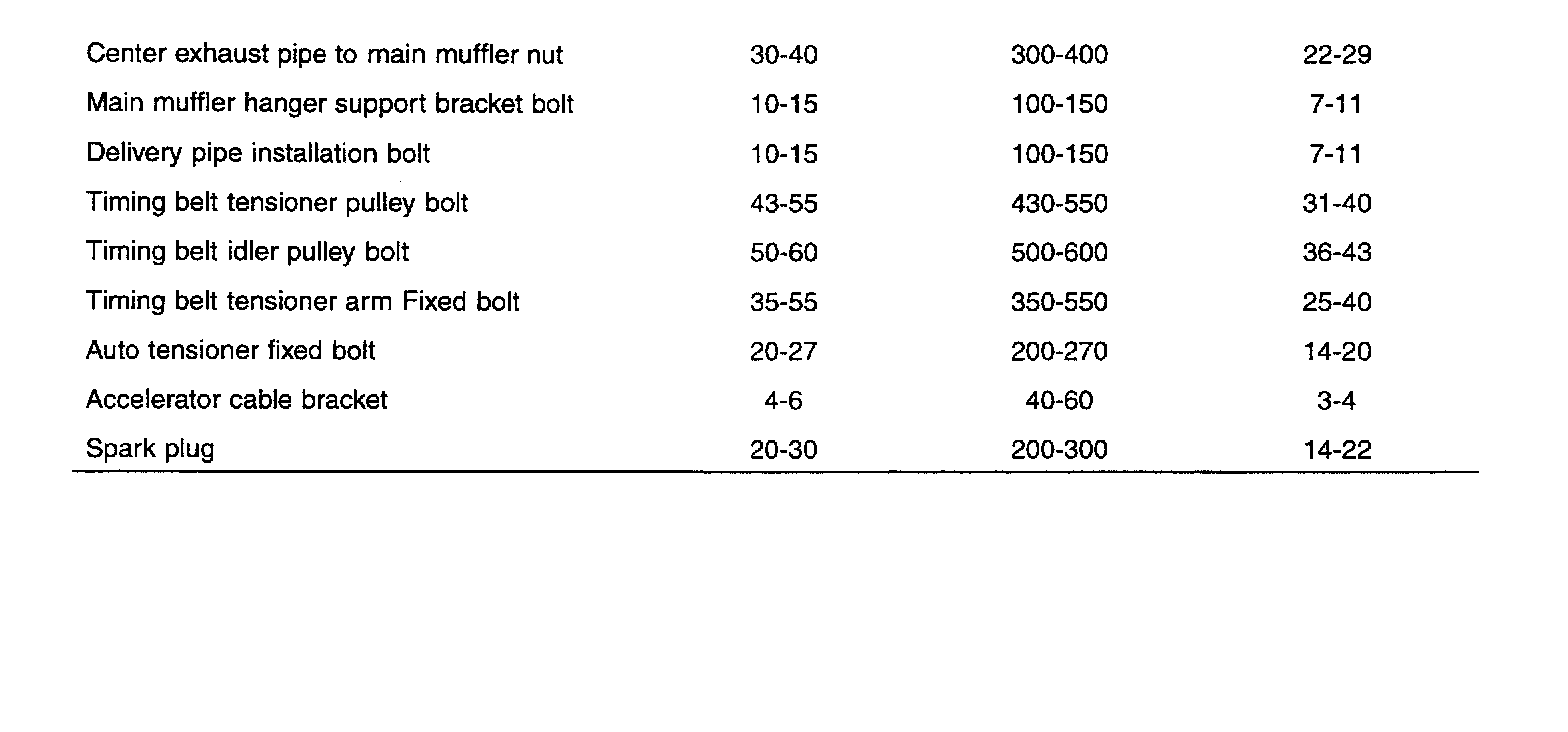

TIGHTENING TORQUE





1 of 3





2 of 3





3 of 3

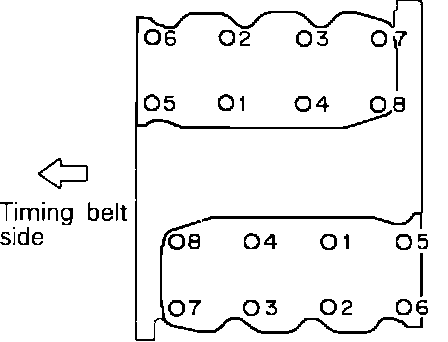

Fig. 14 Cylinder Head Bolt Tightening Sequence:





Cylinder Head Tightening Sequence





Camshaft Bearing Cap Tightening Sequence
