Cylinder Block Specifications

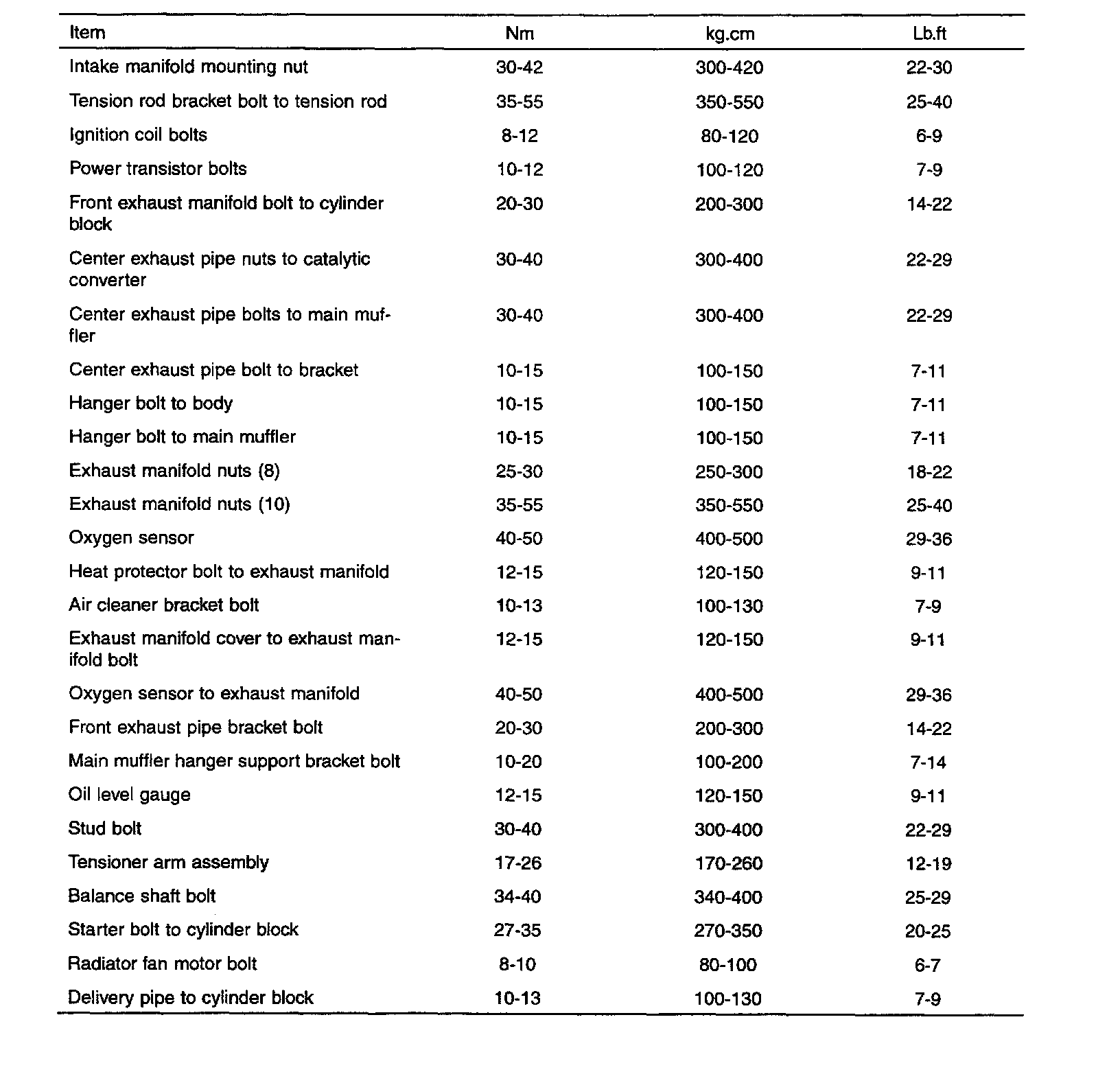

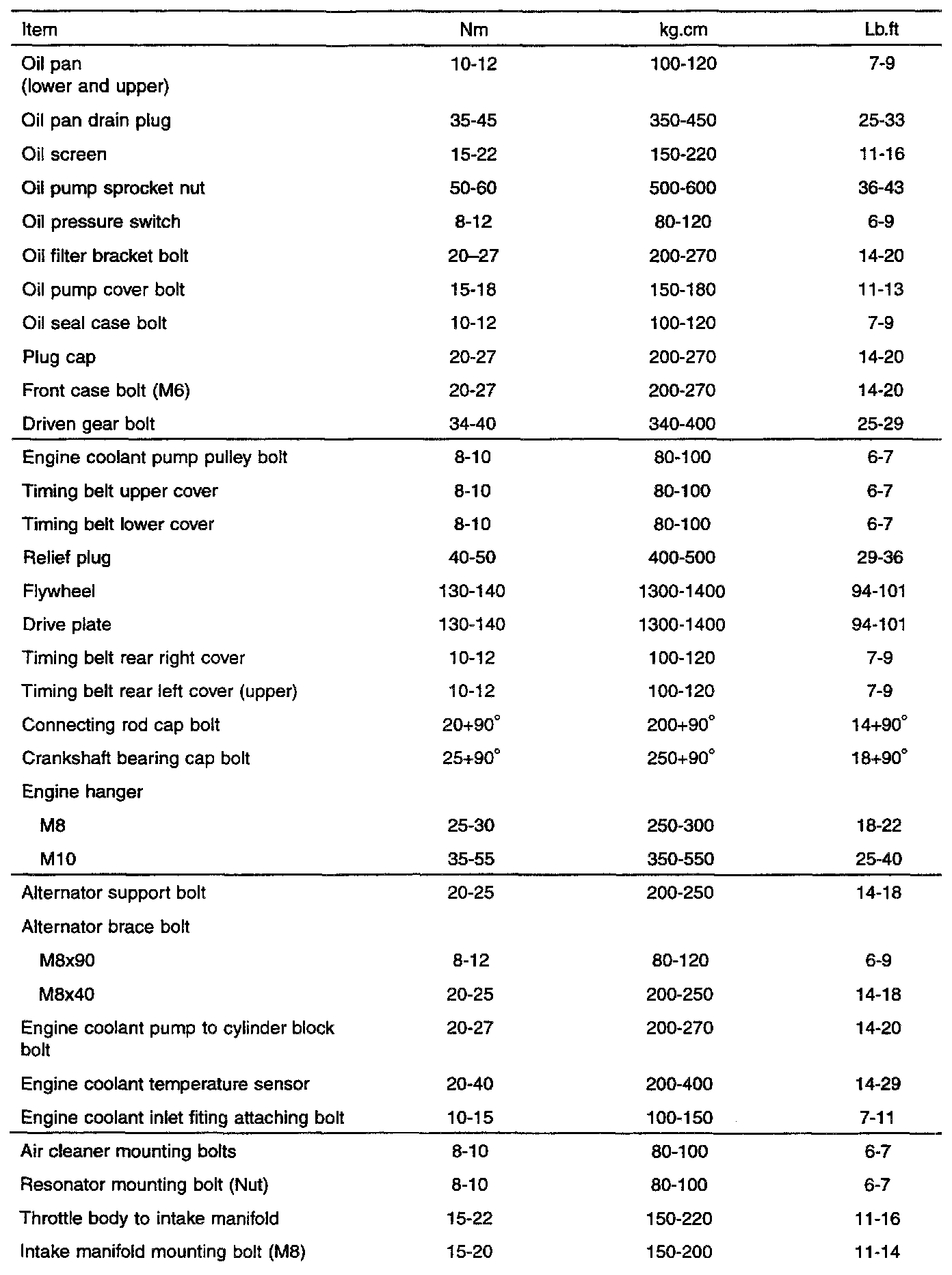

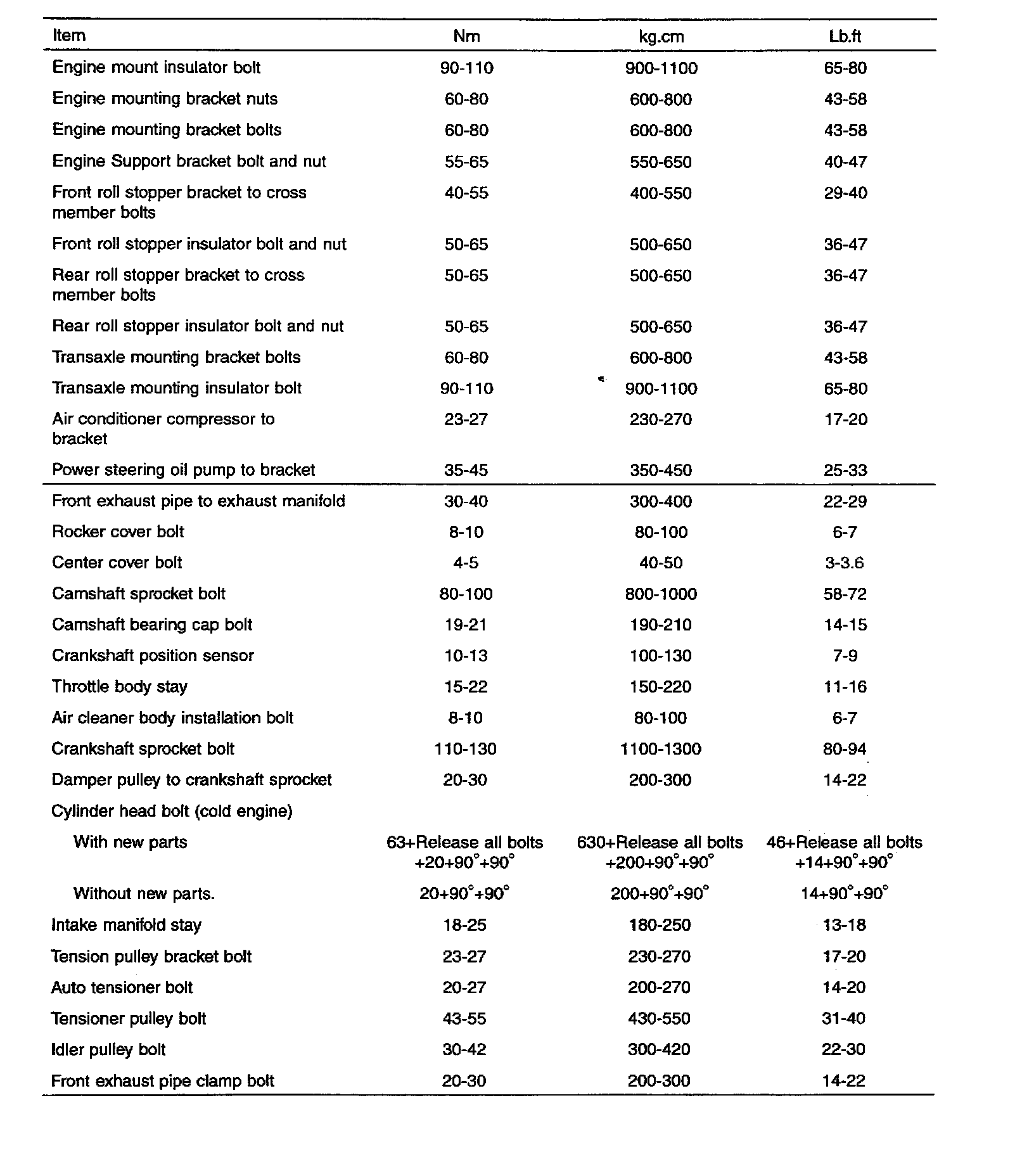

TIGHTENING TORQUE





1 of 3





2 of 3





3 of 3

Tightening Sequence:

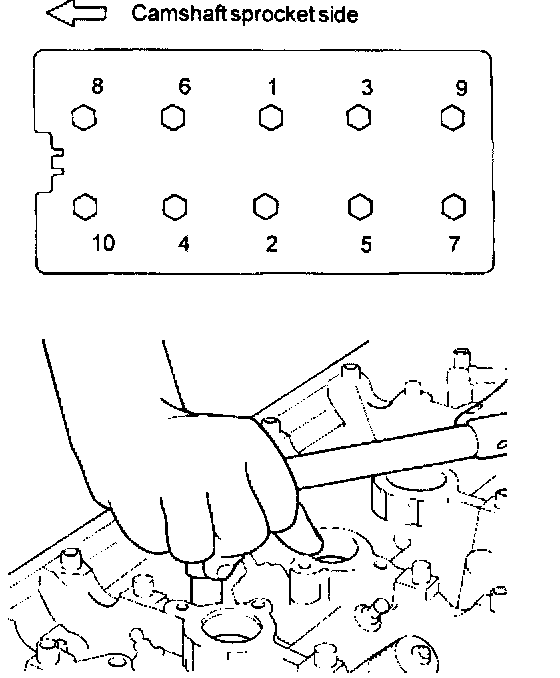

Cylinder Head Tightening Sequence

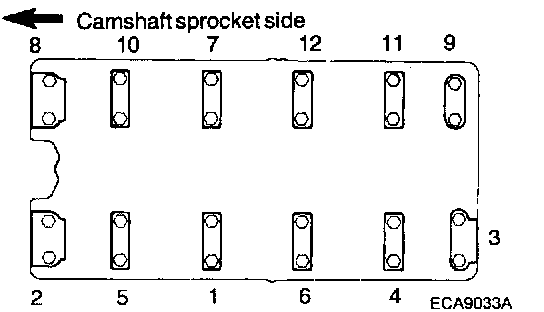

Camshaft Bearing Cap Tightening Sequence
