Differential Technical Data

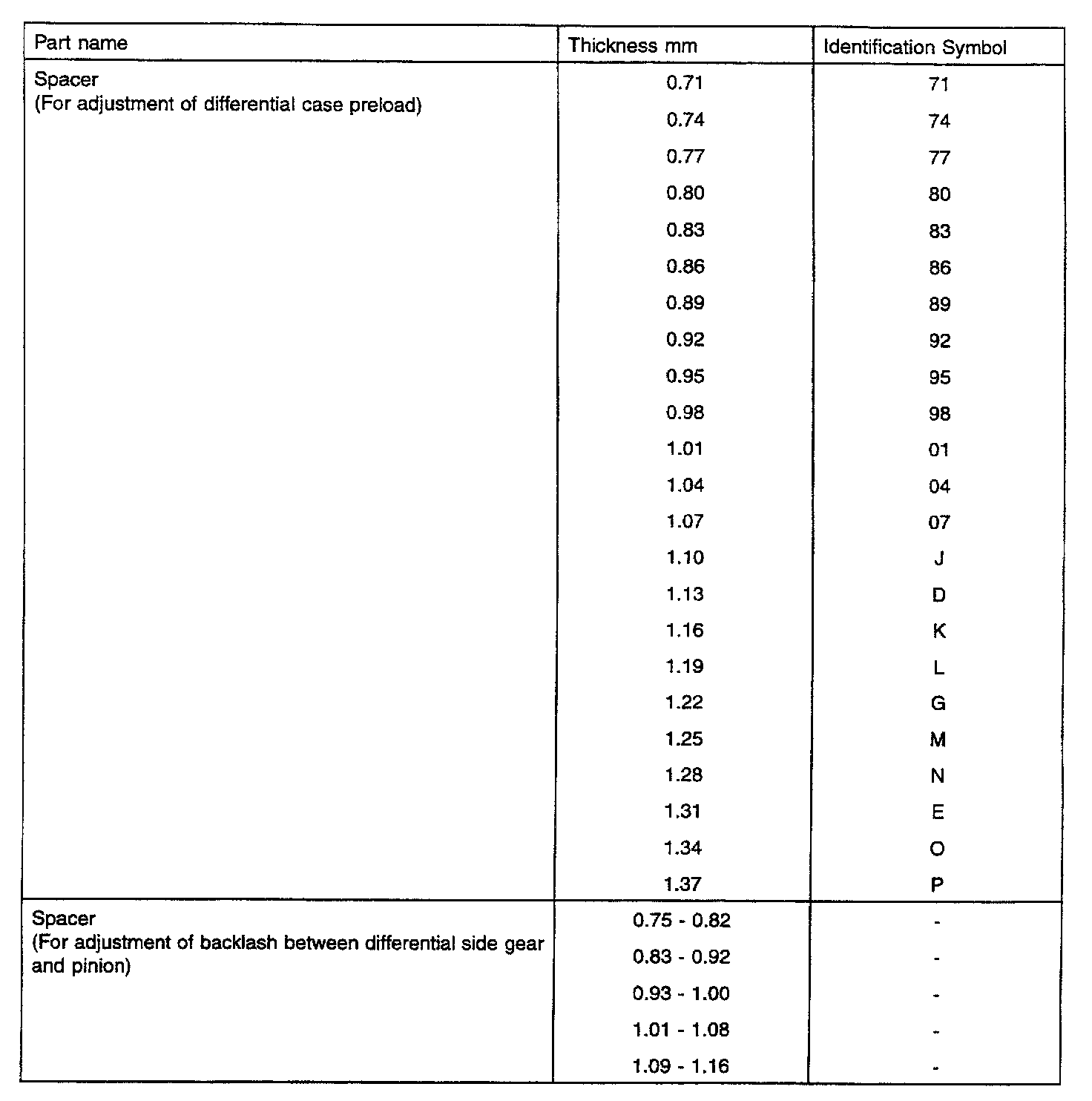

F4A51 4-spd A/T, Transmission Differential Case Preload & Backlash:

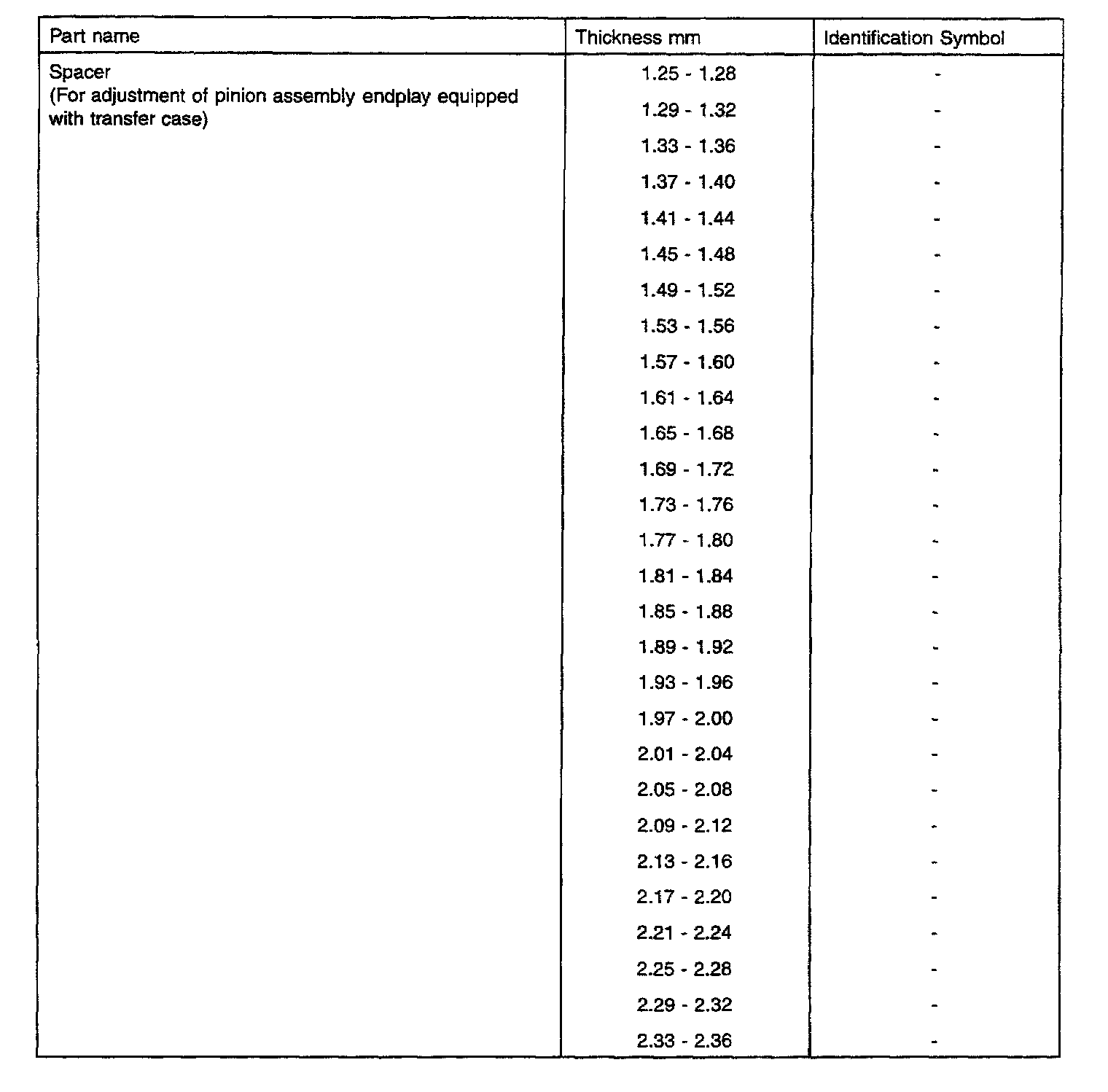

F4A51 4-spd A/T, Pinion Assembly End Play With Transfer Case:

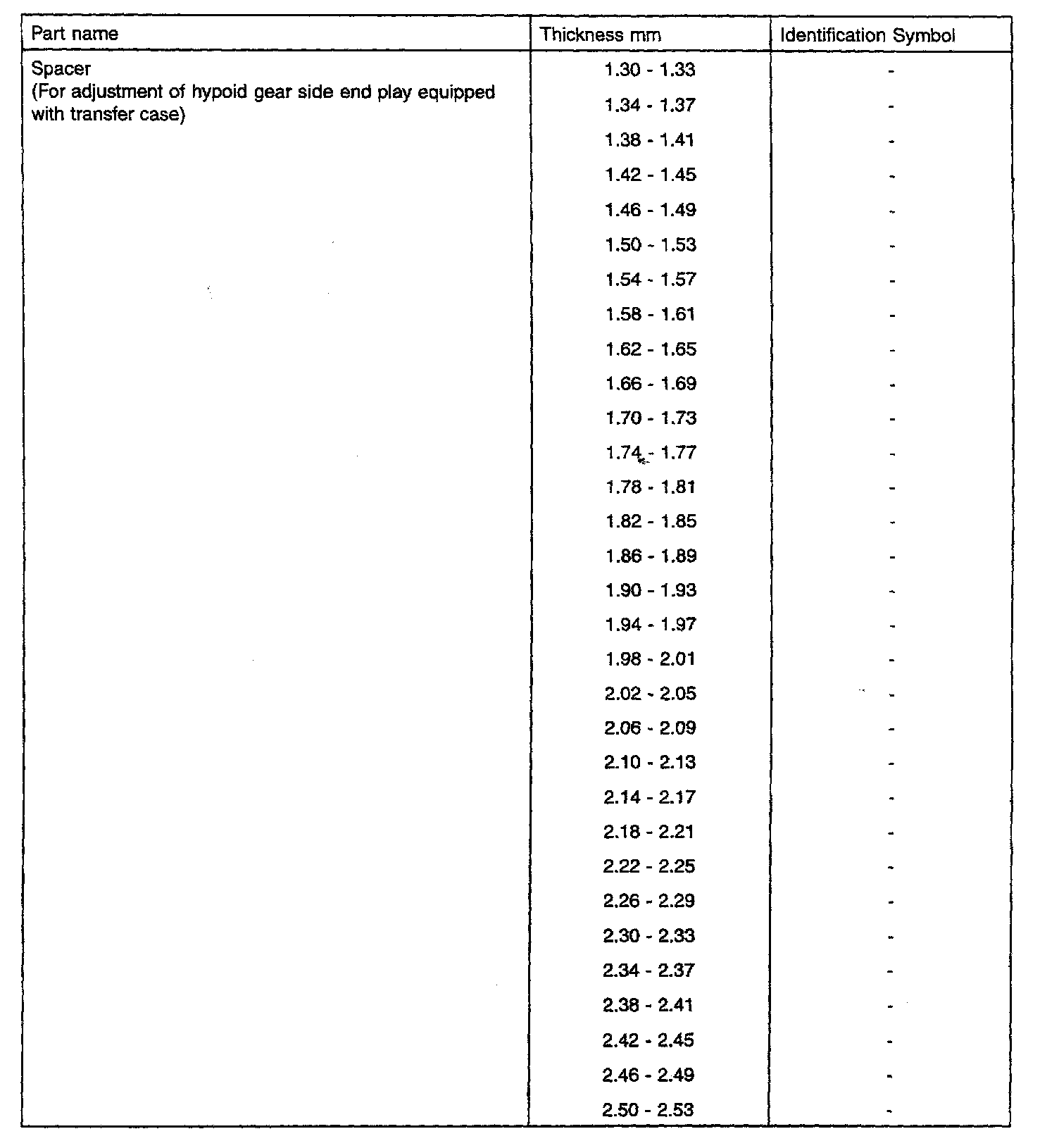

F4A51 4-spd A/T, Hypoid Gear End Play With Transfer Case:

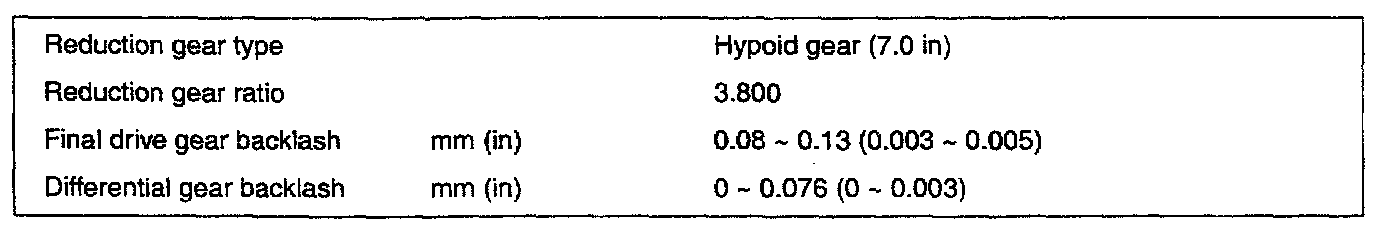

M/T & A/T Differential Unit Measurements:
