Home >> Hyundai >> 2000 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Relays and Modules - Computers and Control Systems >> Engine Control Module >> Locations

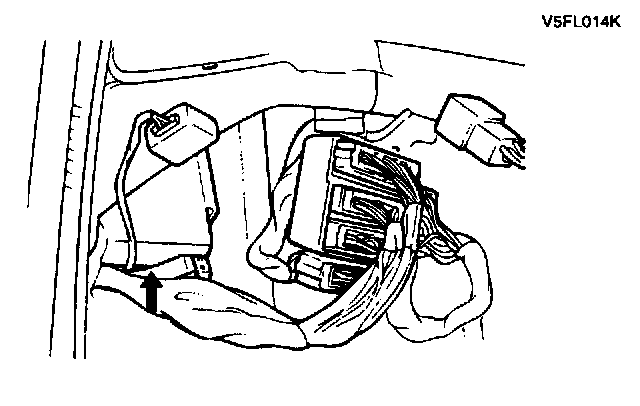

Engine Control Module: Locations

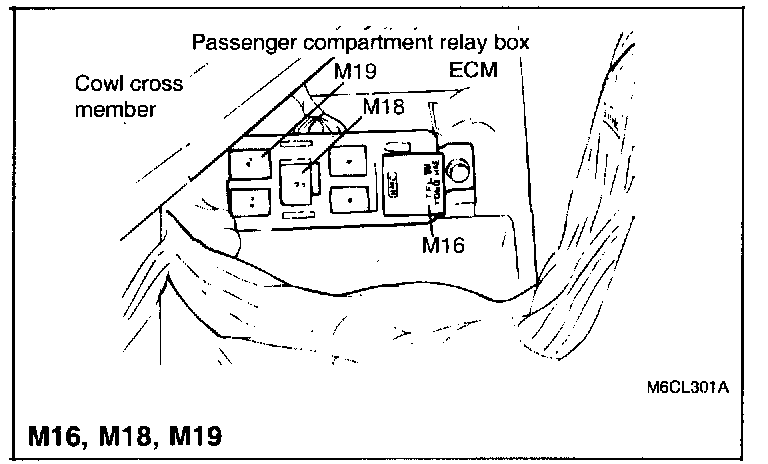

M16 Flasher unit, M18 Fuel pump relay, M19 Power window relay:

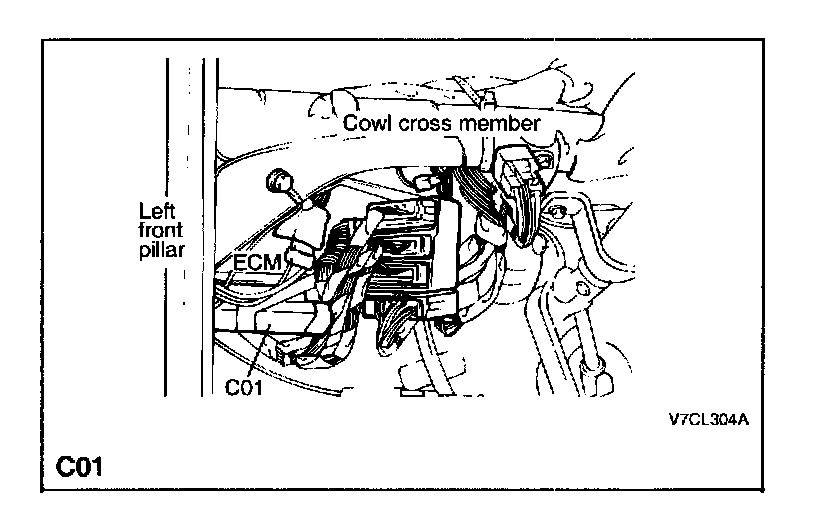

C01 ECM:

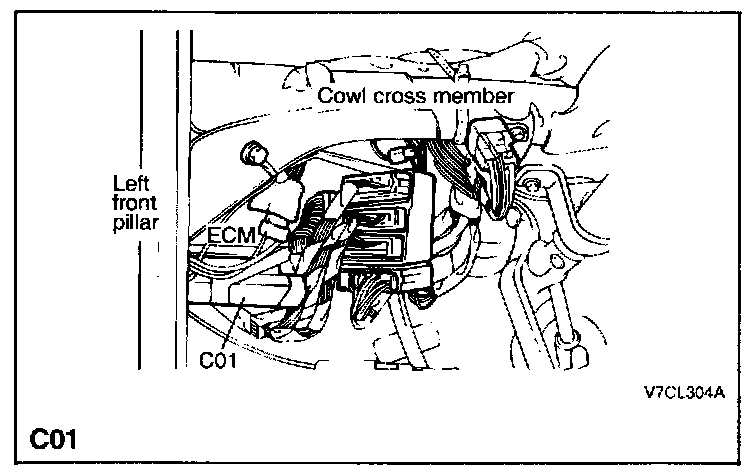

C01 ECM:

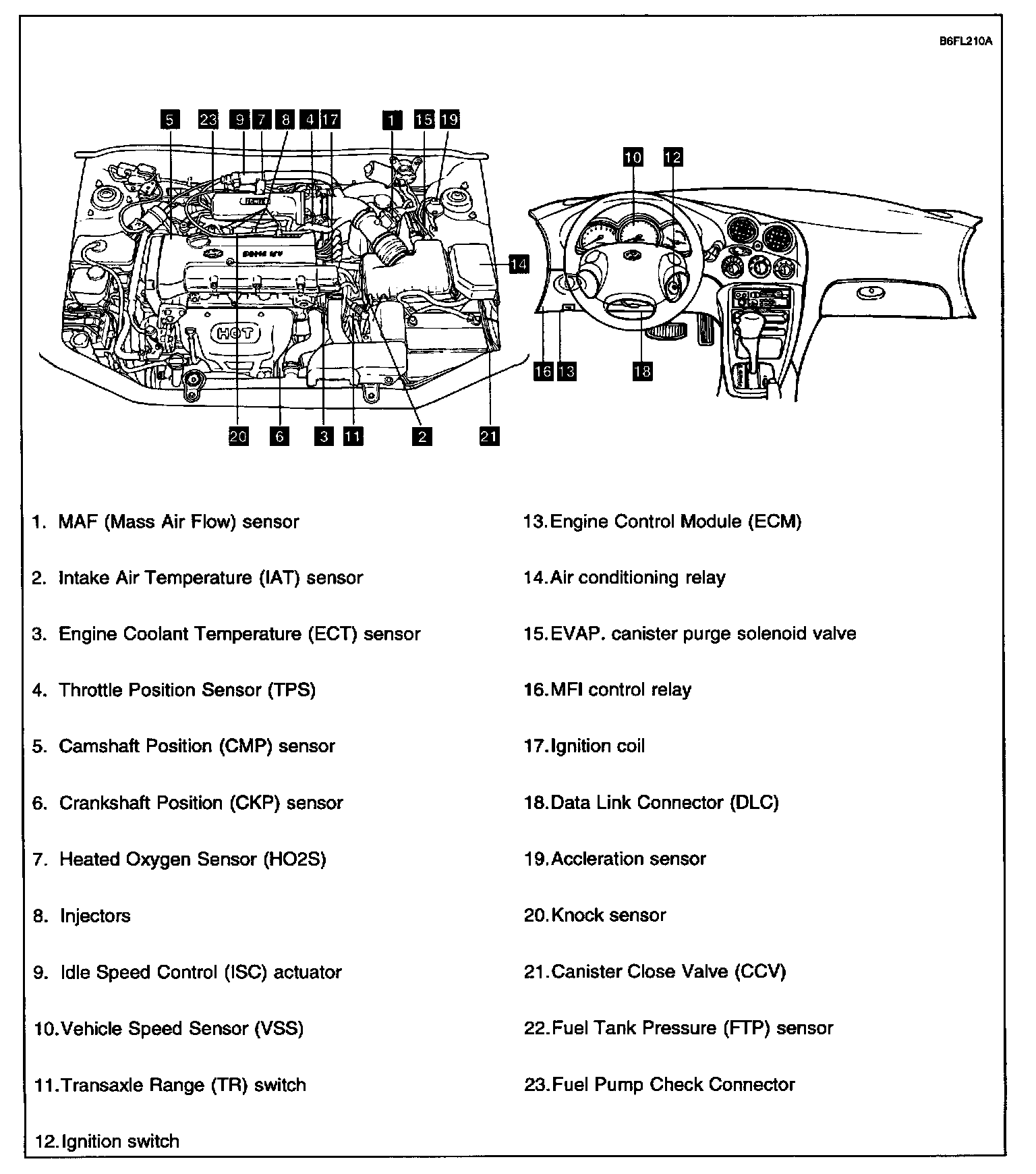

MFI Components:



13 ECM:
