Computers and Control Systems: Locations

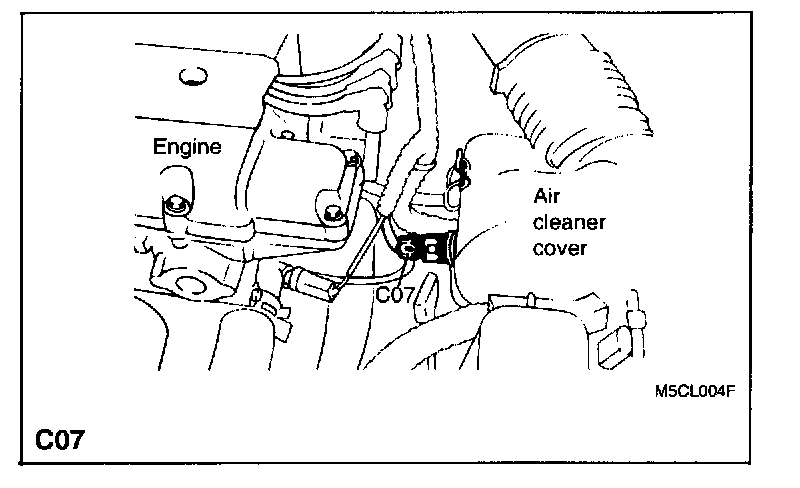

C07 Intake air temperature sensor:

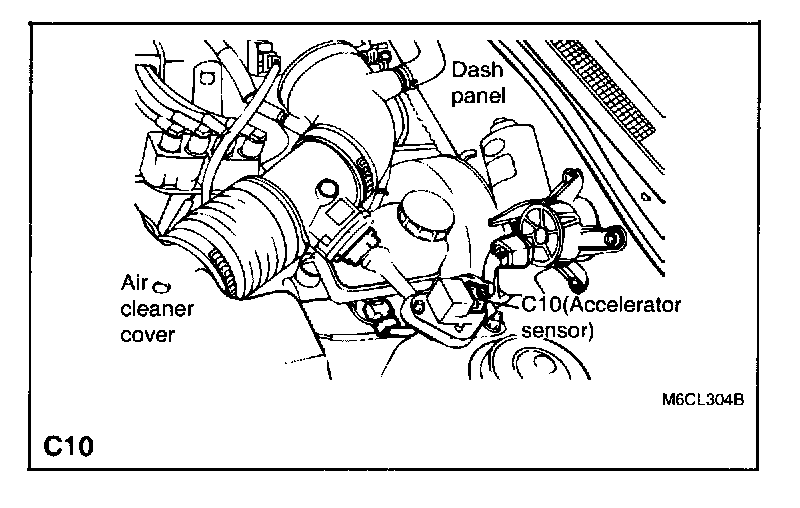

C10 Acceleration sensor:

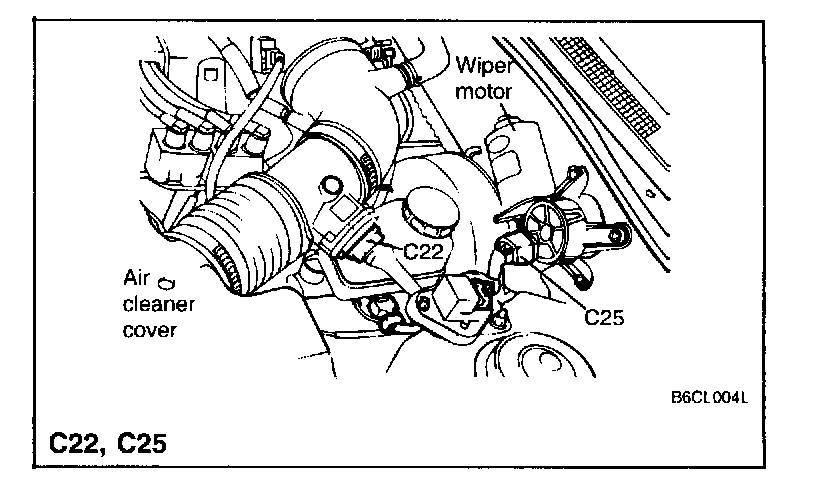

C22 Mass air flow (MAF) sensor, C25 Front wiper motor:

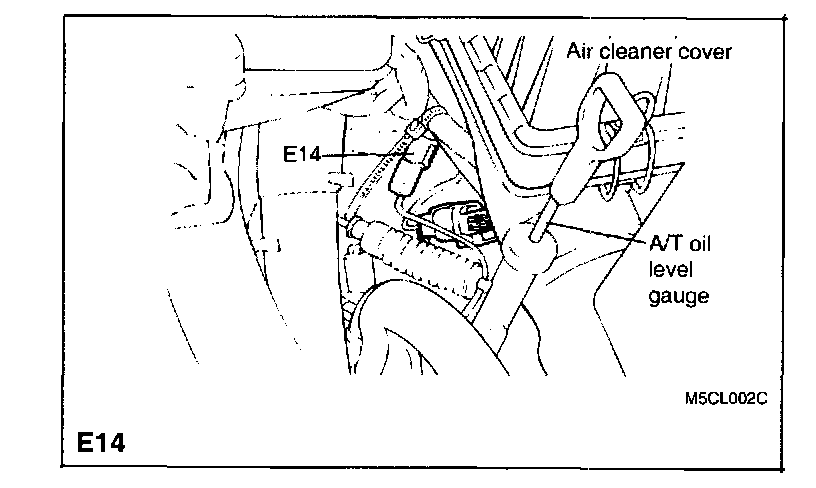

E14 Kick down servo switch:

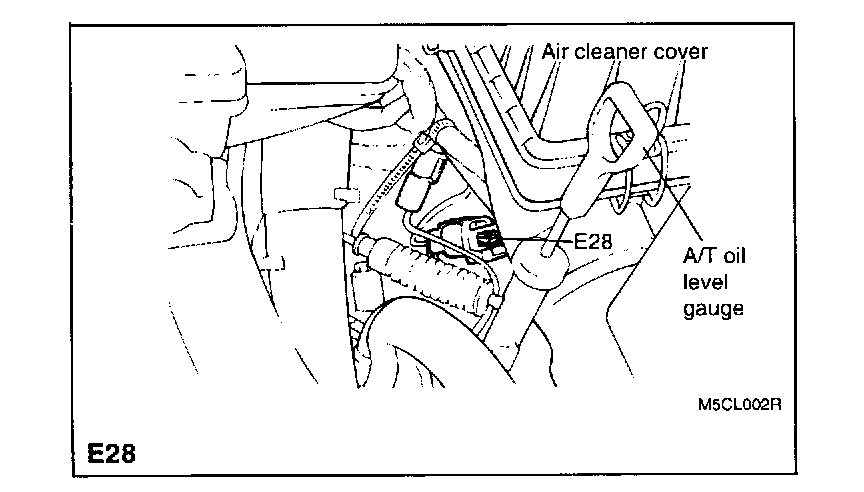

E28 Transaxle range switch:

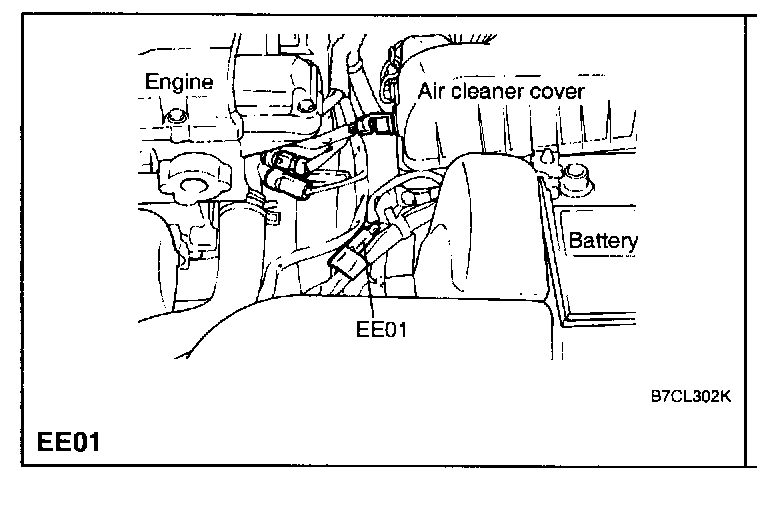

EE01:

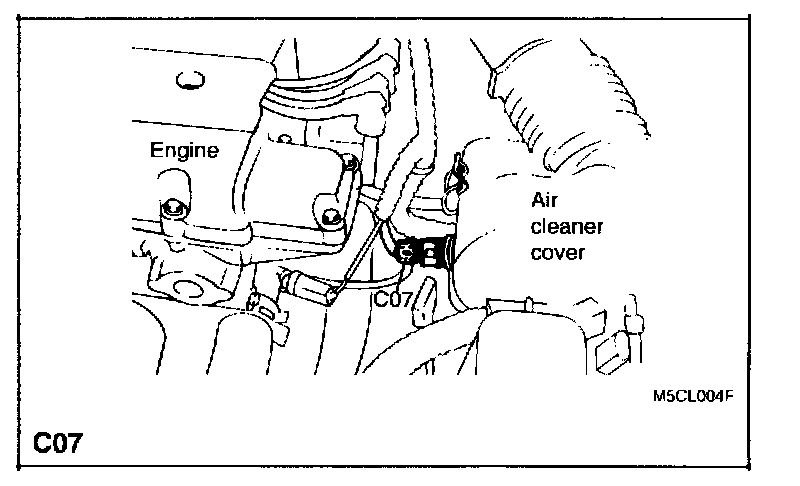

C07 Intake air temperature sensor:

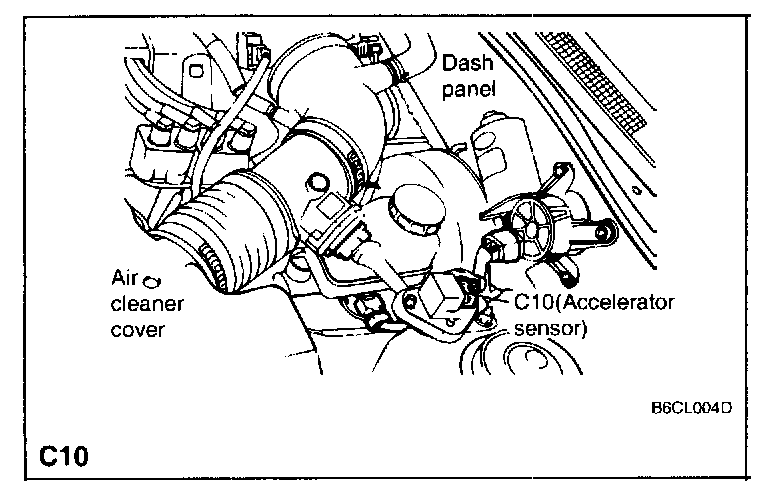

C10 Acceleration sensor:

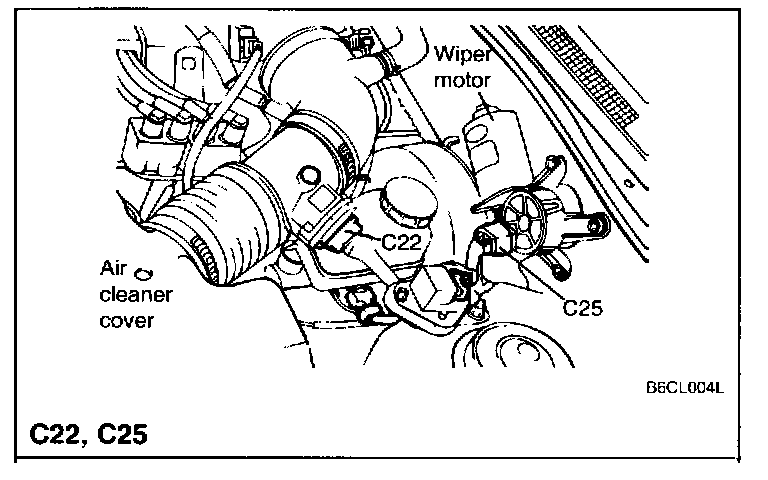

C22 MAF sensor, C25 Front wiper motor:

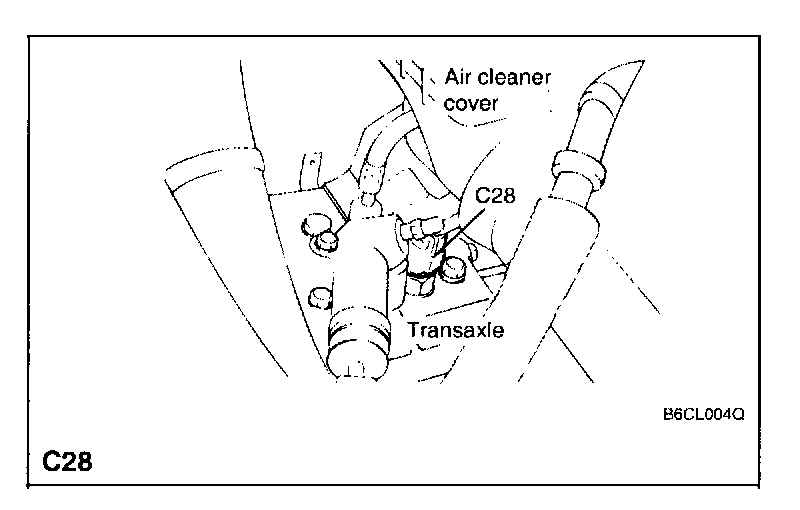

C28 Vehicle speed sensor:
