Home >> Hyundai >> 2000 >> Tiburon L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> System Relay >> Locations

System Relay: Locations




Located in the Engine Compartment Fuse/Relay Box

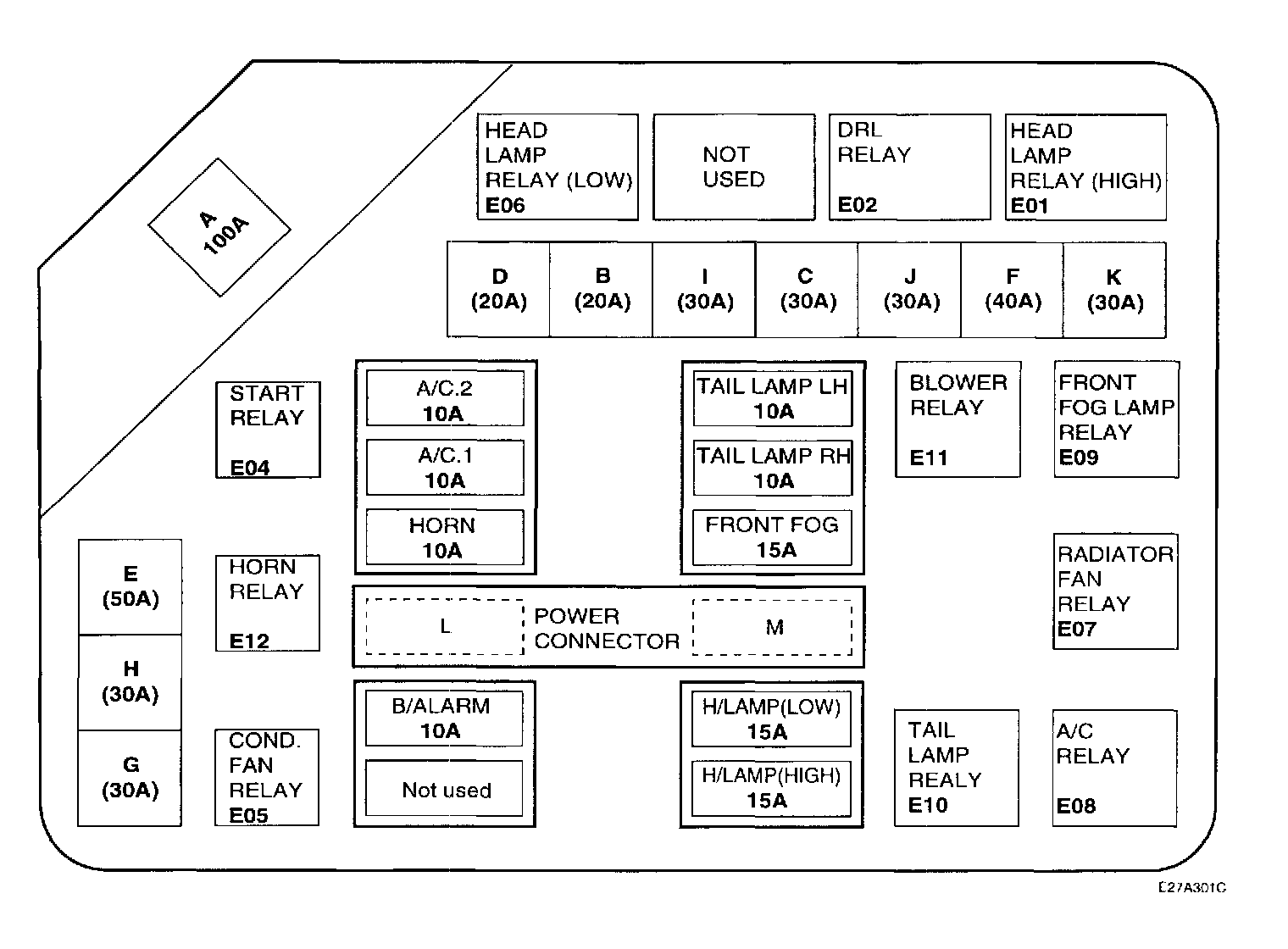

Engine Compartment Relay And Fuse Box (Layout):
