Signal Tests

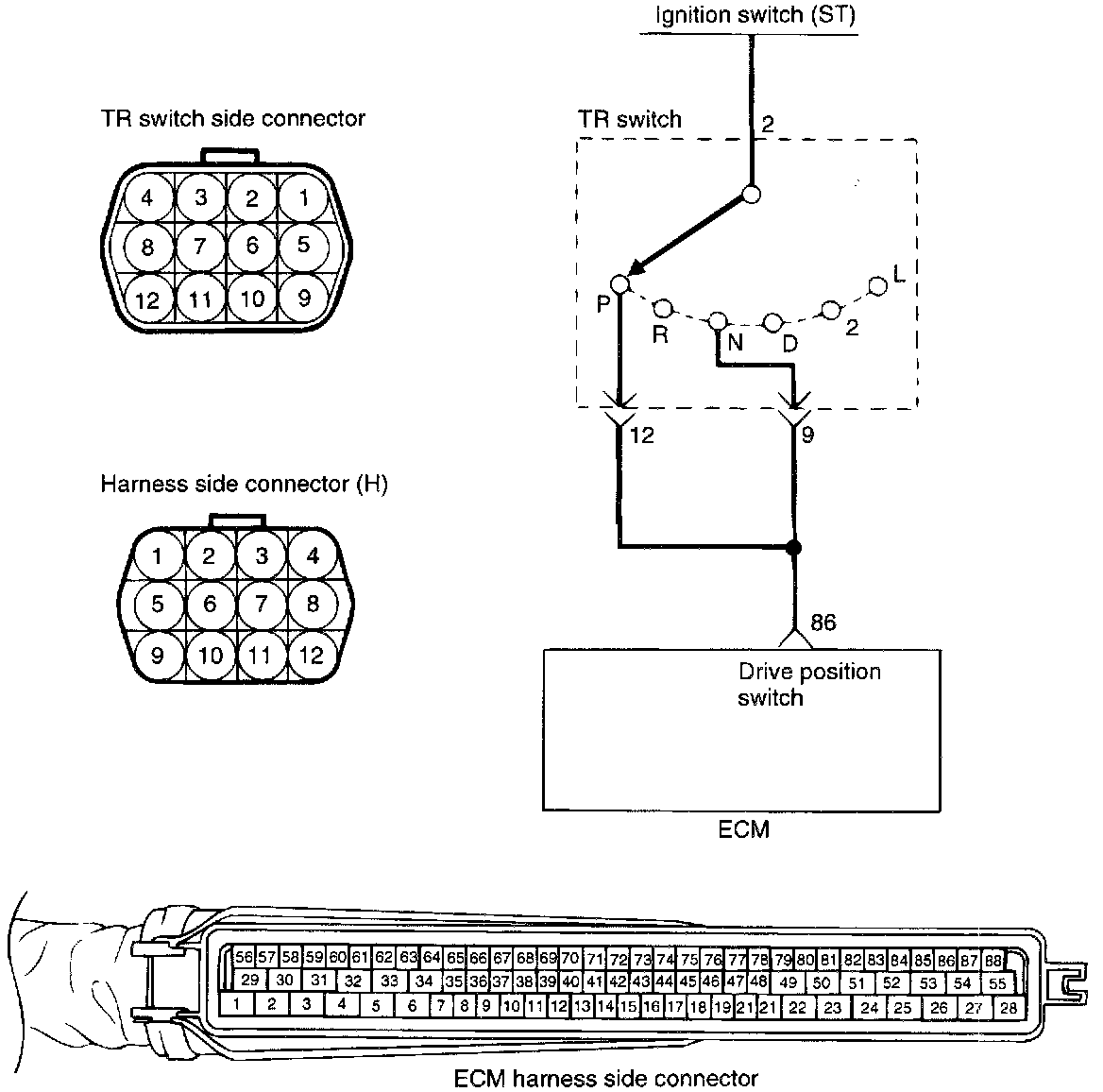

CIRCUIT DIAGRAM

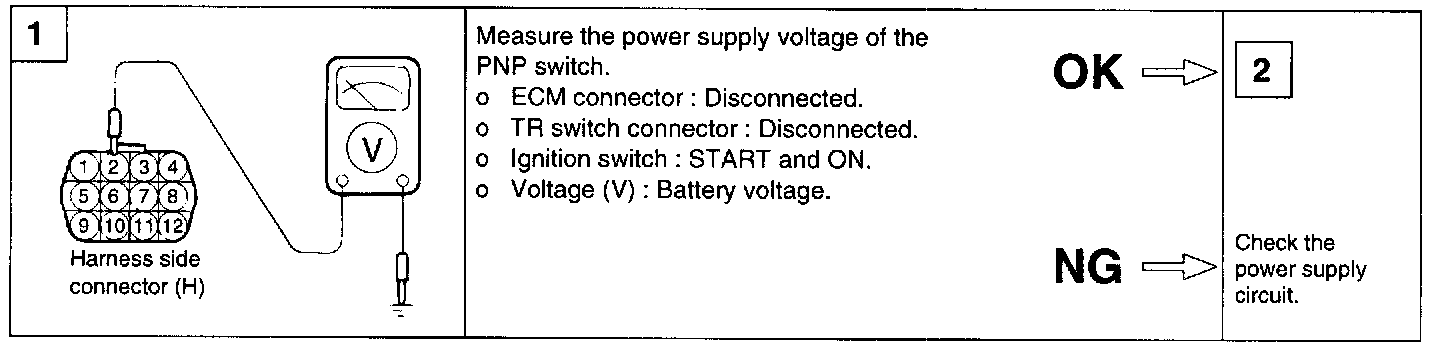

HARNESS INSPECTION
TROUBLESHOOTING HINT: If the park/neutral position switch harness check is normal but the park/neutral position switch output is abnormal, check the control cable adjustment.
CIRCUIT DIAGRAM

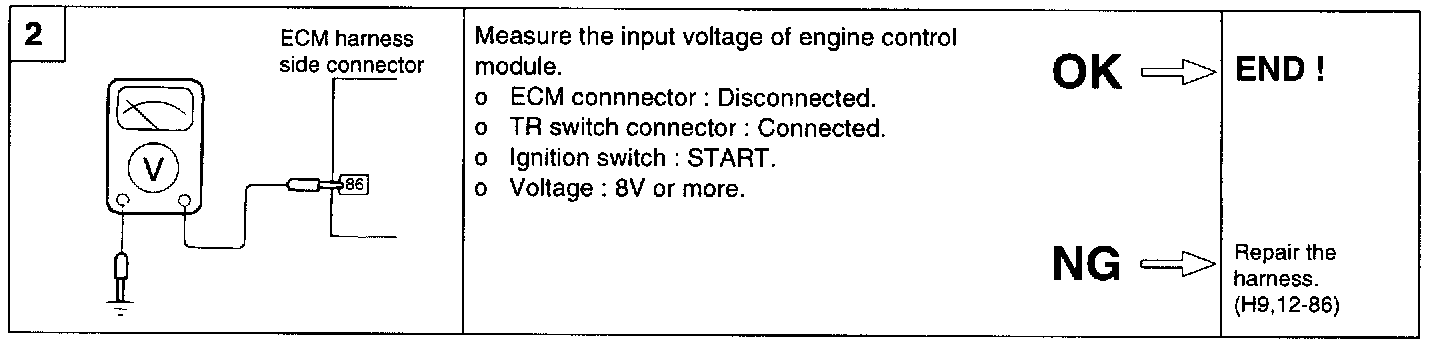

HARNESS INSPECTION
TROUBLESHOOTING HINT: If the park/neutral position switch harness check is normal but the park/neutral position switch output is abnormal, check the control cable adjustment.
