Home >> Hyundai >> 1997 >> Sonata L4-2.0L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> General Torque Specifications

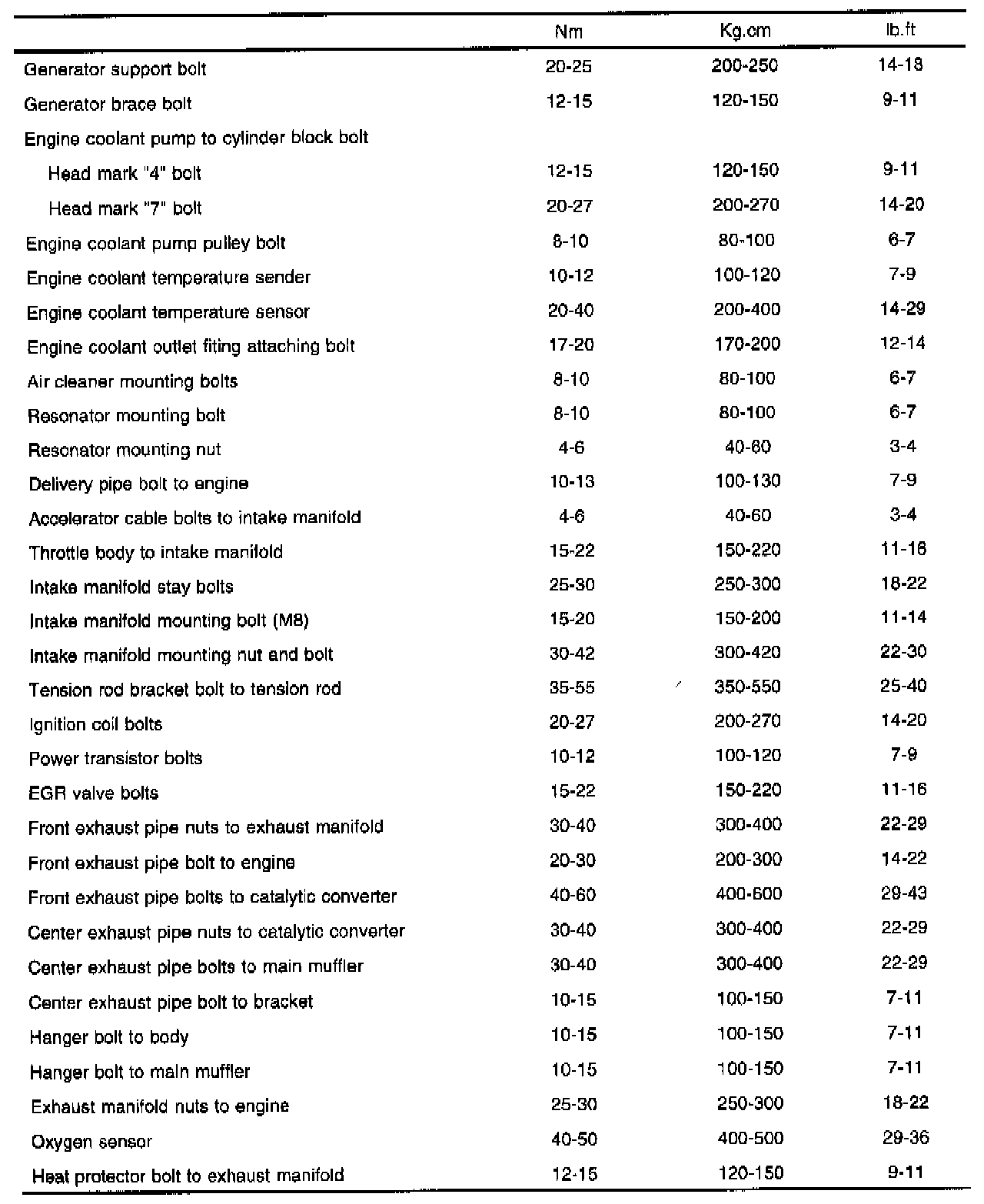

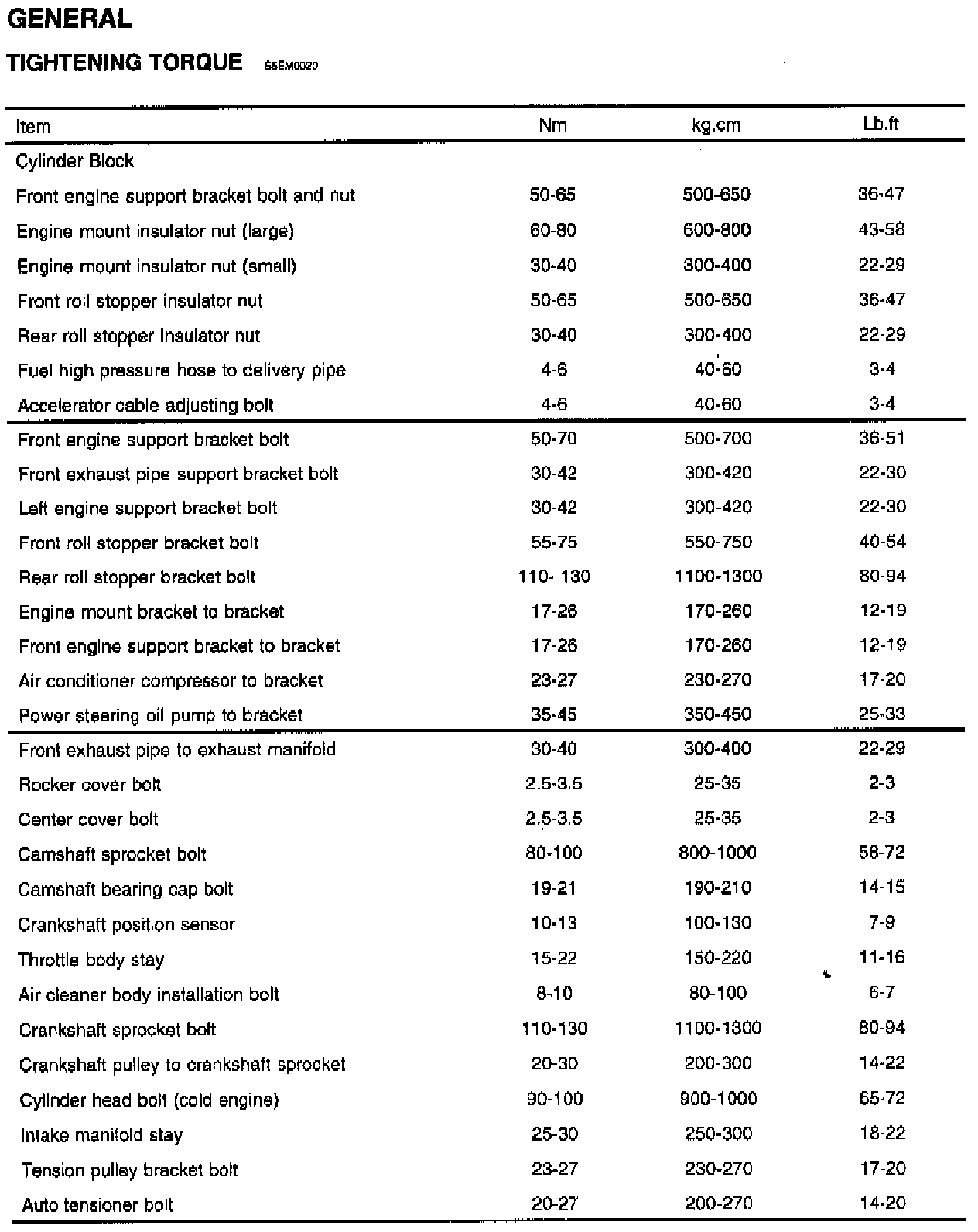

General Torque Specifications

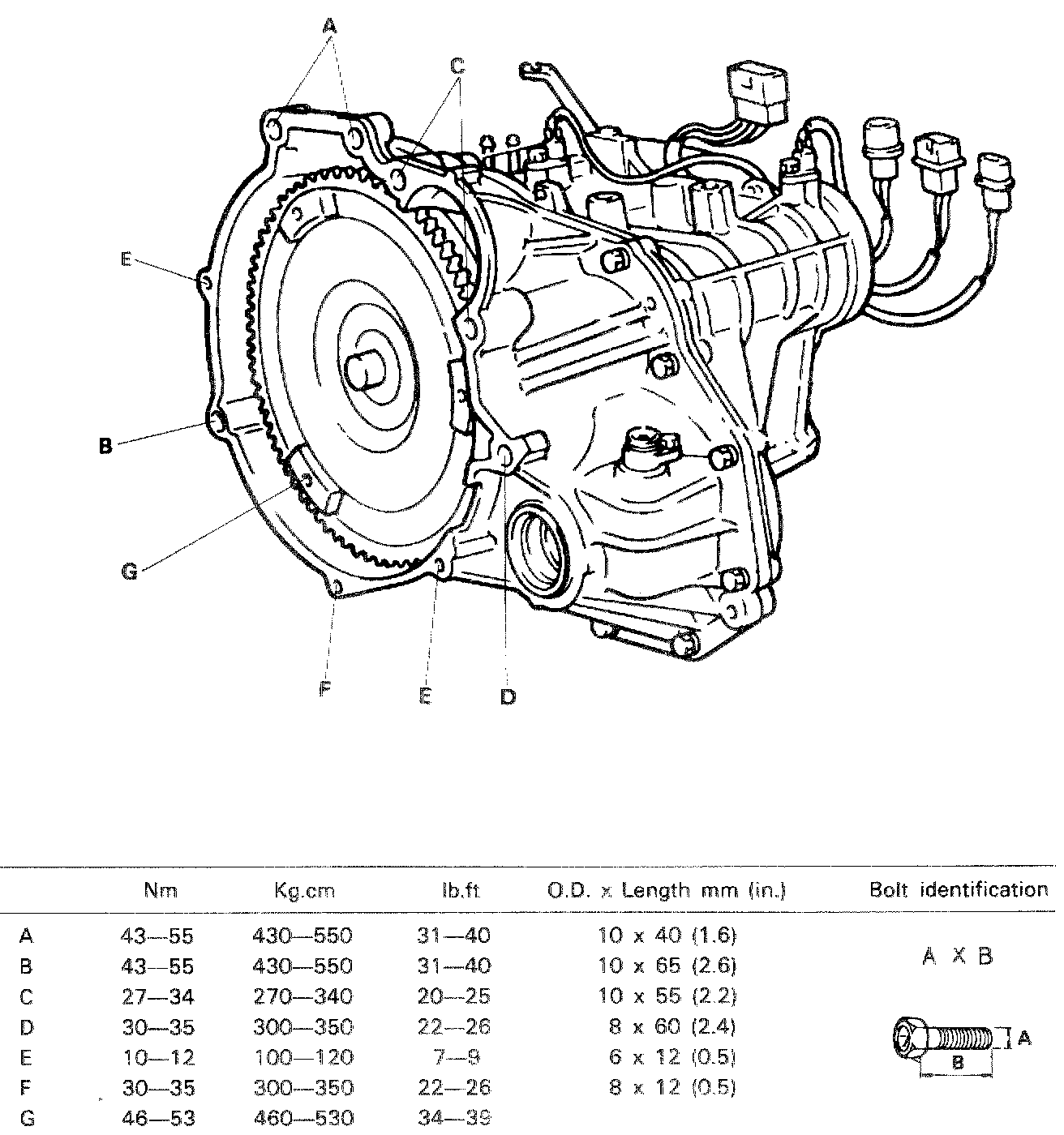

Bell Housing Bolts

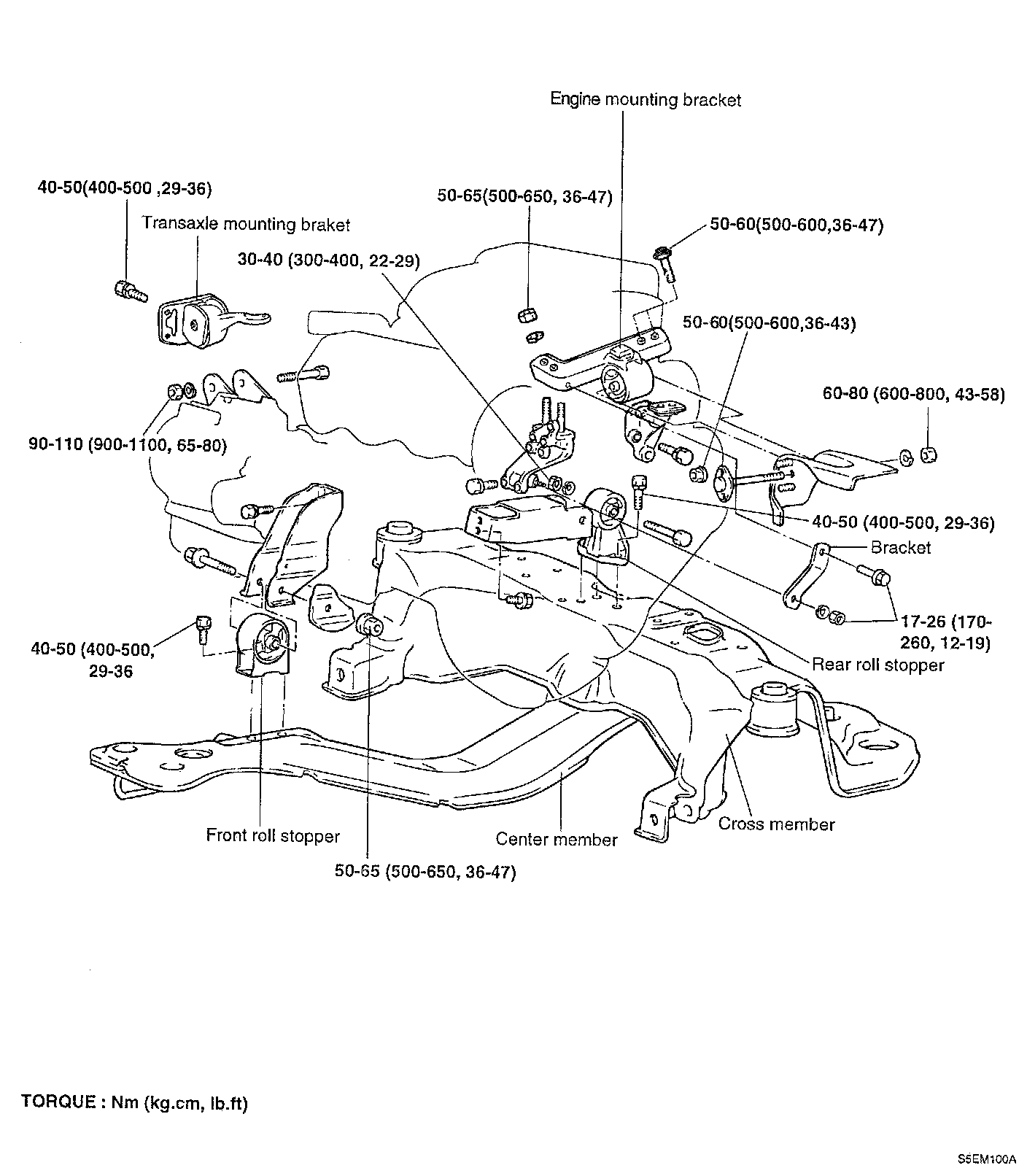

Support Brackets

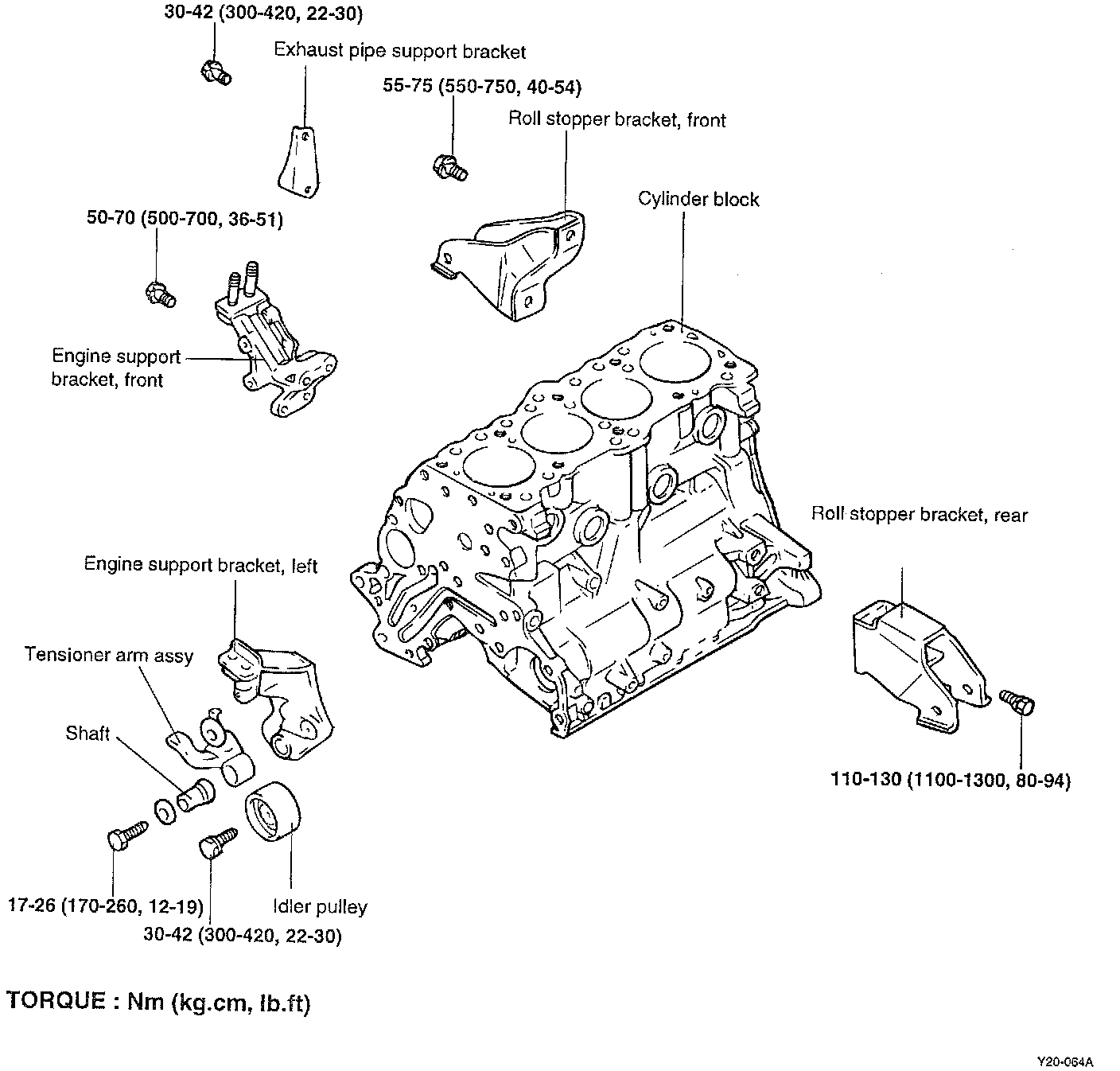

Mounting Brackets

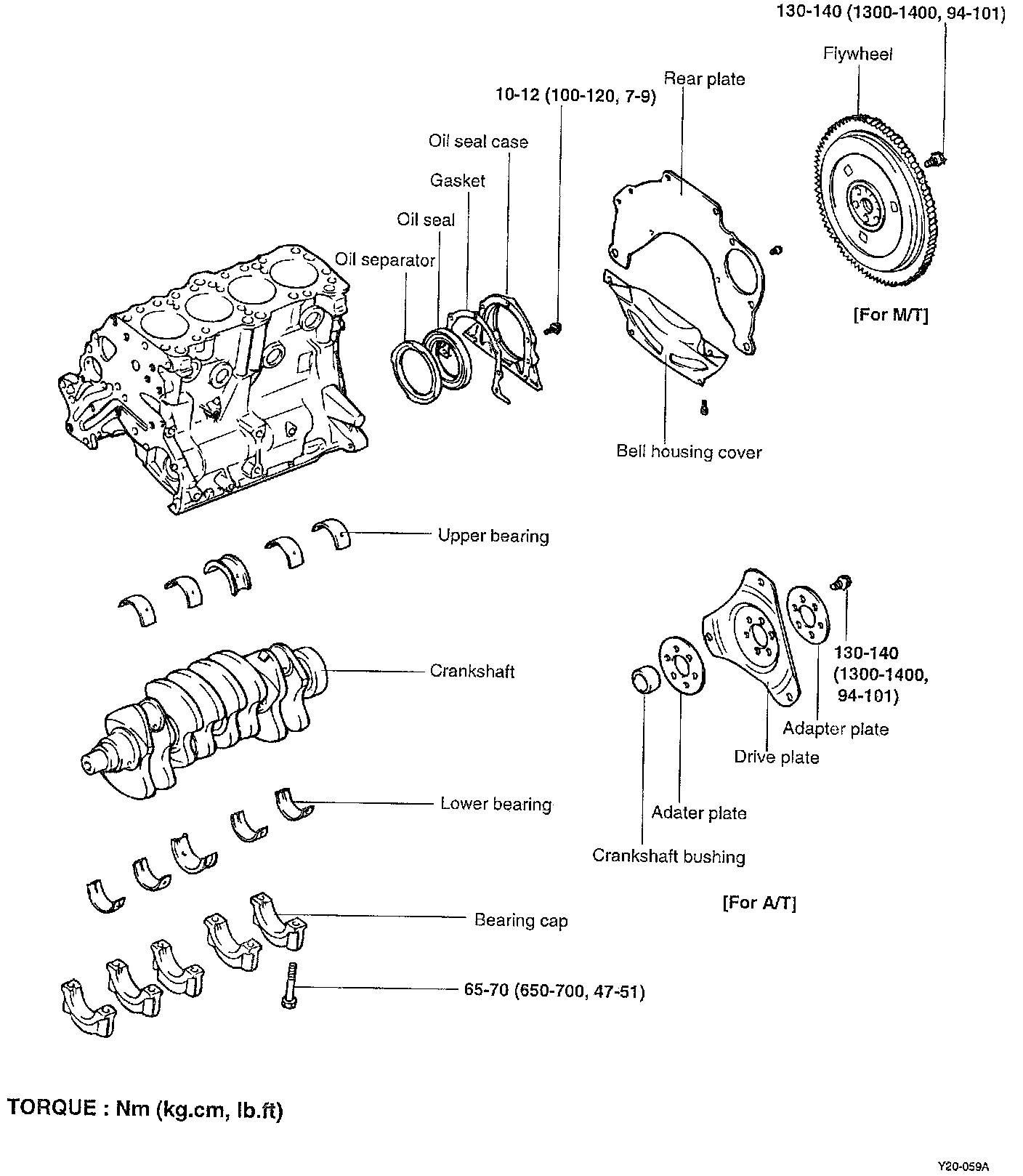

Flywheel/Drive Plate





Drive Plate-To-Converter Tightening Bolt 46-53 Nm (34-38 ft. lbs.)
