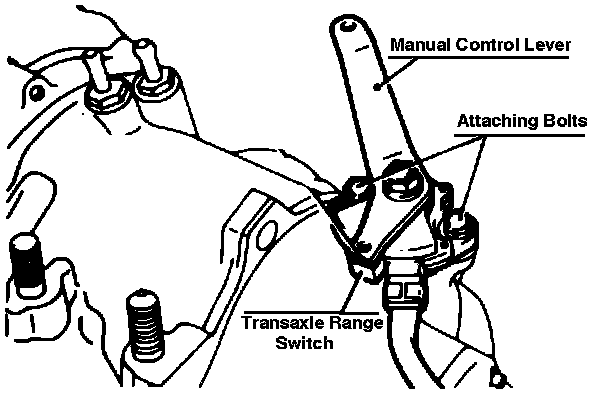

Transmission Position Sensor/Switch: Service and Repair

1. Place manual control lever in neutral position, then remove control lever retainer and lever.
2. Disconnect electrical harness, then remove switch retaining bolts and switch assembly.
3. Reverse procedure to install.
4. Tighten bolts to proper torque.

Torque: 10 - 12 Nm (7 - 9 Ft Lb)
