Connector Views
>>
Timer/Control Unit, Accessory Control
Timer/Control Unit, Accessory Control

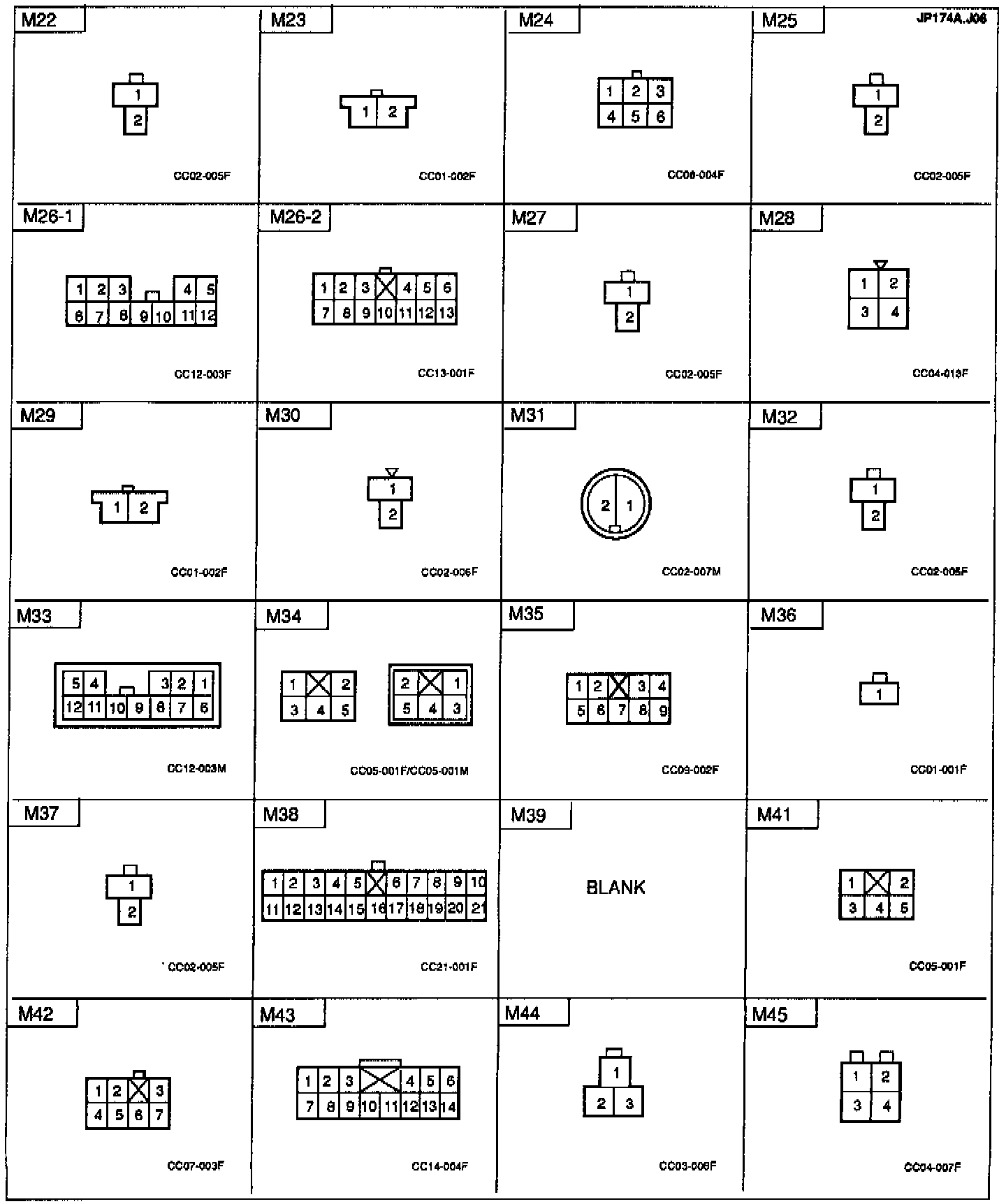

Connector Identification: M22 Thru M45:
