Alignment Specifications - Conversion Chart

Group: CHASSIS
Number: 92-50-011
Date: DECEMBER, 1992
Model: ALL

Subject:

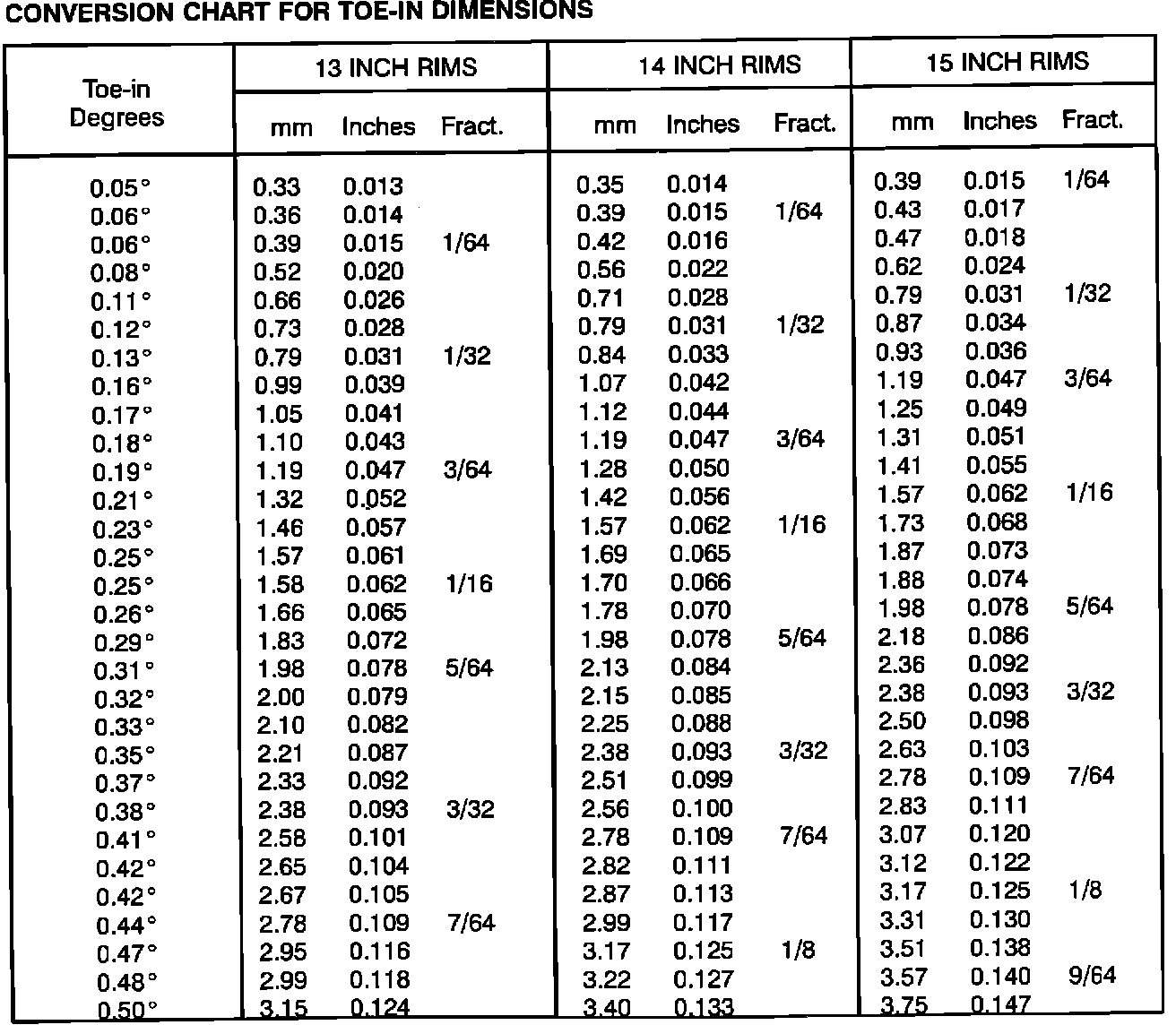

CONVERSION CHART FOR ALIGNMENT SPECIFICATIONS

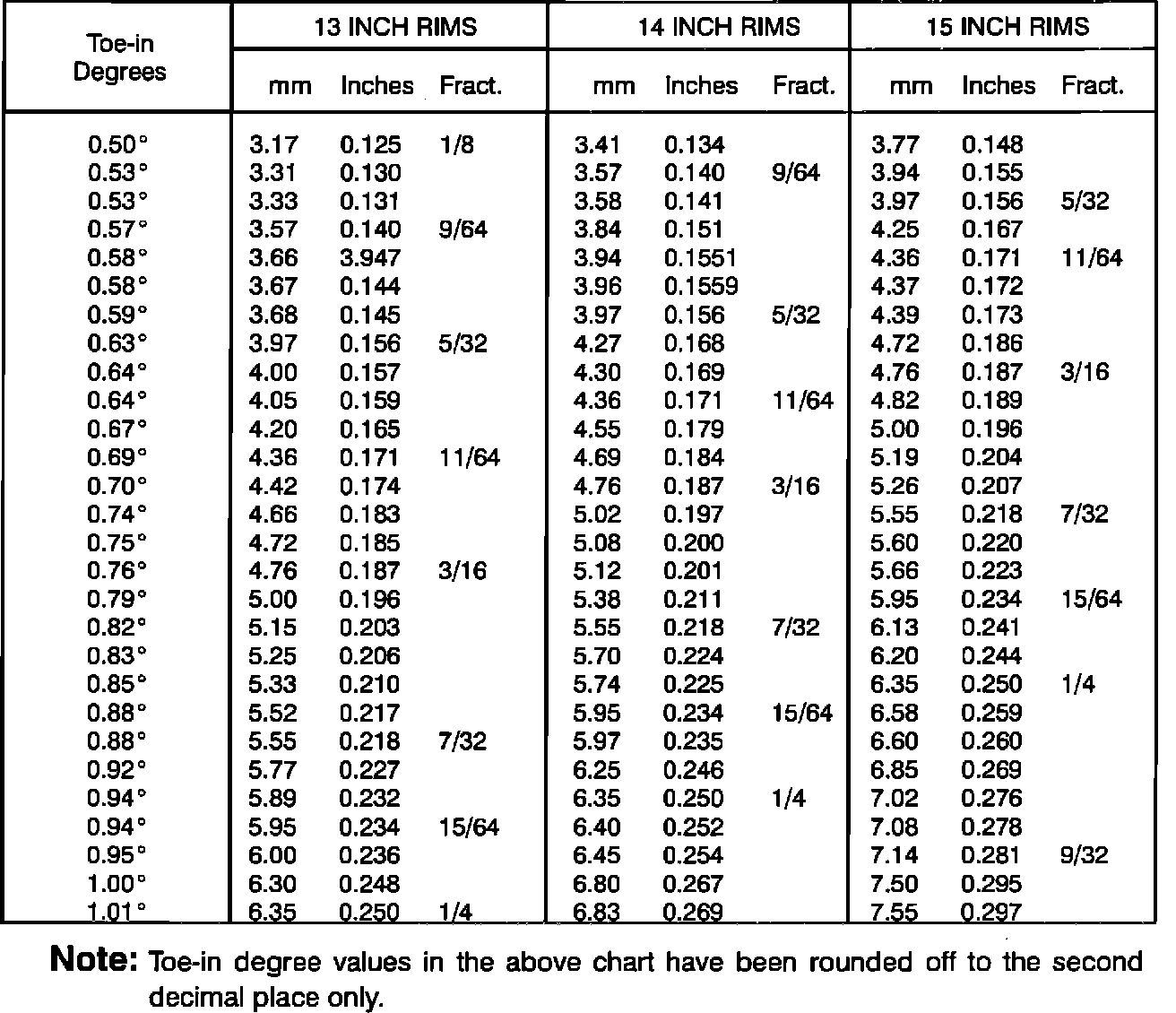

Toe-in and Camber measurements are usually indicated in angular degrees. Some alignment machines display figures for Toe-in in fractions of an inch, in decimal inches or in millimeters. The equivalent angular degrees can easily be obtained from the table.
