Caster

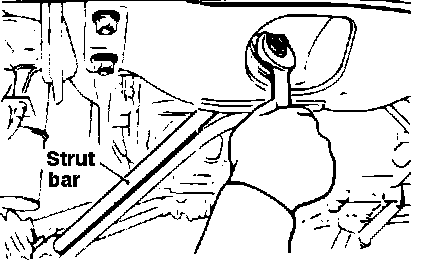

Fig. 1 Adjusting Caster:

Caster on these vehicles generally requires no adjustment. However, on 1989 Excel models, slight adjustments can be made by turning the adjusting nut on the strut bar, Fig. 1, clockwise or counterclockwise as required.
