Camshaft Position Sensor: Diagrams

Inline Harness Connector End Views

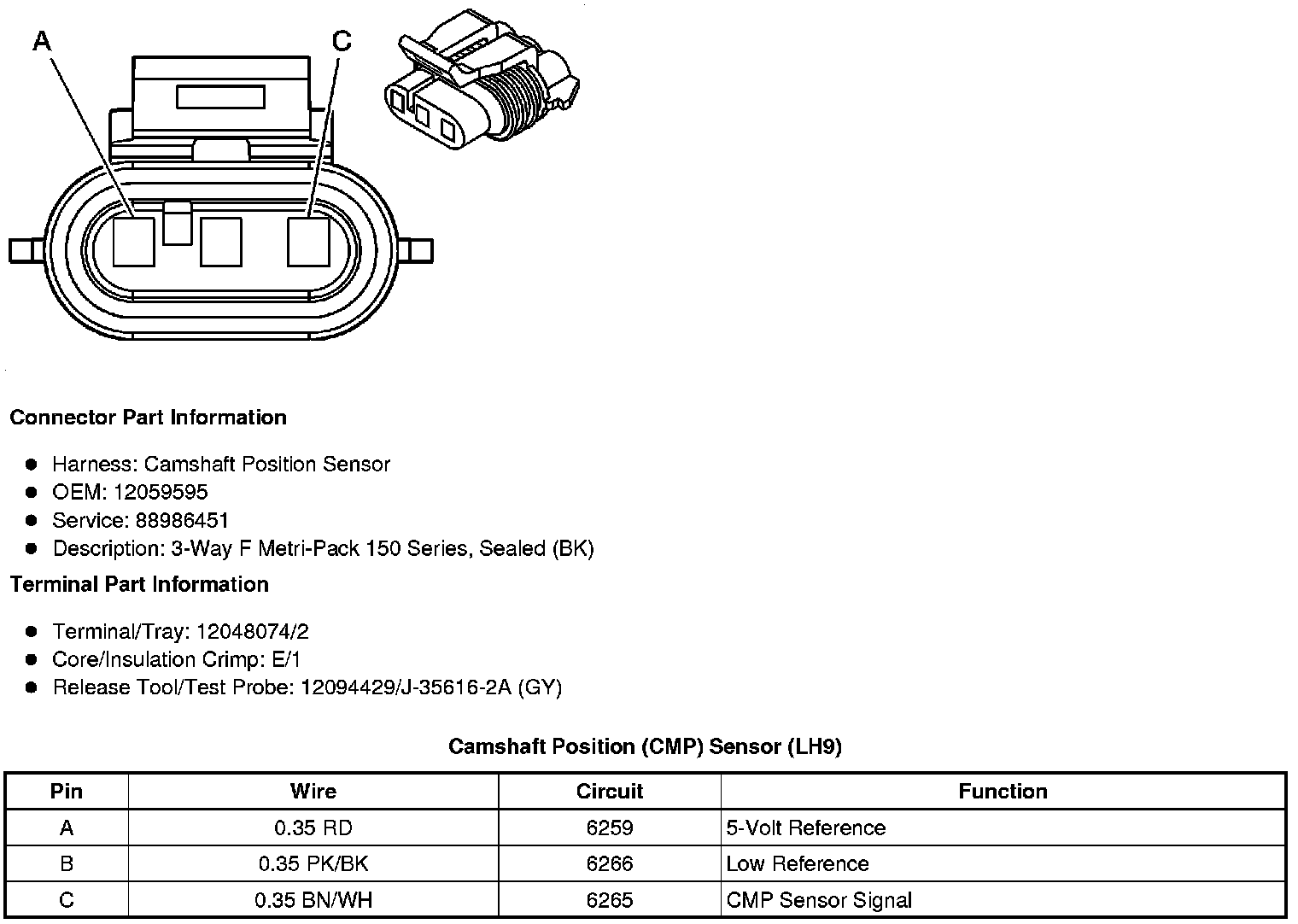

Camshaft Position (CMP) Sensor (LH9)

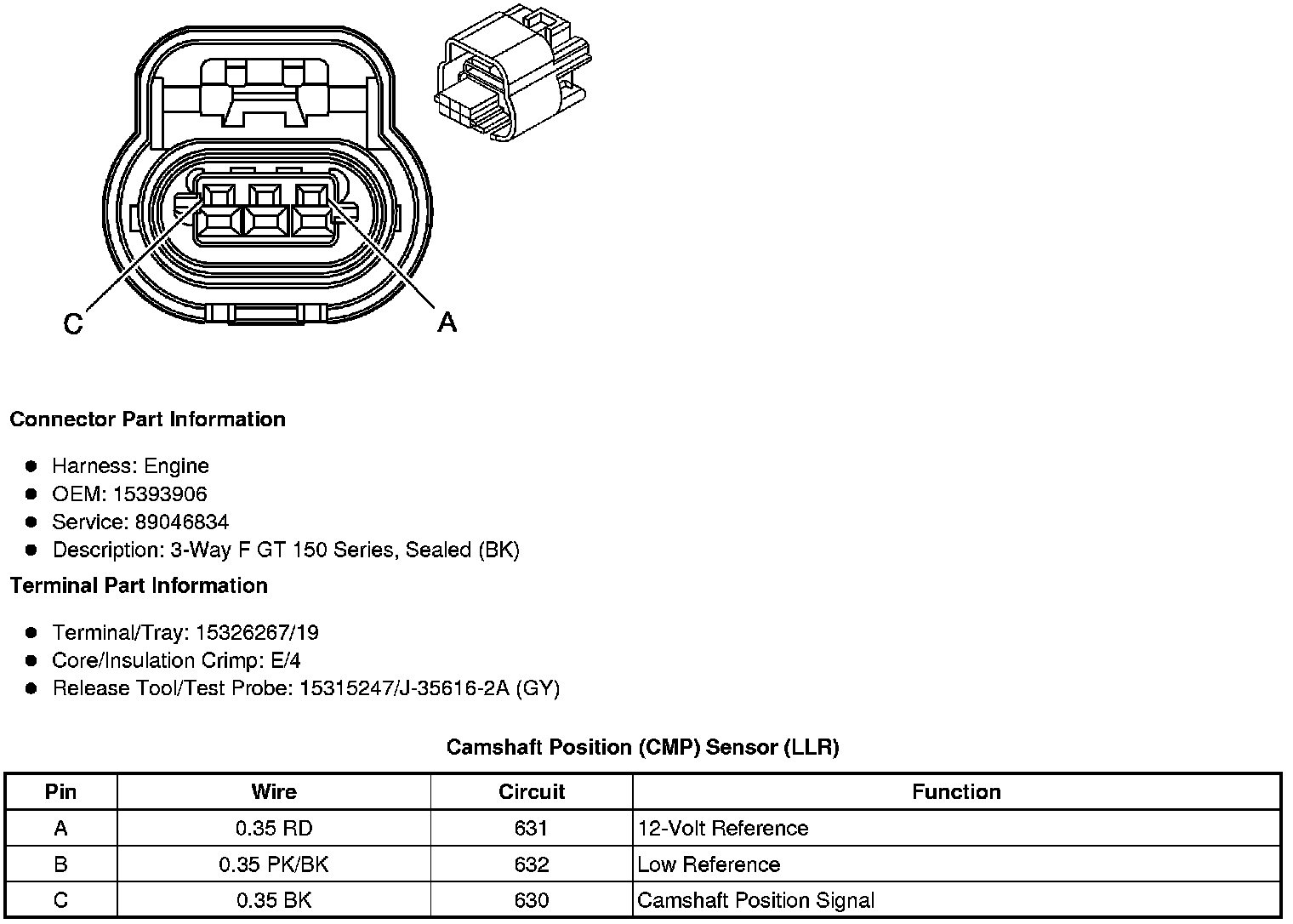

Camshaft Position (CMP) Sensor (LLR)
