Crankshaft Position Sensor: Diagrams

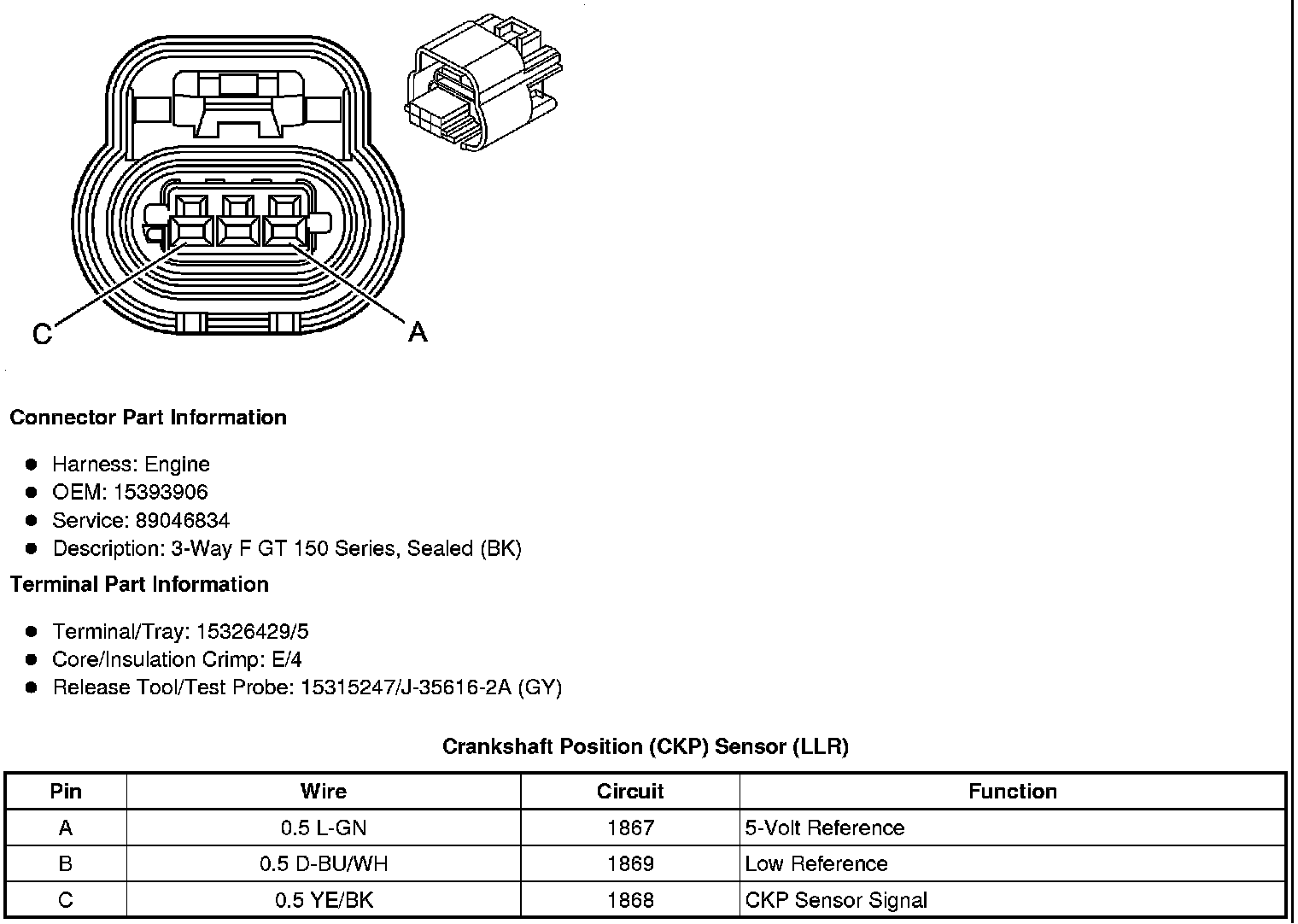

Component Connector End Views

Crankshaft Position (CKP) Sensor (LLR)
