Generator Bracket Replacement

Generator Bracket Replacement

Removal Procedure





1. Remove the battery cable junction block bracket bolts.




2. Remove the generator. Refer to Generator Replacement (Generator Replacement) .
3. Remove the power steering pump. Refer to Power Steering Pump Replacement (Power Steering Pump Replacement) .
4. Remove the generator bracket bolts.
5. Remove the generator bracket.

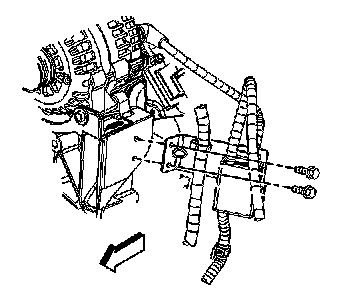

Installation Procedure





1. Install the generator bracket.
Notice: Refer to Fastener Notice .


2. Install the generator bracket bolts.

Tighten the bolts to 50 N.m (37 lb ft).

3. Install the power steering pump. Refer to Power Steering Pump Replacement (Power Steering Pump Replacement) .
4. Install the generator. Refer to Generator Replacement (Generator Replacement) .




5. Install the battery cable junction block bracket bolts.

Tighten the bolts to 9 N.m (80 lb in).
