Ignition Coil: Diagrams



Engine Controls Connector End Views

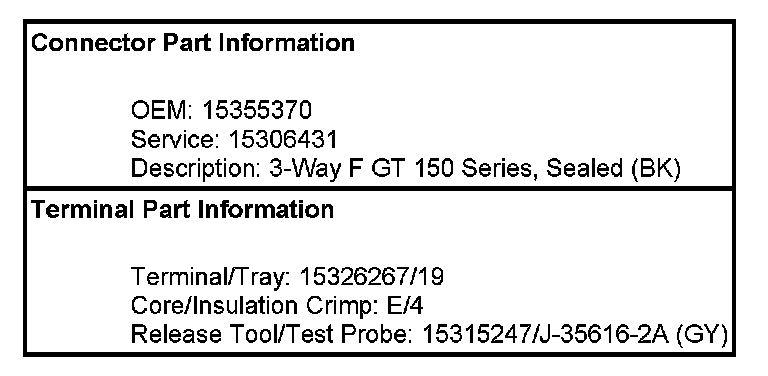

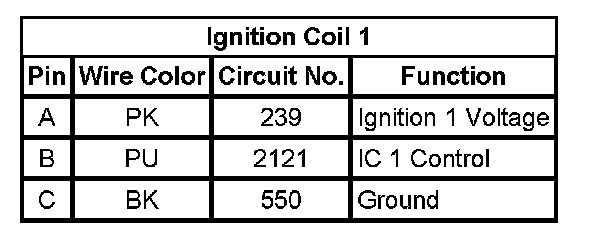

Ignition Coil 1

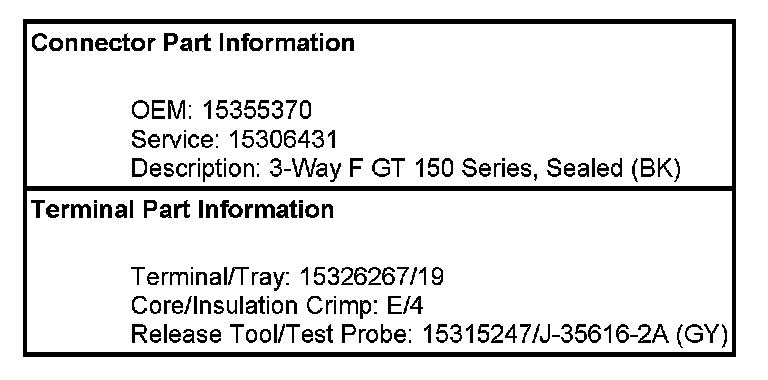

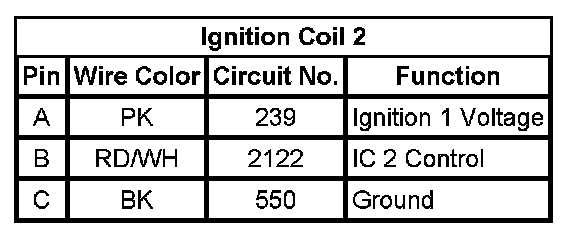

Ignition Coil 2

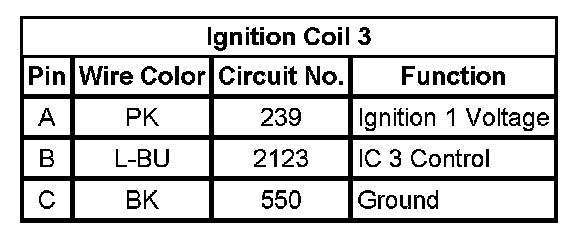

Ignition Coil 3

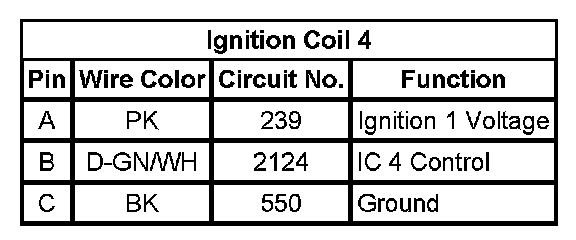

Ignition Coil 4

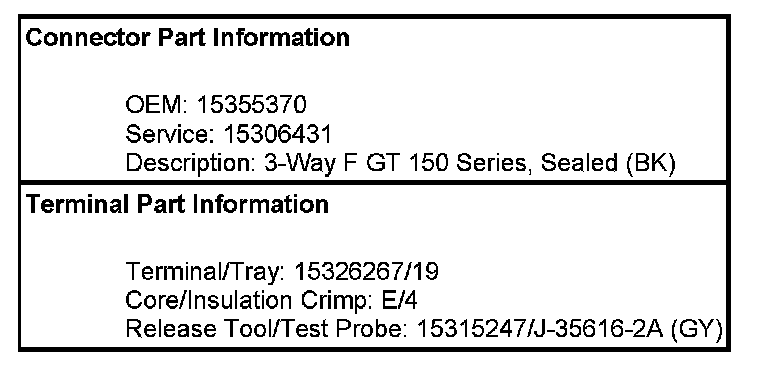

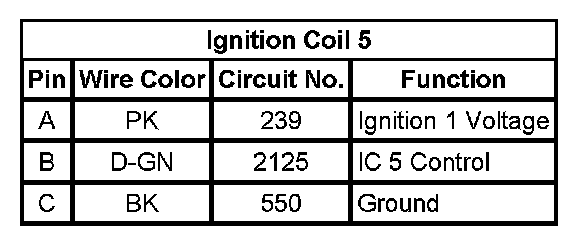

Ignition Coil 5
