Transmission Position Sensor/Switch: Diagrams

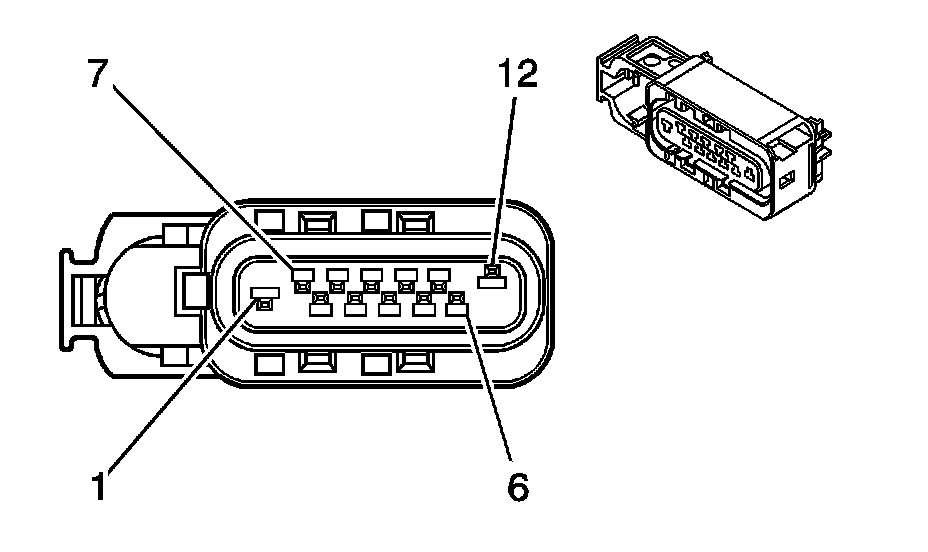

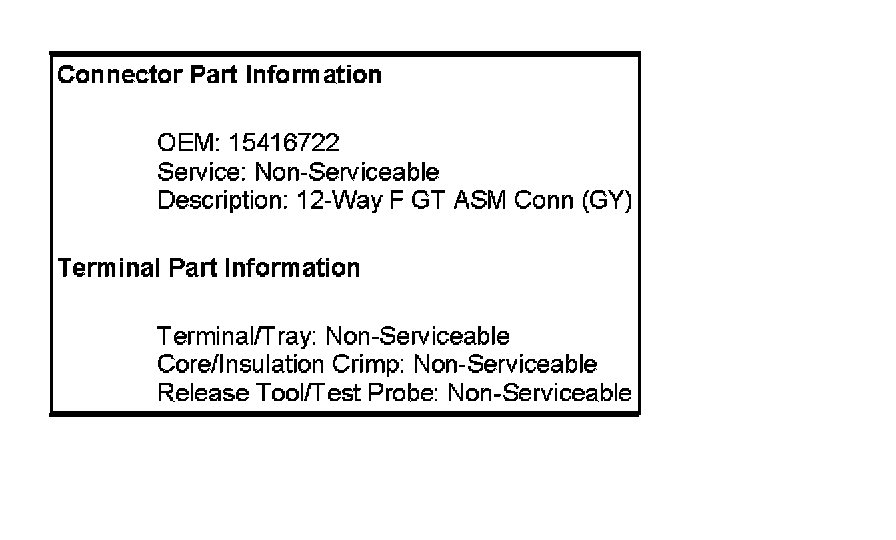

Park Neutral Position (PNP) Switch, Wiring Harness Side

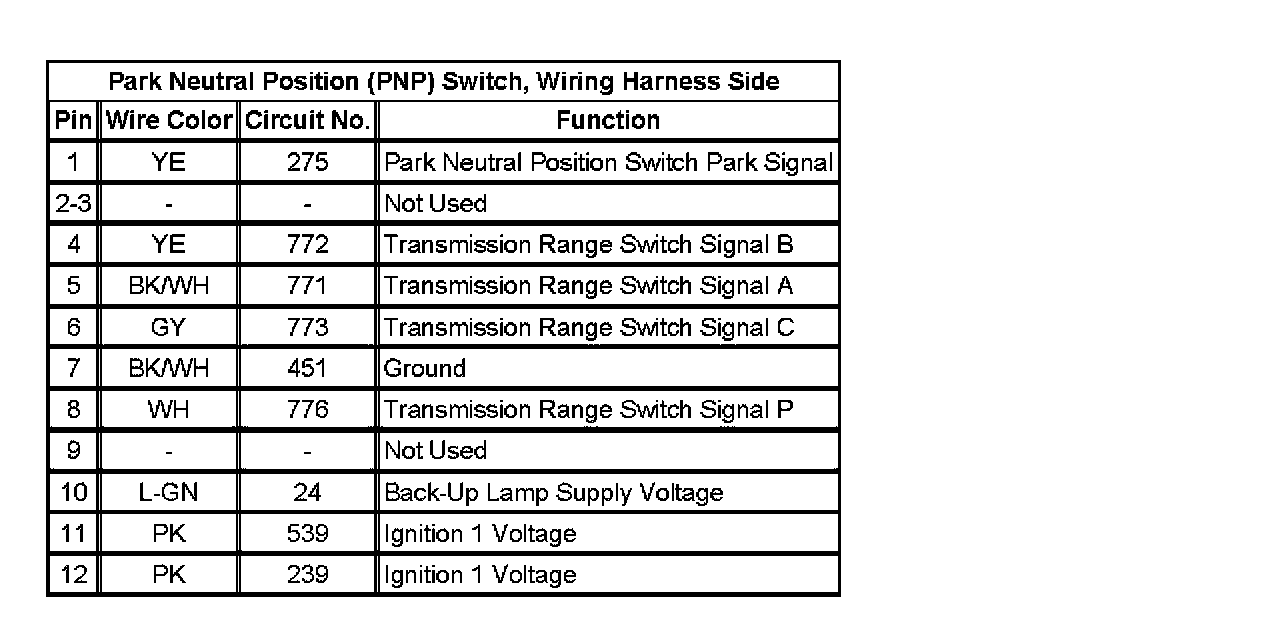

Park Neutral Position (PNP) Switch, Wiring Harness Side:
