Fuel Tank Pressure Sensor: Diagrams

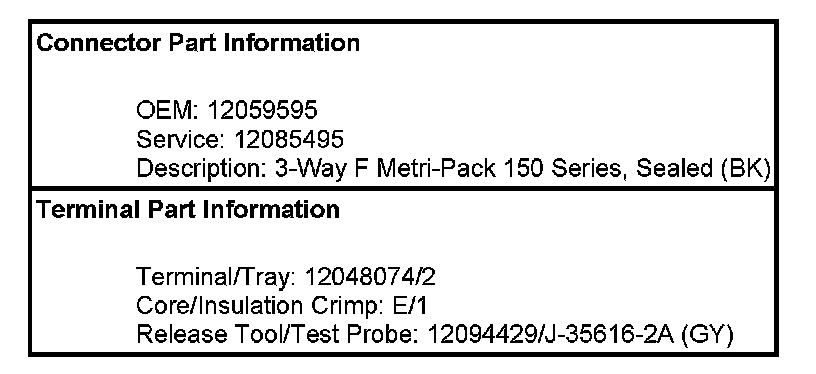

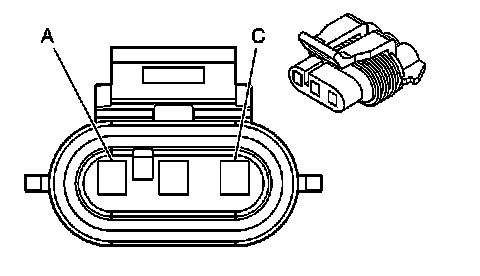

Engine Controls Connector End Views

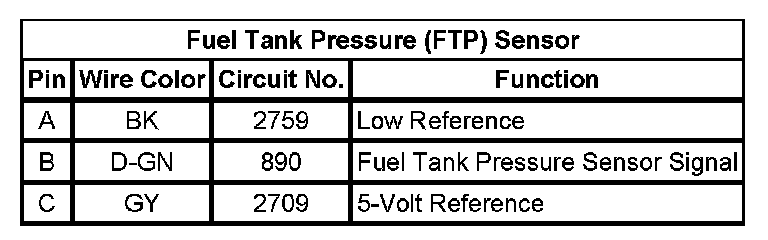

Fuel Tank Pressure (FTP) Sensor
