Hummer
>>
2007
>>
H3 L5-3.7L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Electrical Center Identification Views
Electrical Center Identification Views
Electrical Center Identification Views

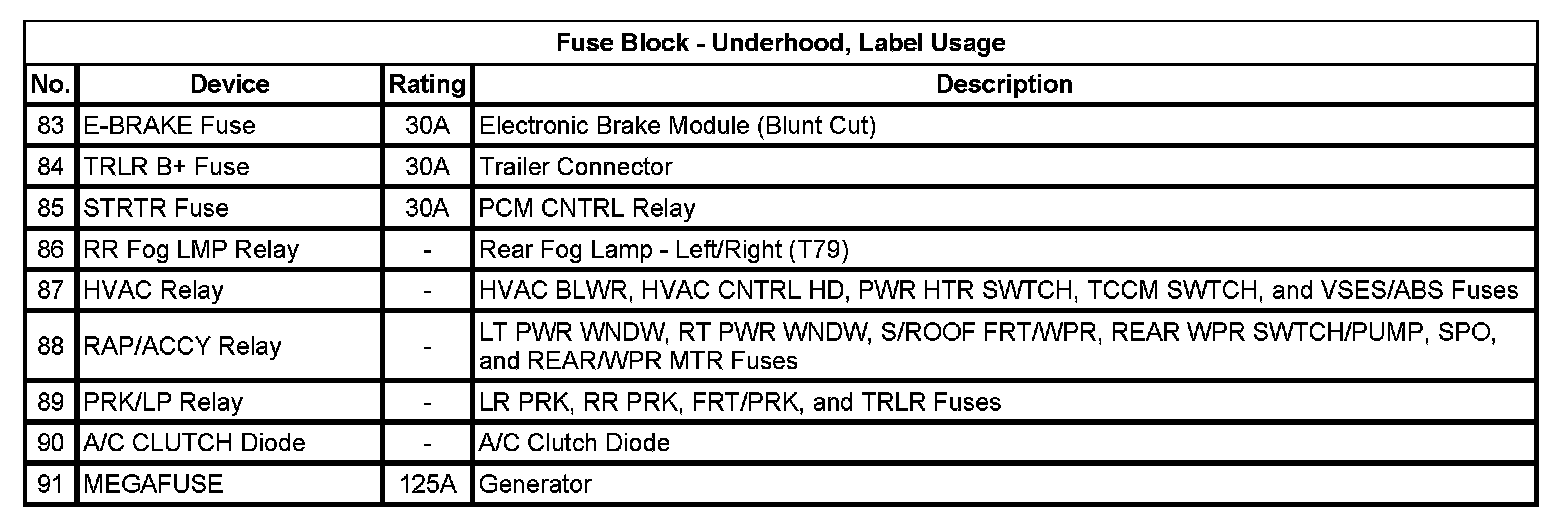

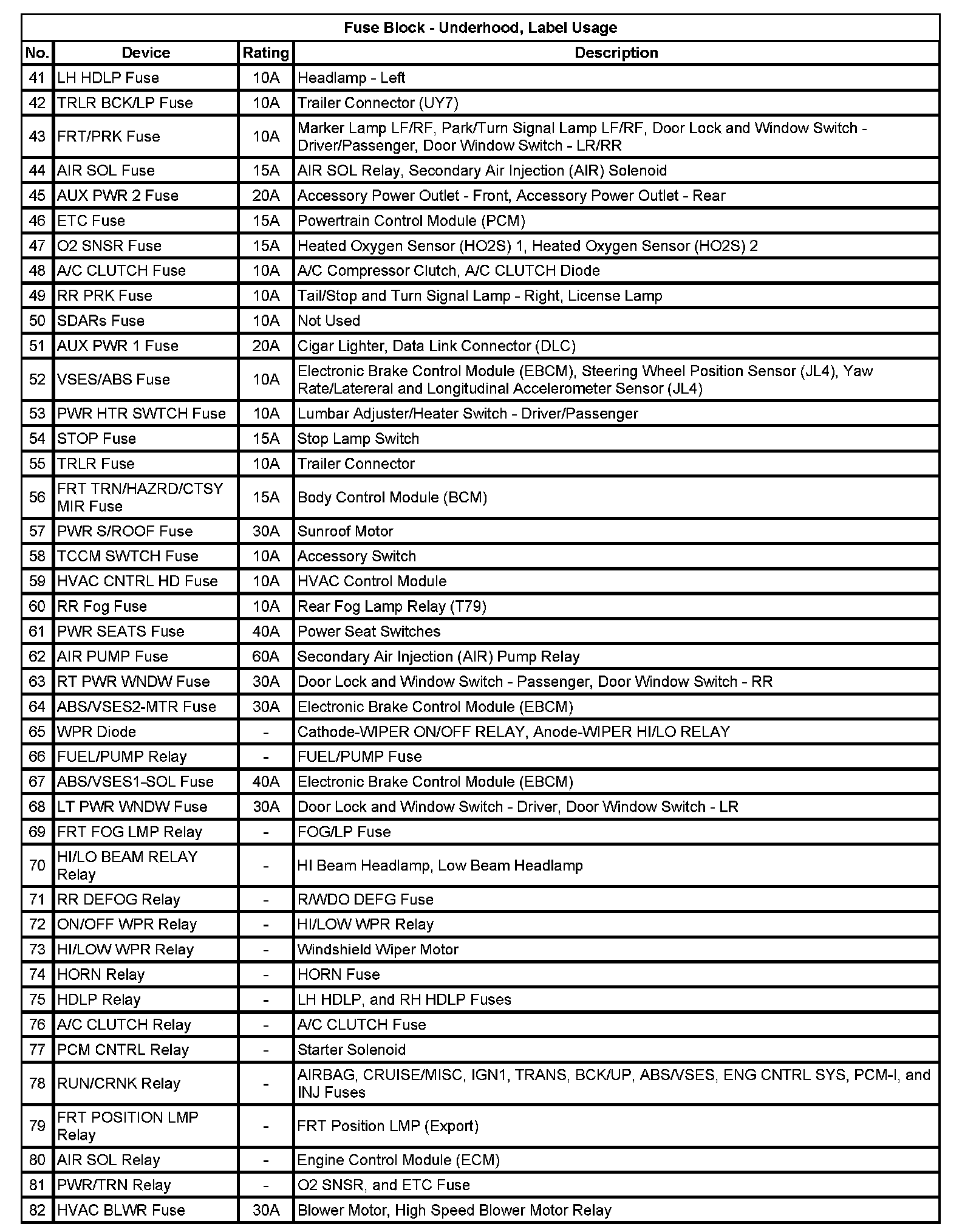

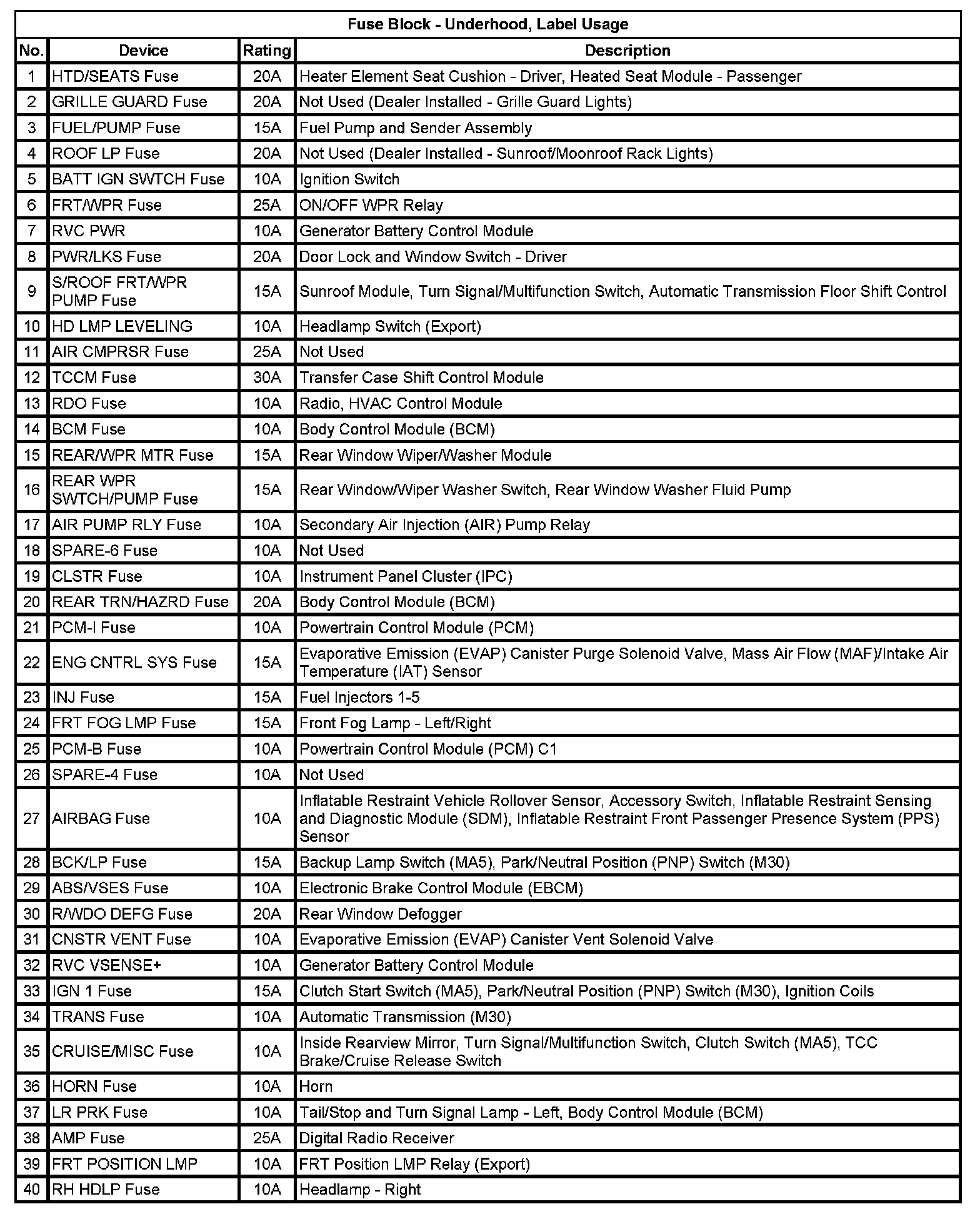

Fuse Block
- Underhood, Label
