Transmission Position Sensor/Switch: Diagrams

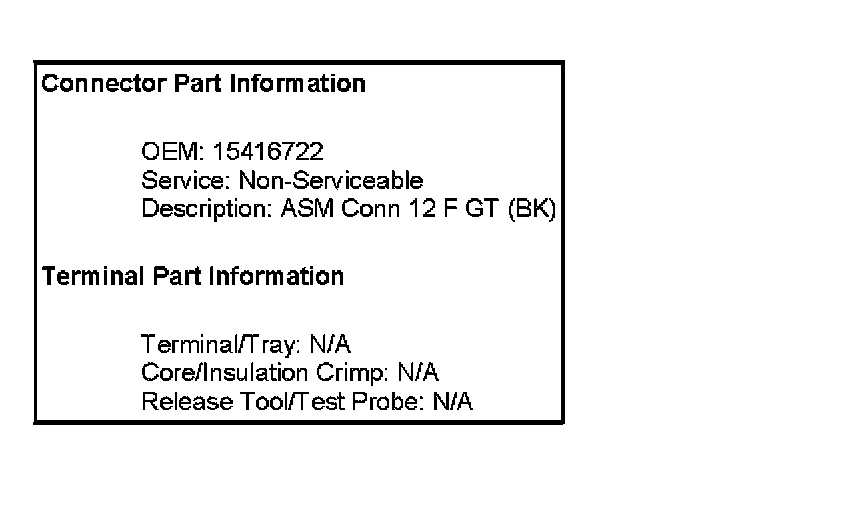

Automatic Transmission Related Connector End Views

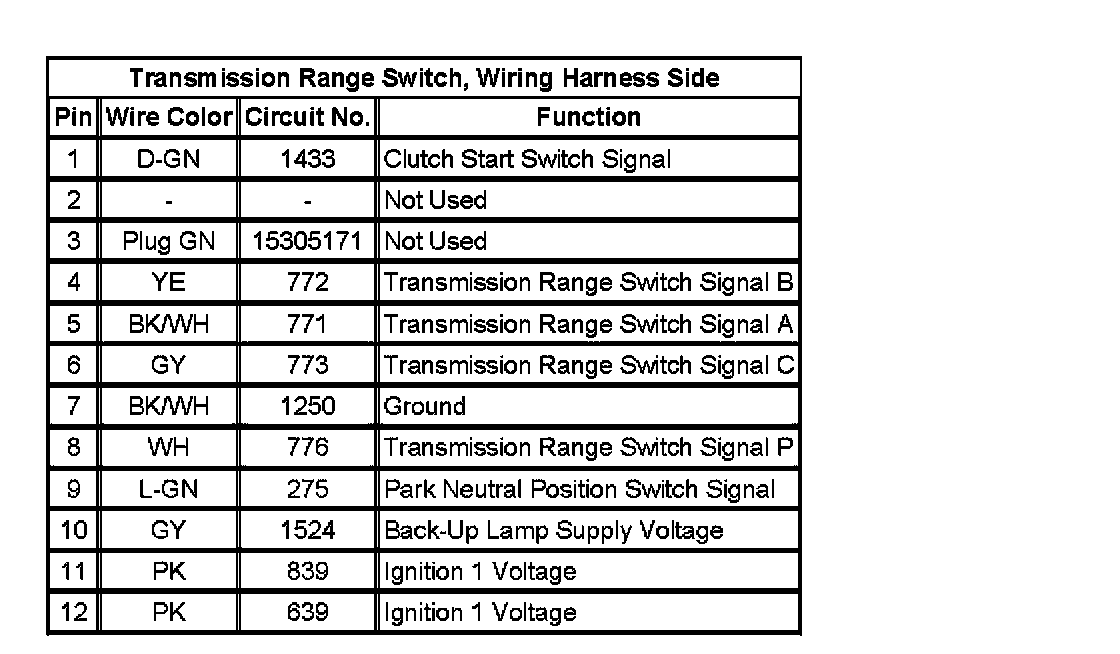

Transmission Range Switch, Wiring Harness Side:
