Power and Ground Distribution
>>
Relay Box
>>
Locations
>>

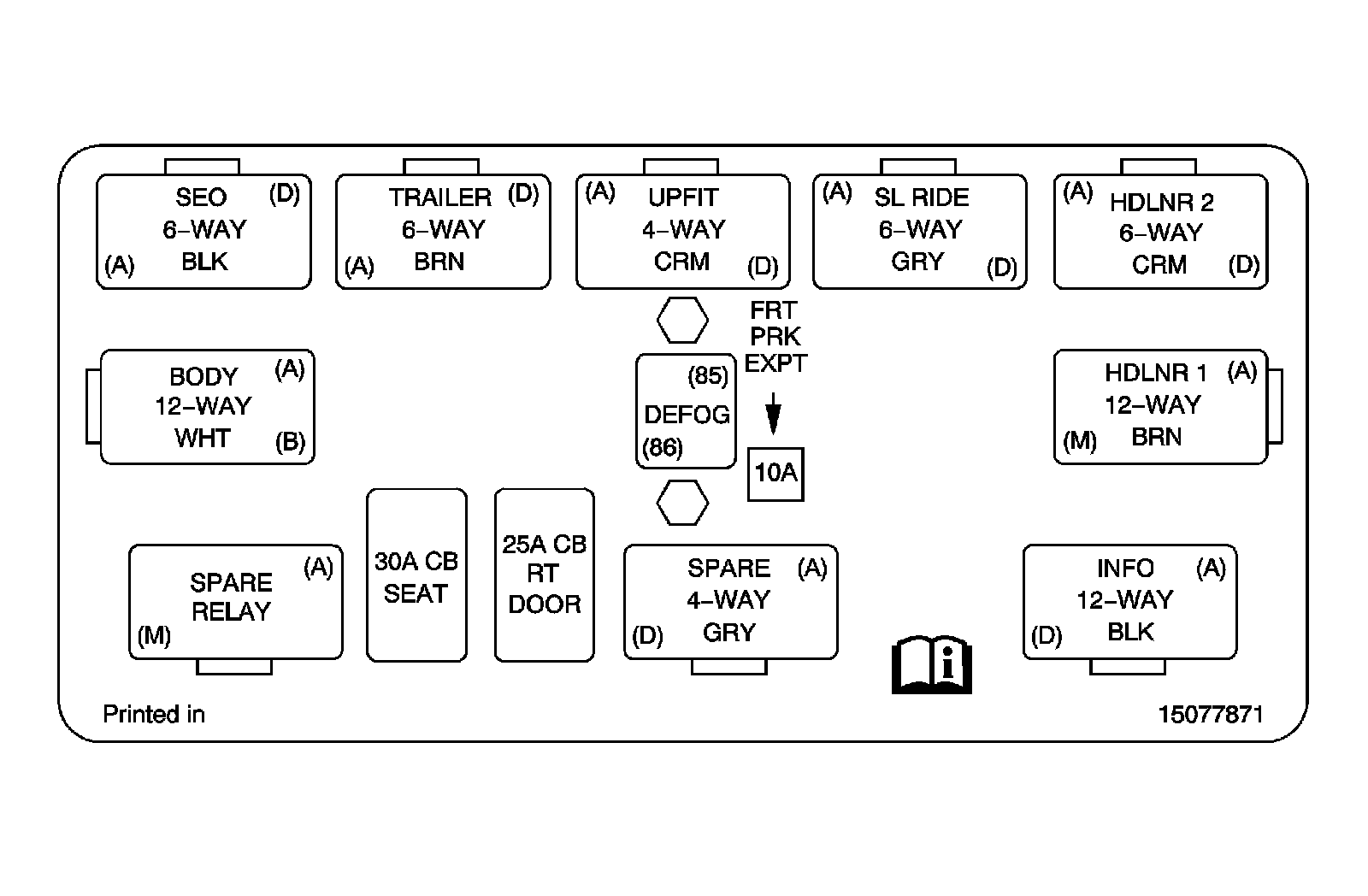

Electrical Center Identification Views
Electrical Center Identification Views
Electrical Center Identification Views

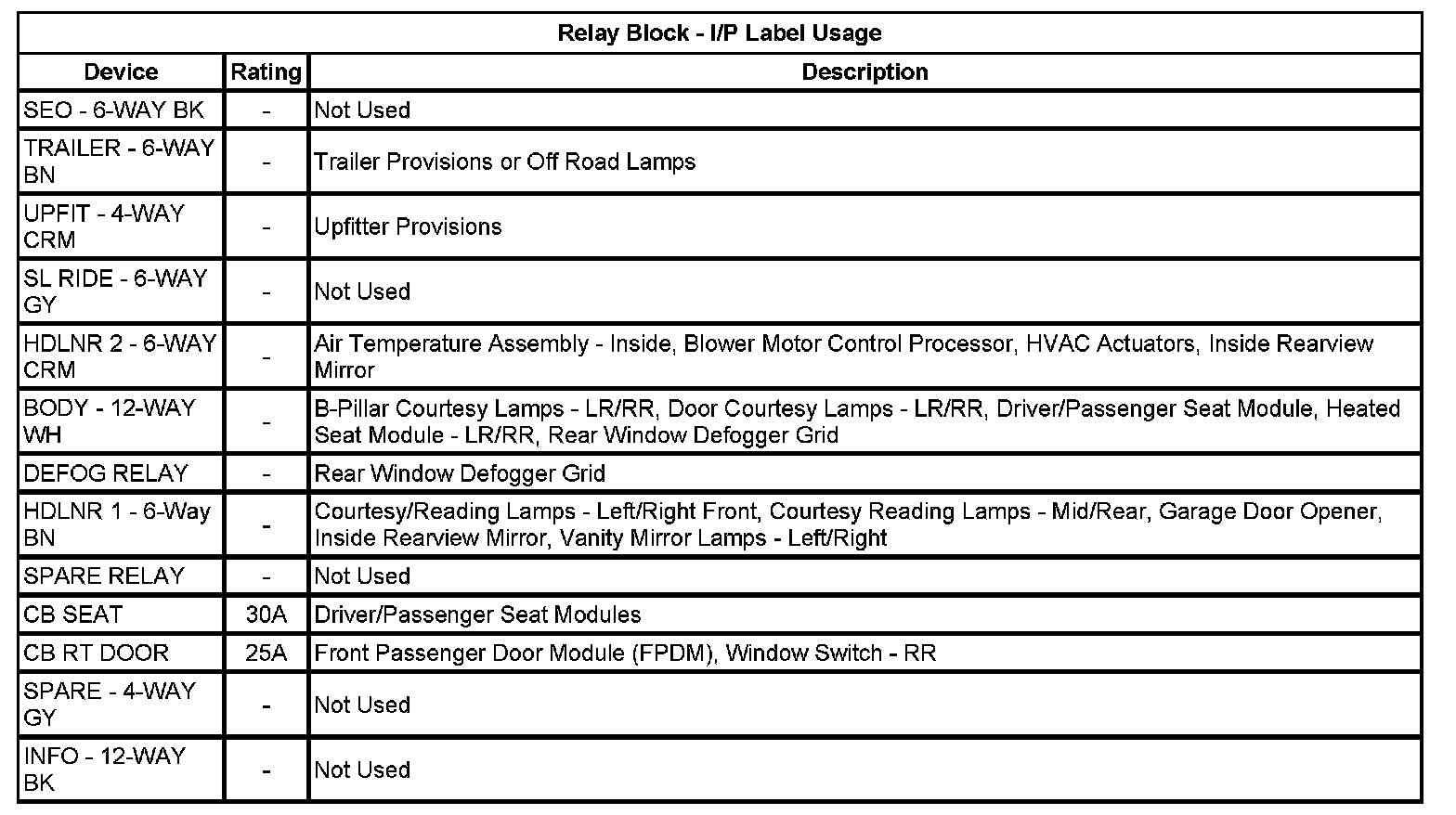

Relay Block - I/P Label
