Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Windshield Washer Control Module

Windshield Washer Control Module

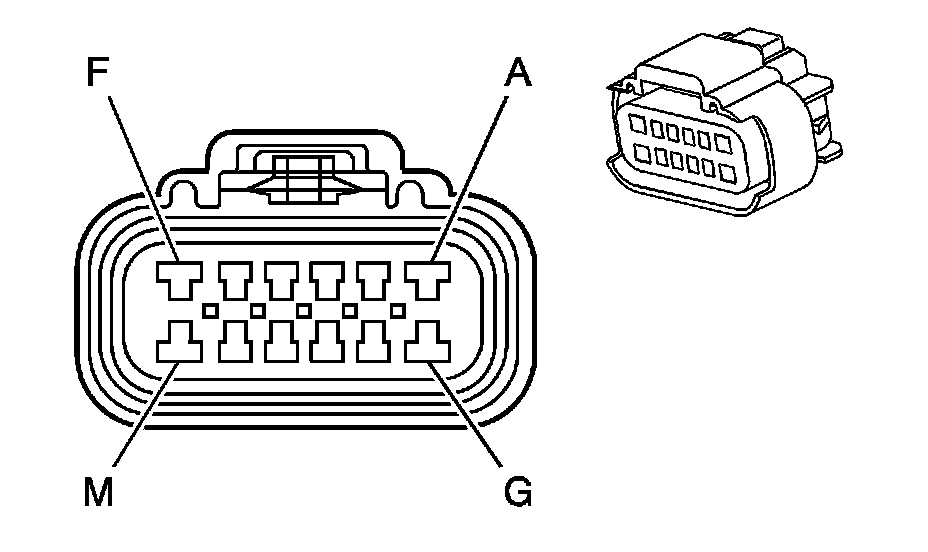

Wiper/Washer Connector End Views

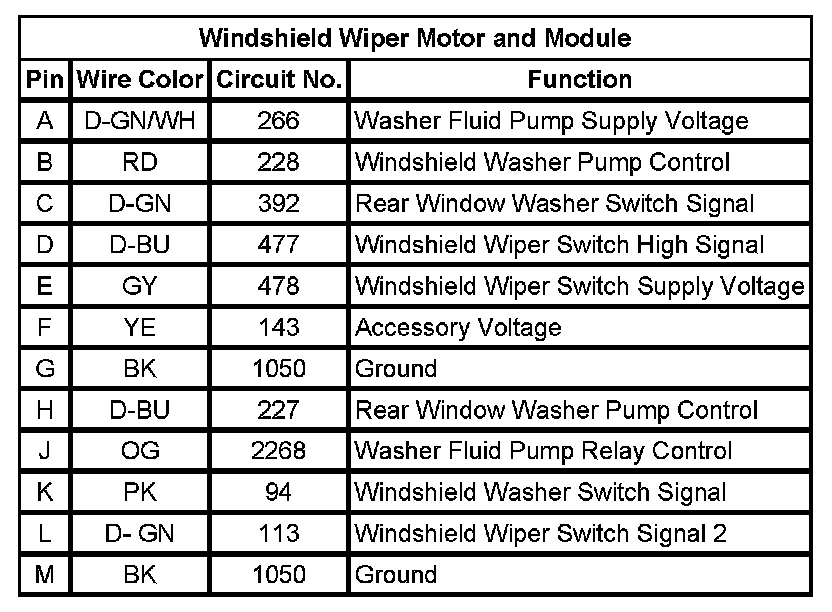

Windshield Wiper Motor and Module
