Transfer Case Control Connector End Views

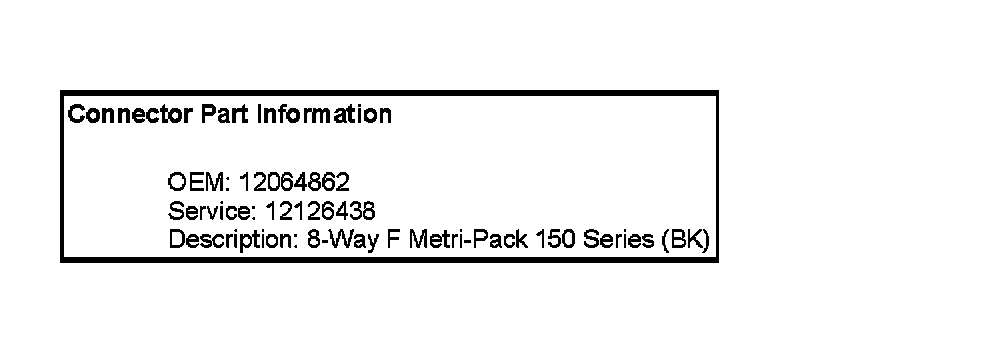

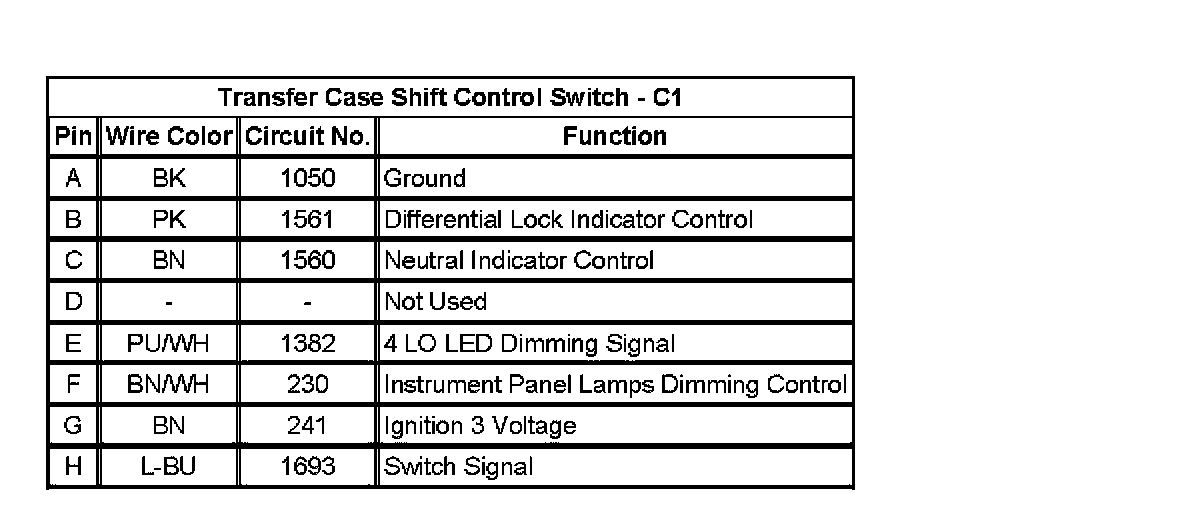

Transfer Case Shift Control Switch - C1







Transfer Case Shift Control Switch - C1:

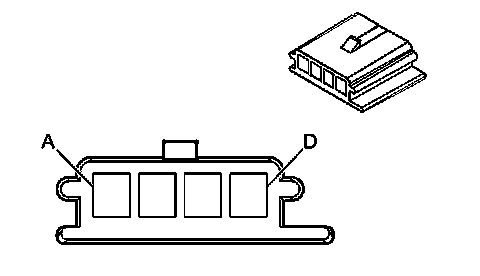

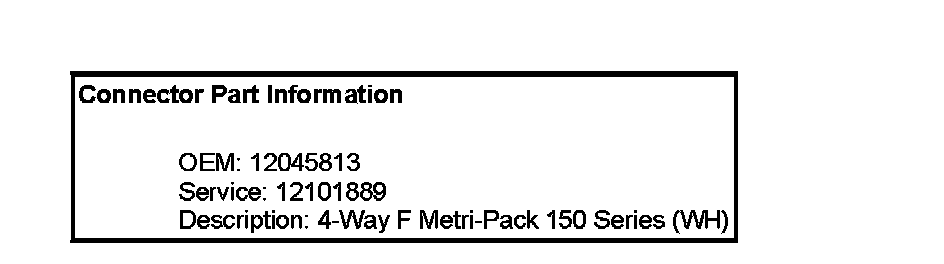

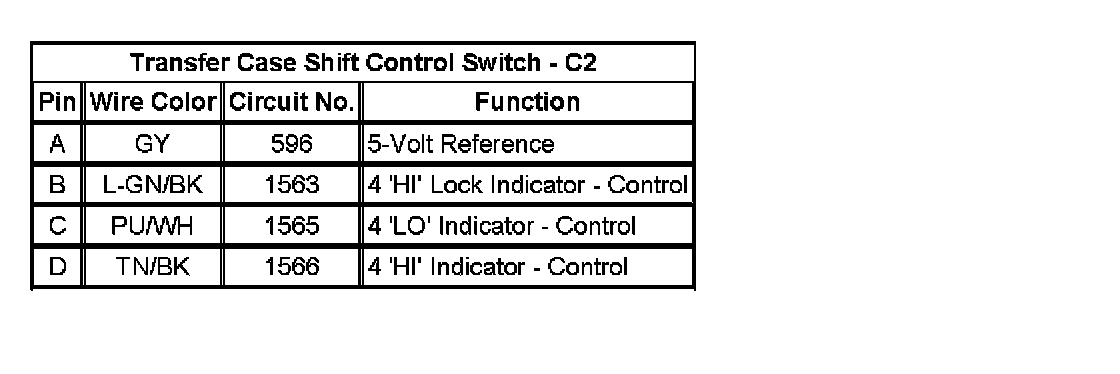

Transfer Case Shift Control Switch - C2







Transfer Case Shift Control Switch - C2:
