Control Module, Transfer Case



Transfer Case Control Connector End Views

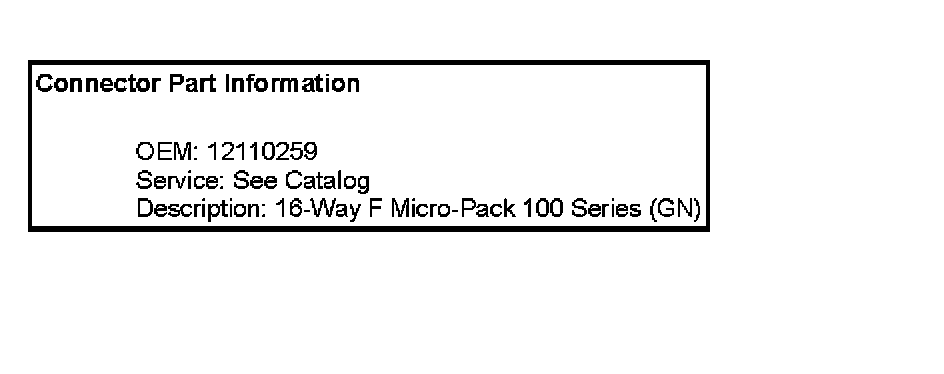

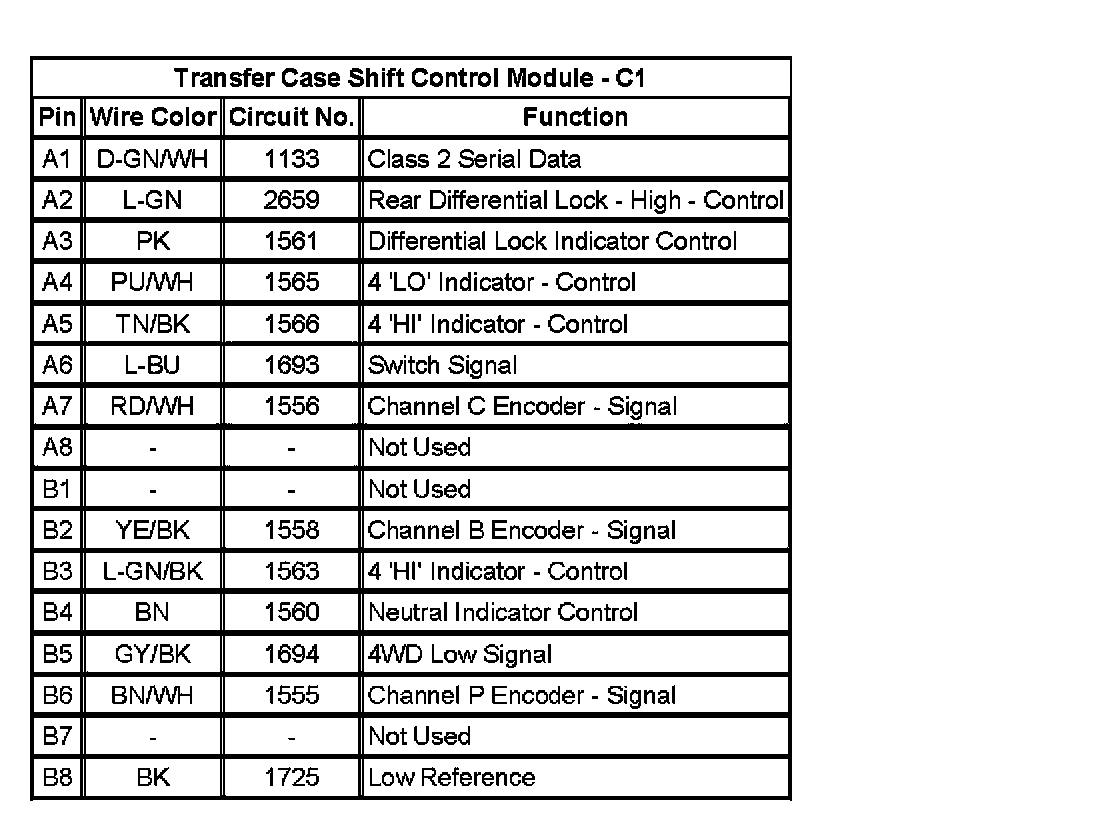

Transfer Case Shift Control Module - C1:

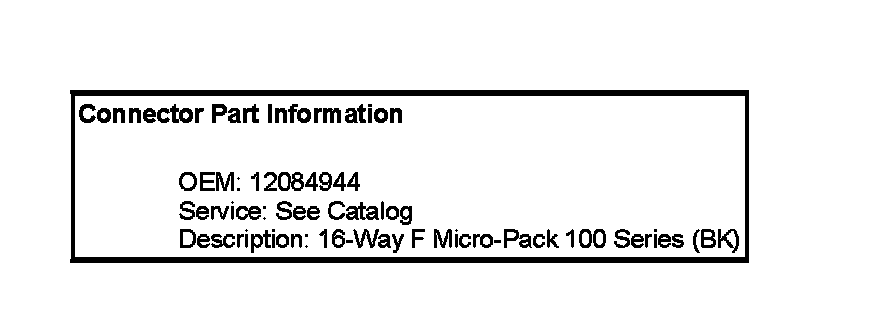

Transfer Case Shift Control Module - C1:

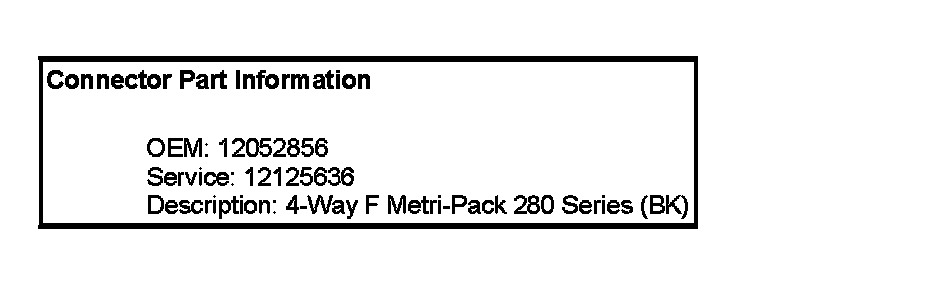

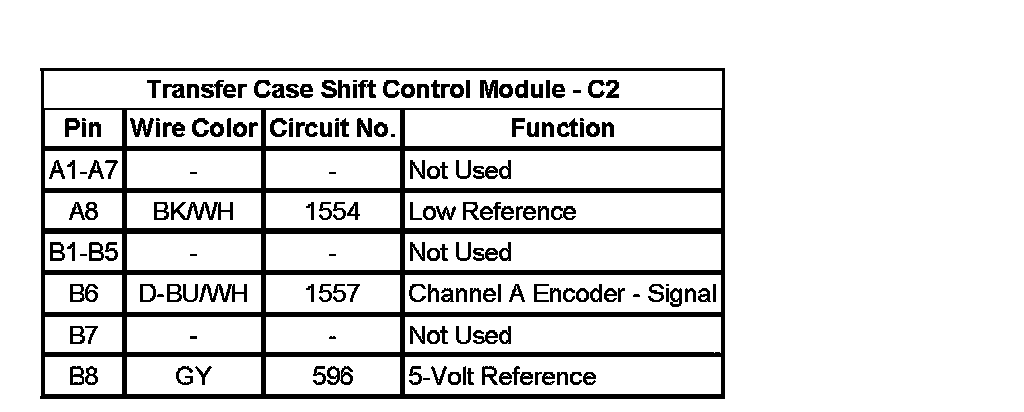

Transfer Case Shift Control Module - C2:

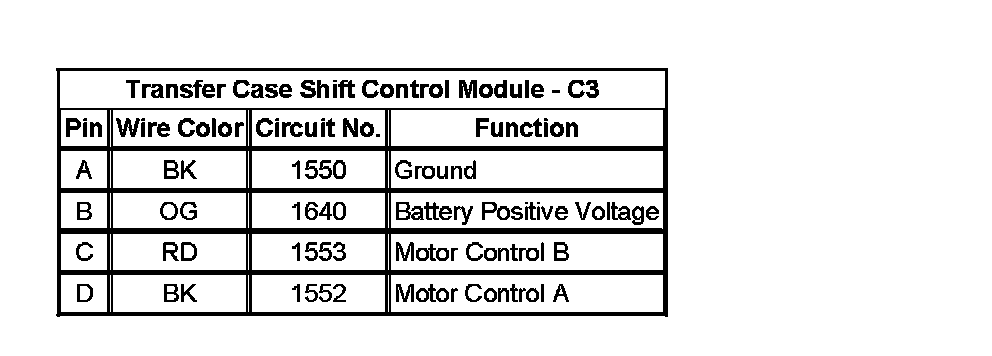

Transfer Case Shift Control Module - C3:







Transfer Case Shift Control Module - C3:
