Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Motor

Power Window Motor



Vehicle Access Connector End Views

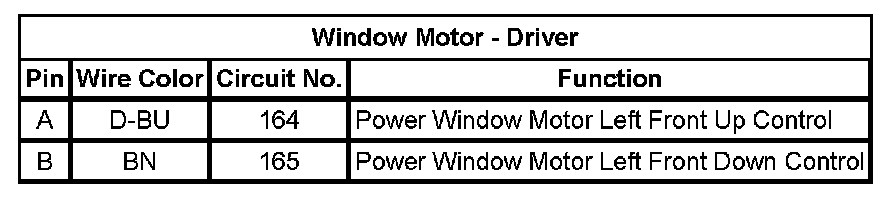

Window Motor - Driver

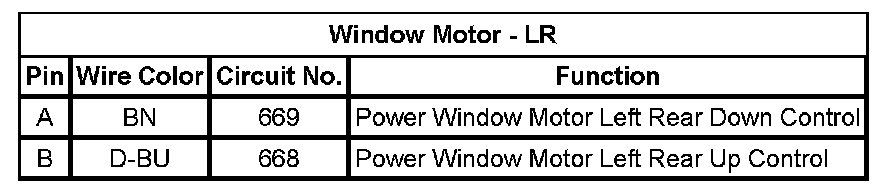

Window Motor - LR

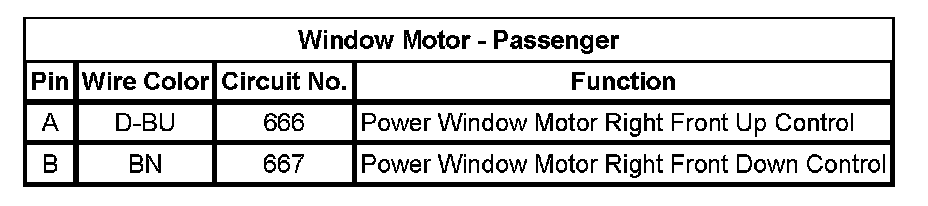

Window Motor - Passenger

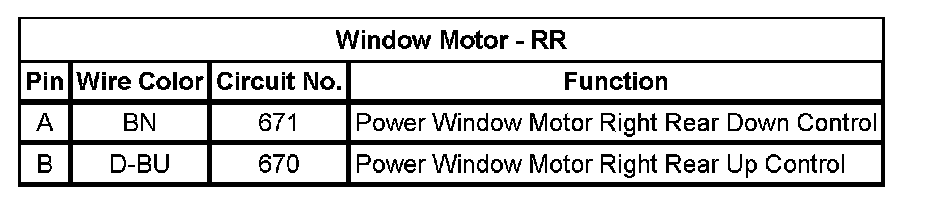

Window Motor - RR
