Power Trunk / Liftgate Control Module
Power Trunk / Liftgate Control Module
Window Systems Connector End Views

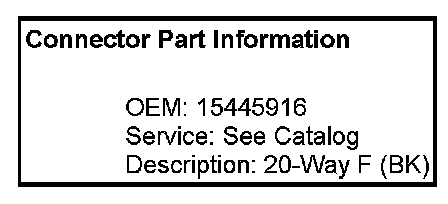

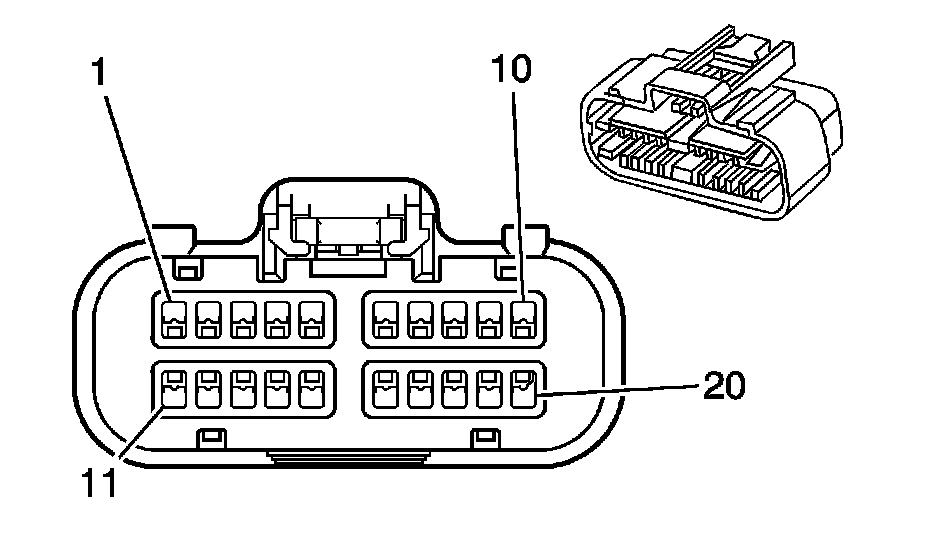

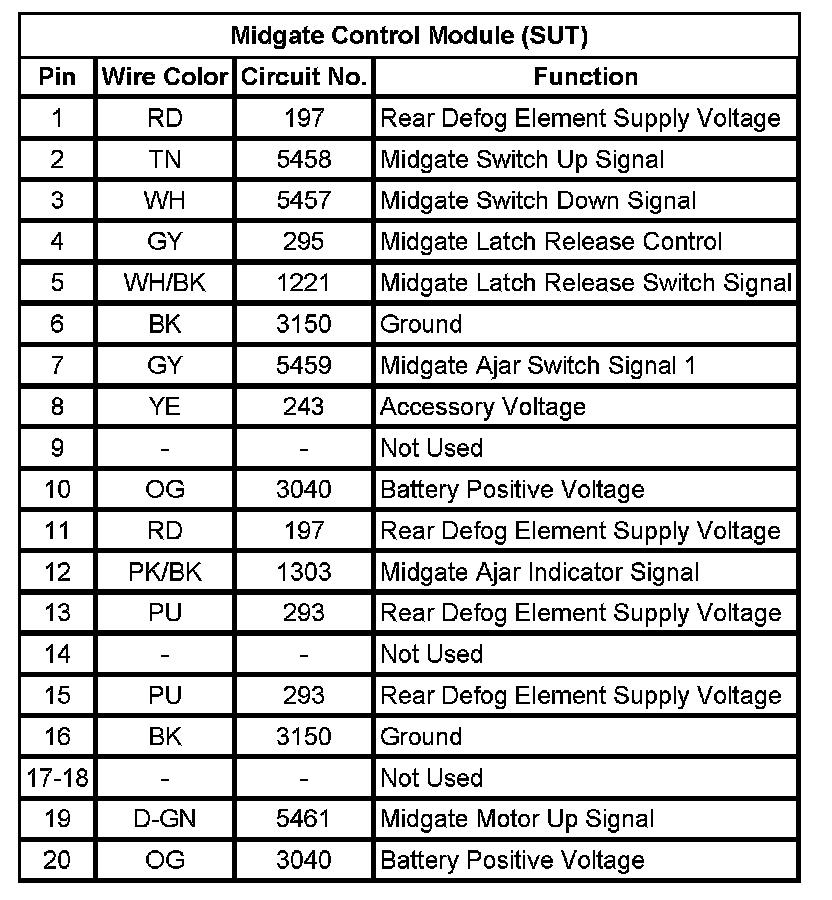

Midgate Control Module (SUT)
