Power Seat Connector End Views



Power Seat Connector End Views

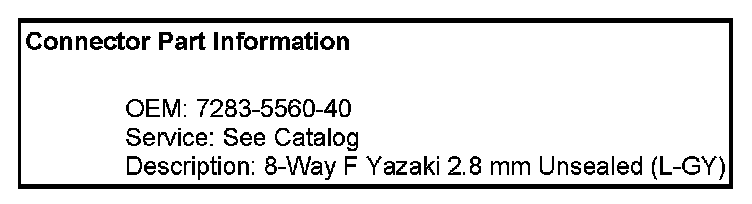

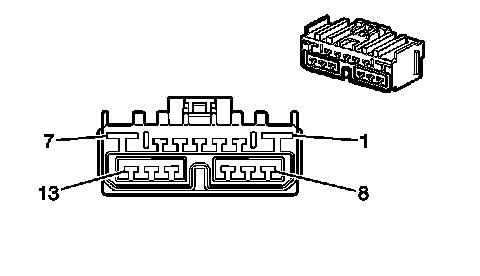

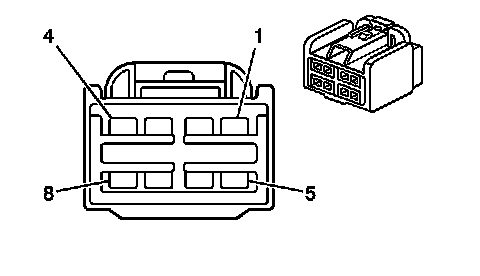

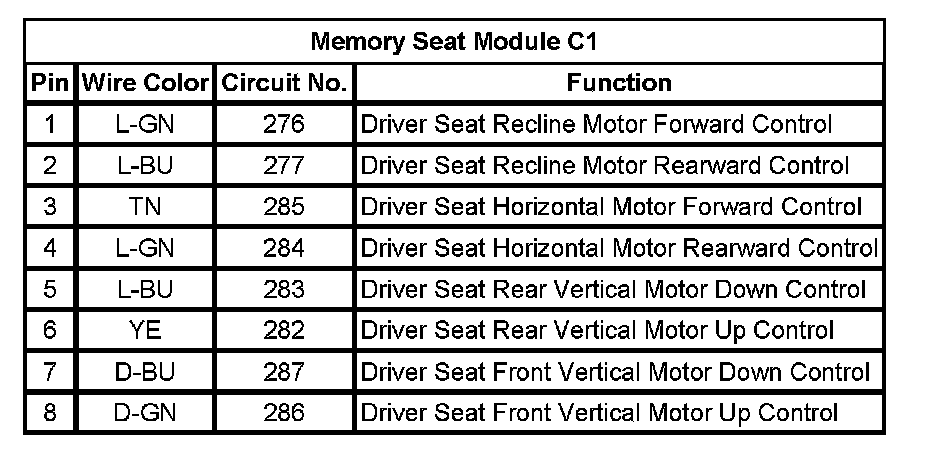

Memory Seat Module C1

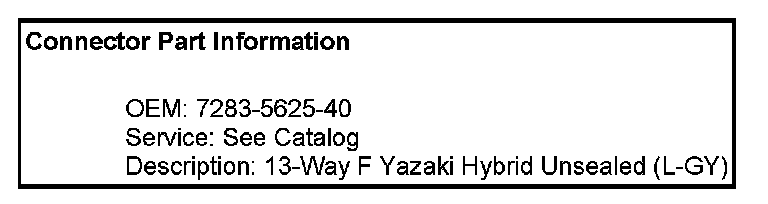

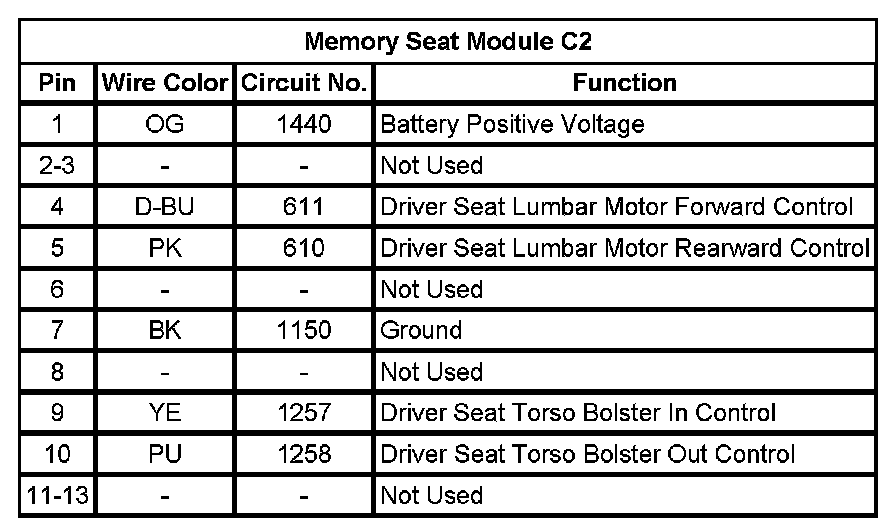

Memory Seat Module C2

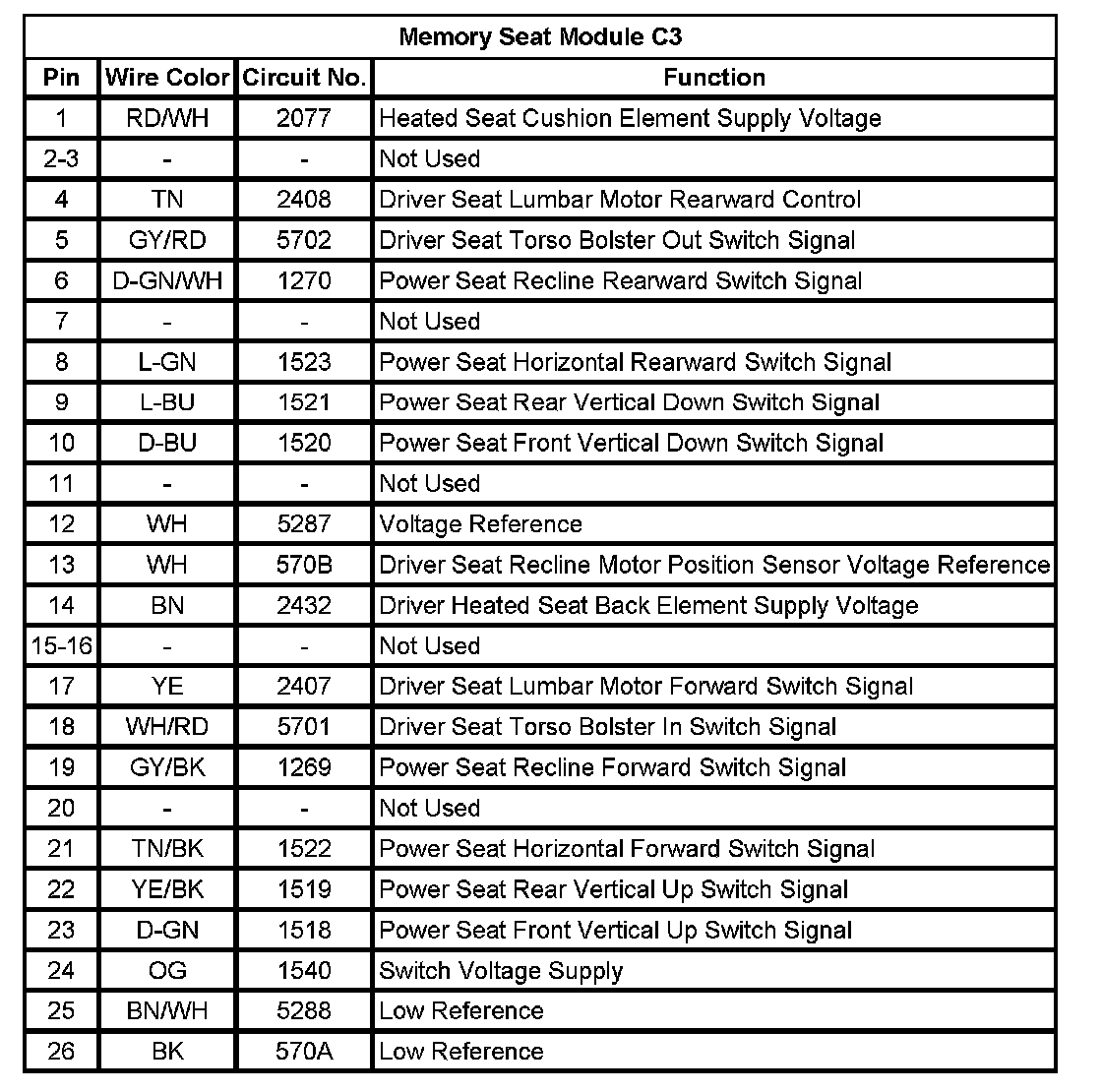

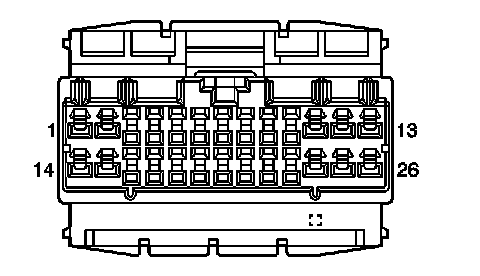

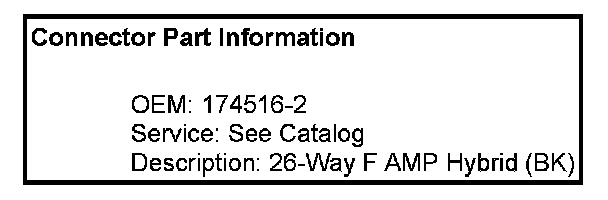

Memory Seat Module C3

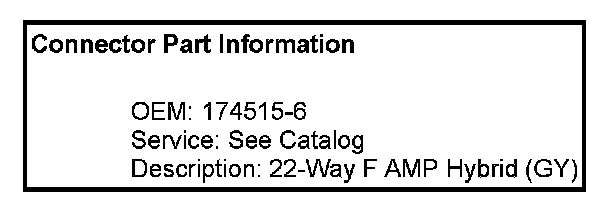

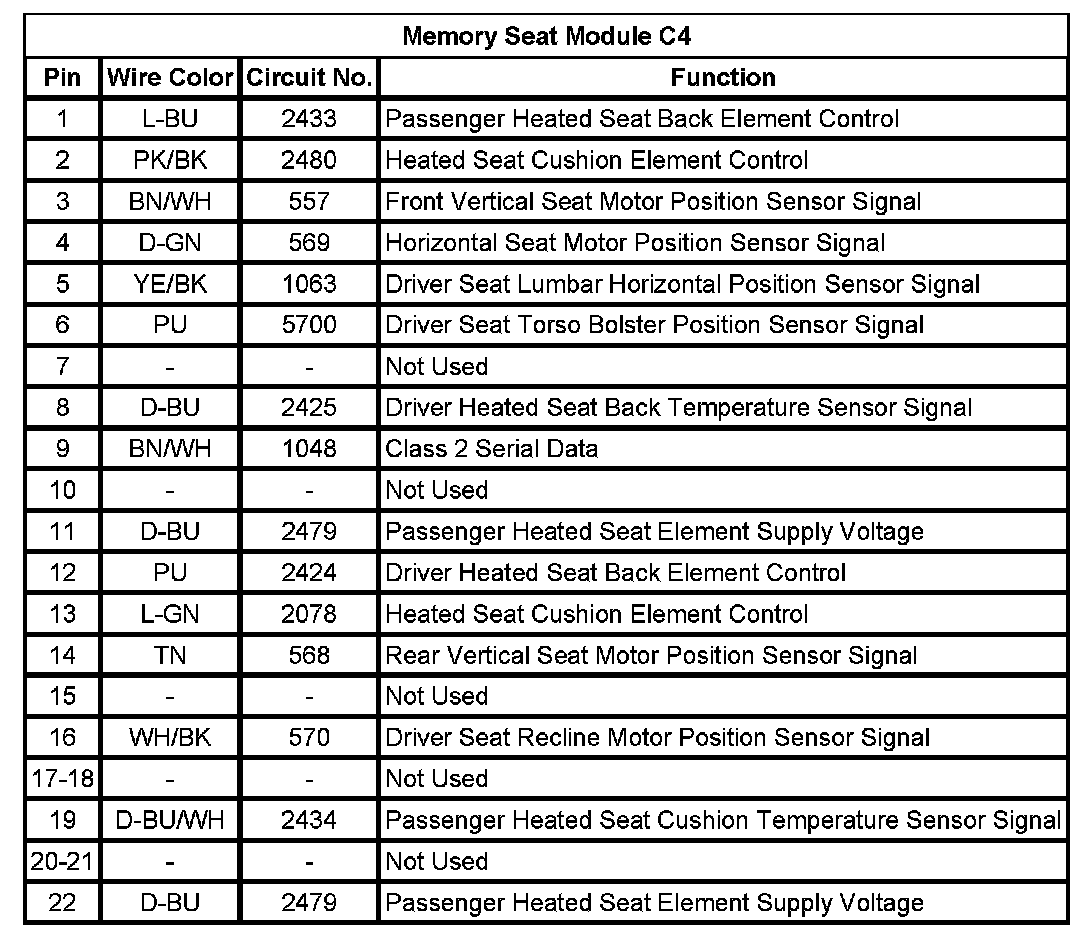

Memory Seat Module C4
