Fuel Injector

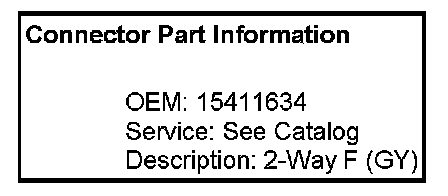

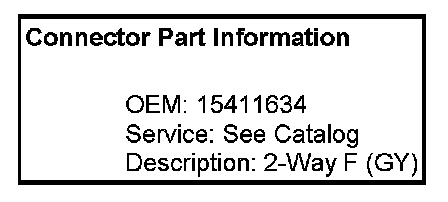

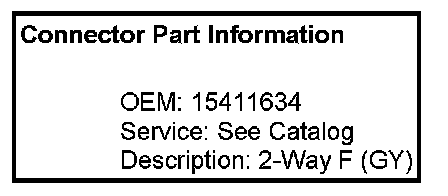

Engine Controls Connector End Views

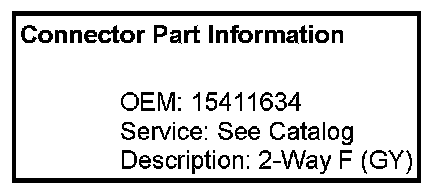

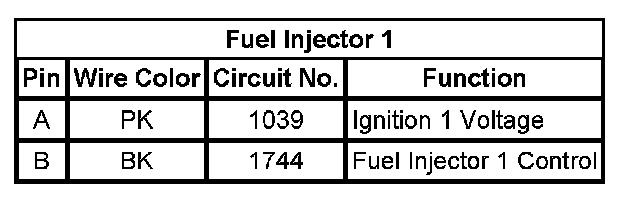

Fuel Injector 1

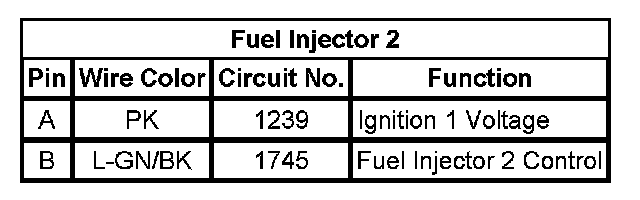

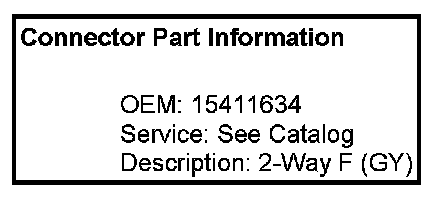

Fuel Injector 2

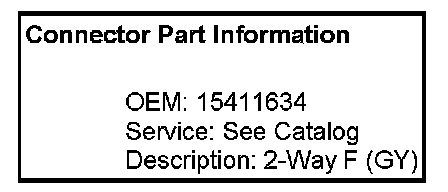

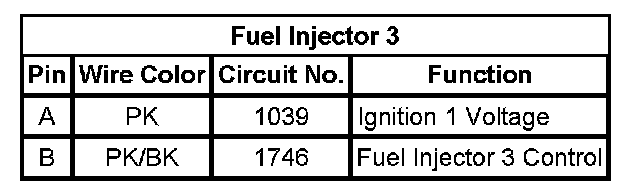

Fuel Injector 3

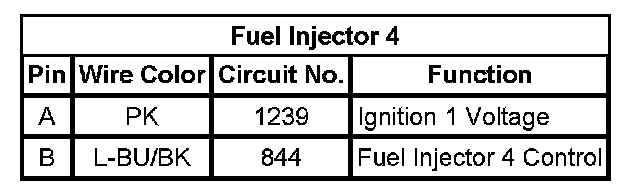

Fuel Injector 4

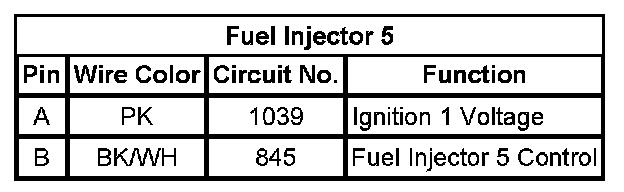

Fuel Injector 5

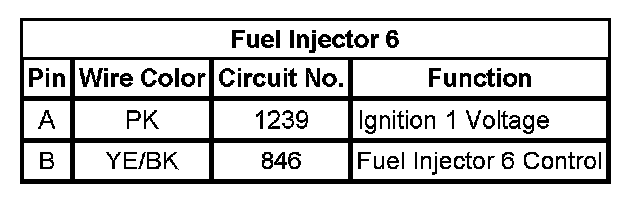

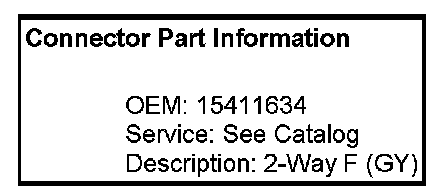

Fuel Injector 6

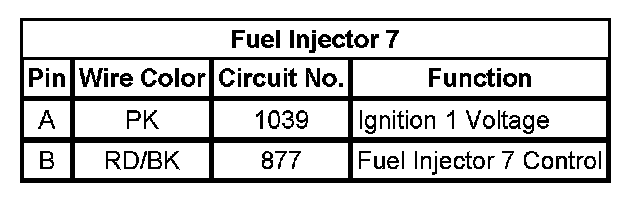

Fuel Injector 7

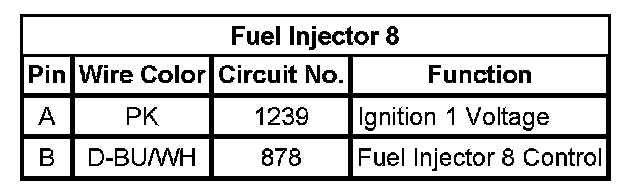

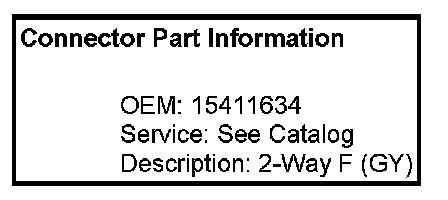

Fuel Injector 8
