Home >> Hummer >> 2007 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Electronic Brake Control Module

Electronic Brake Control Module

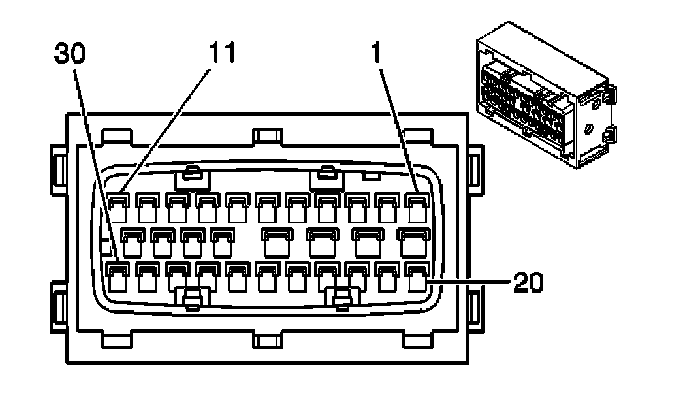

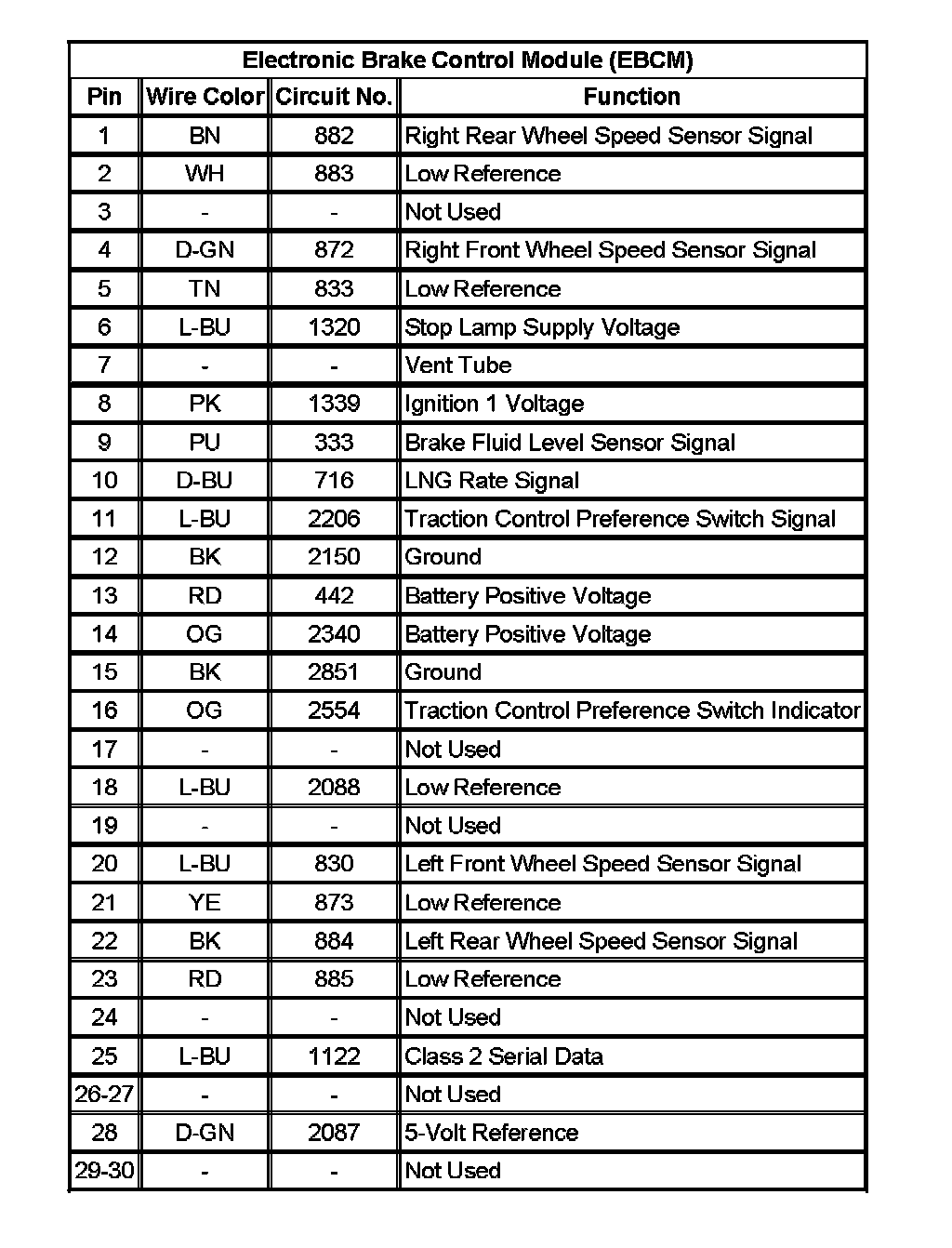

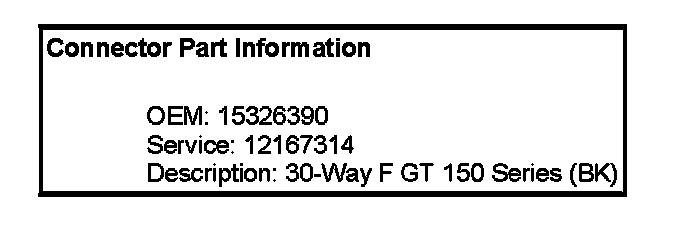

Electronic Brake Control Module (EBCM)

Electronic Brake Control Module (EBCM):
