Ignition Coil: Diagrams

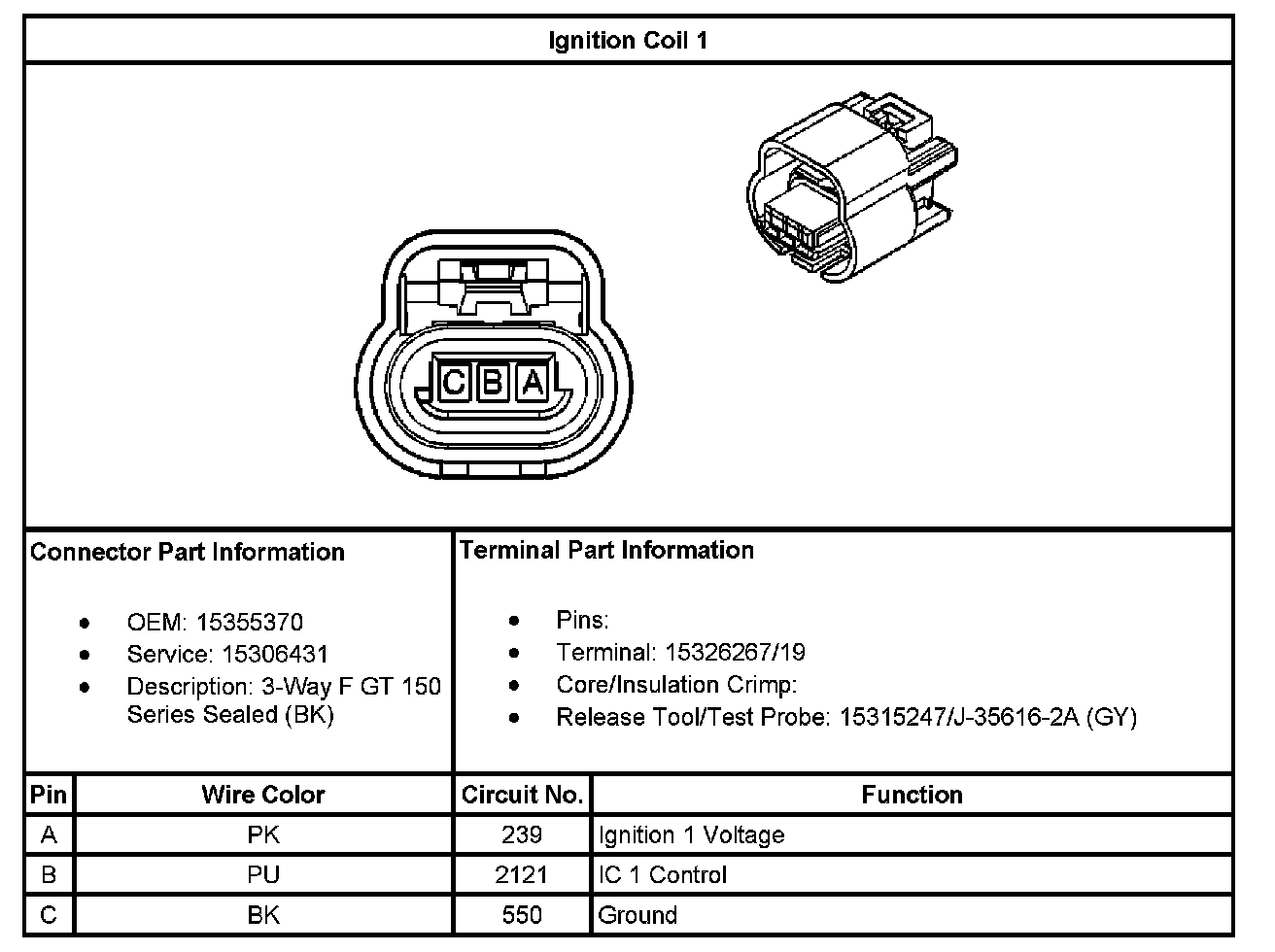

Ignition Coil 1:

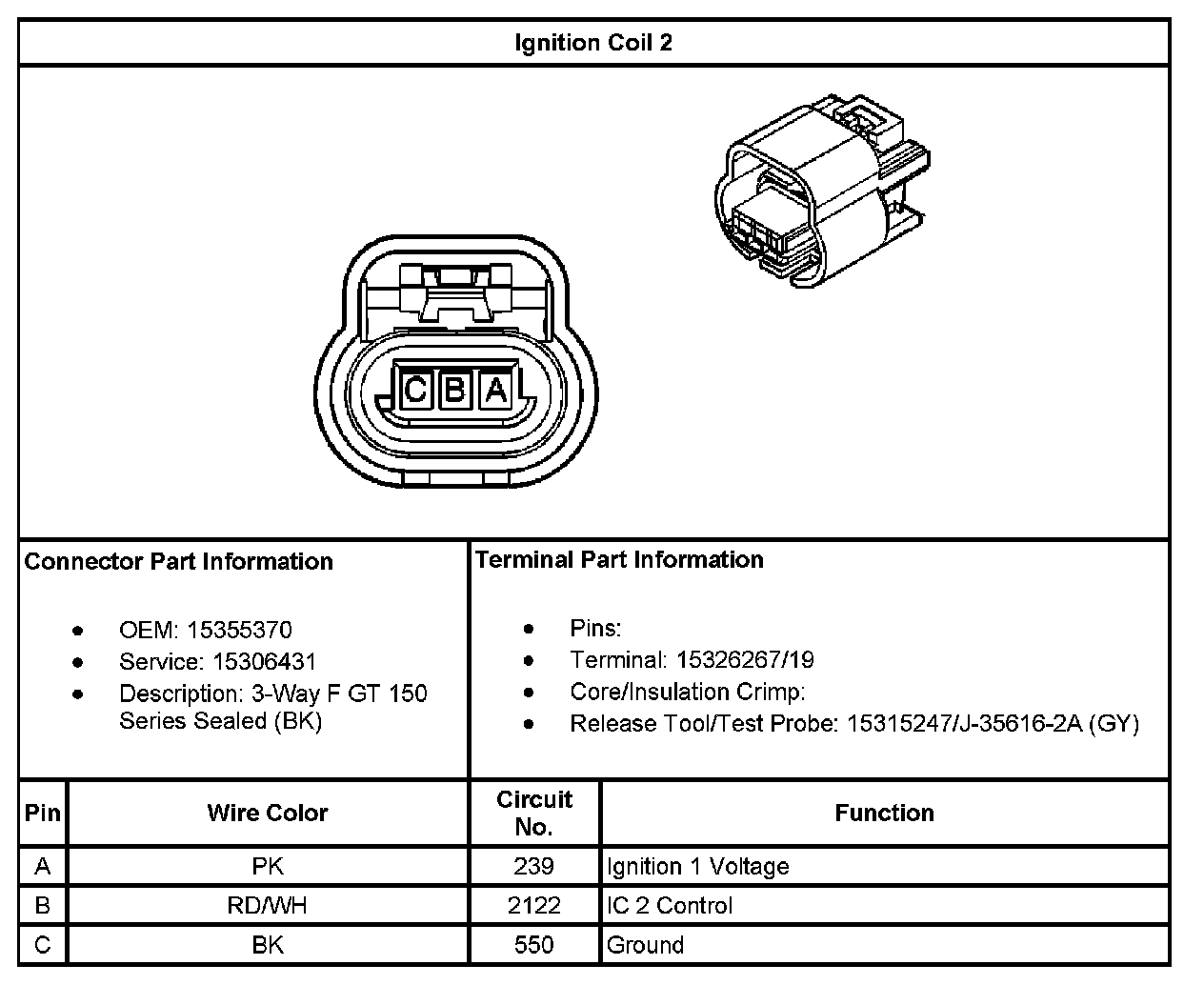

Ignition Coil 2:

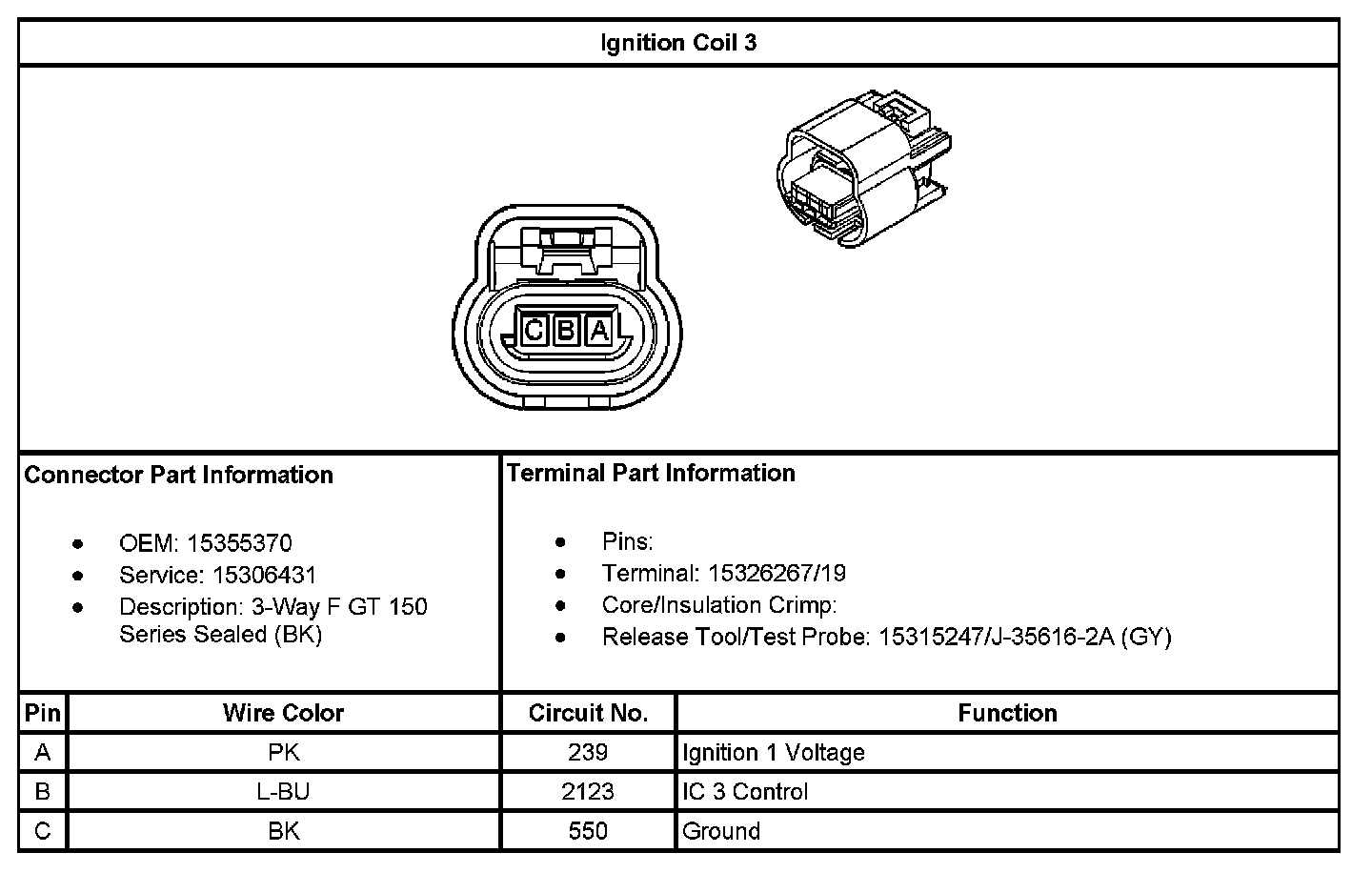

Ignition Coil 3:

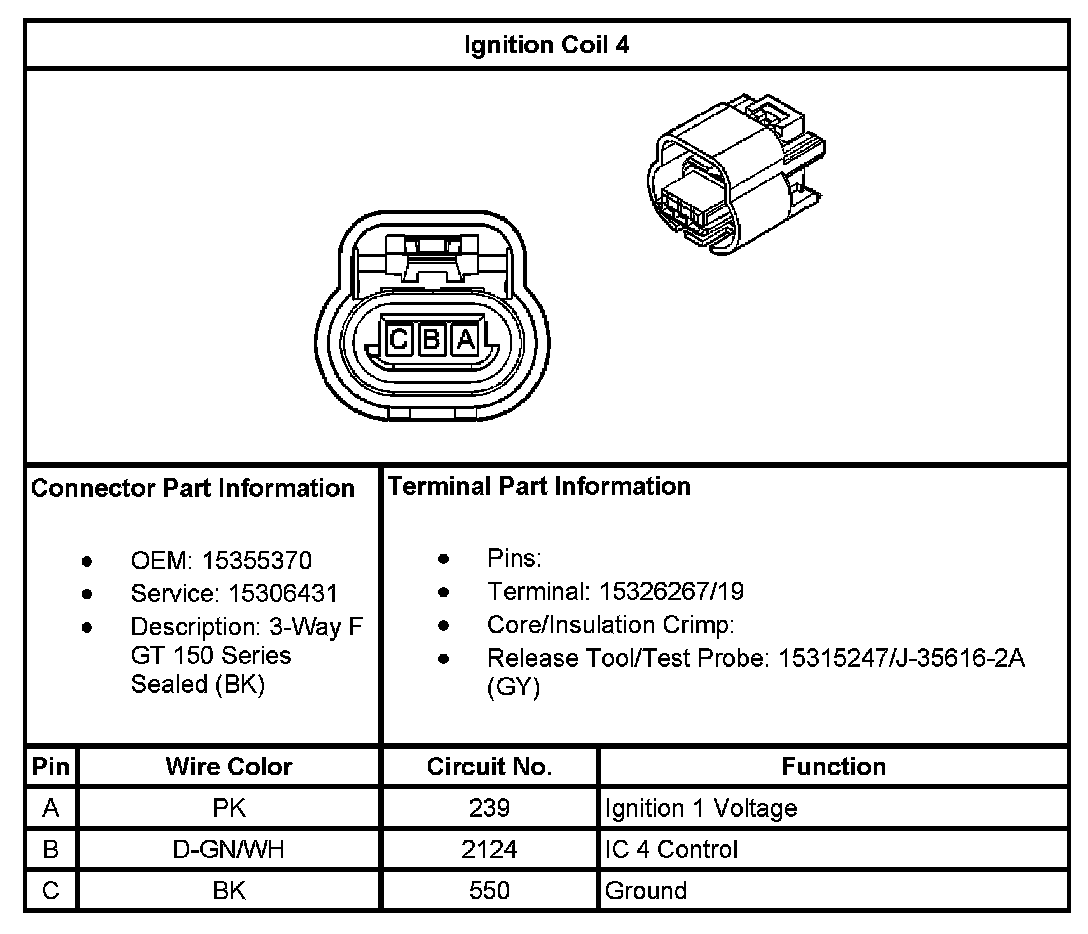

Ignition Coil 4:

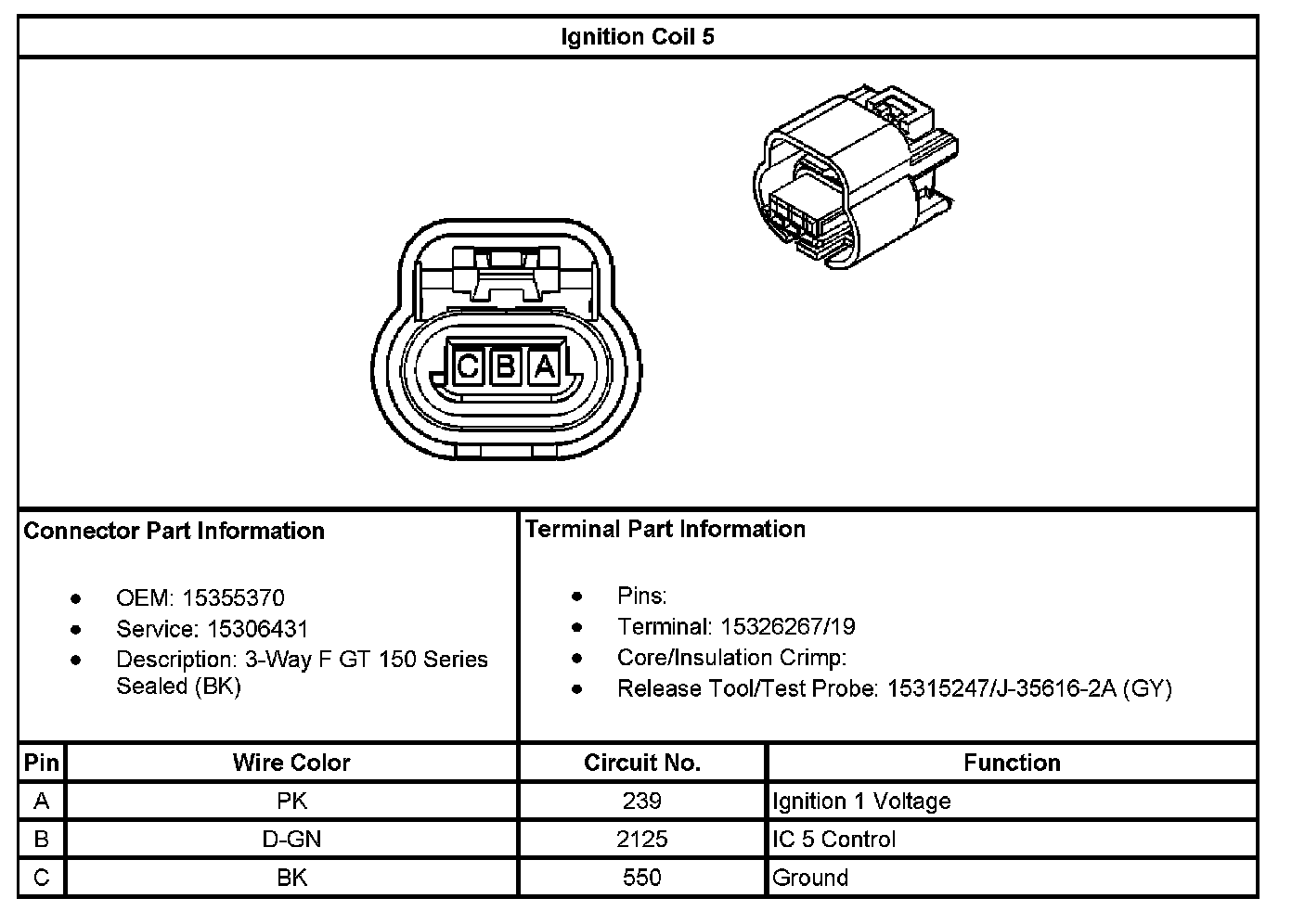

Ignition Coil 5:
