Home >> Hummer >> 2006 >> H3 L5-3.5L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

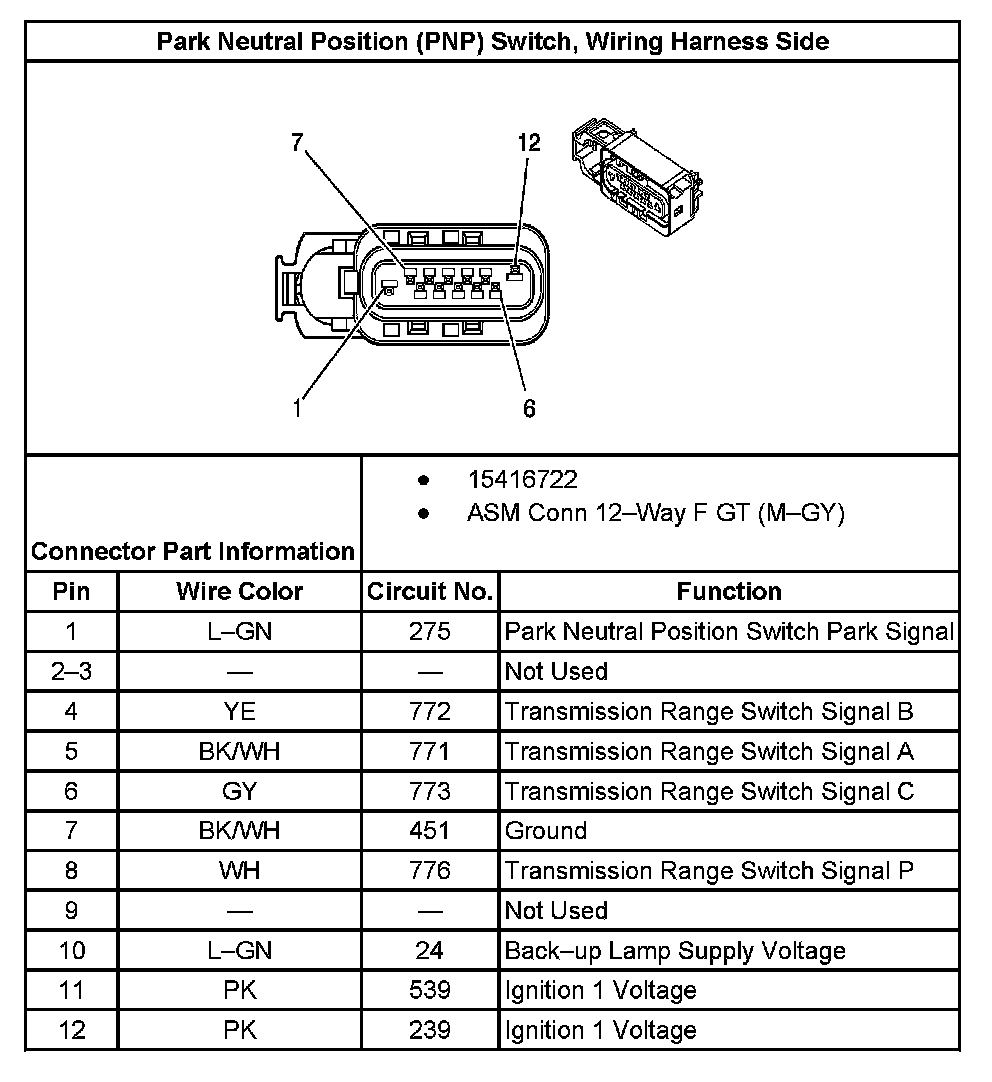

Park Neutral Position Switch, Wiring Harness Side:
