Home >> Hummer >> 2006 >> H2 V8-6.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Level Sensor For ECM >> Diagrams

Oil Level Sensor For ECM: Diagrams

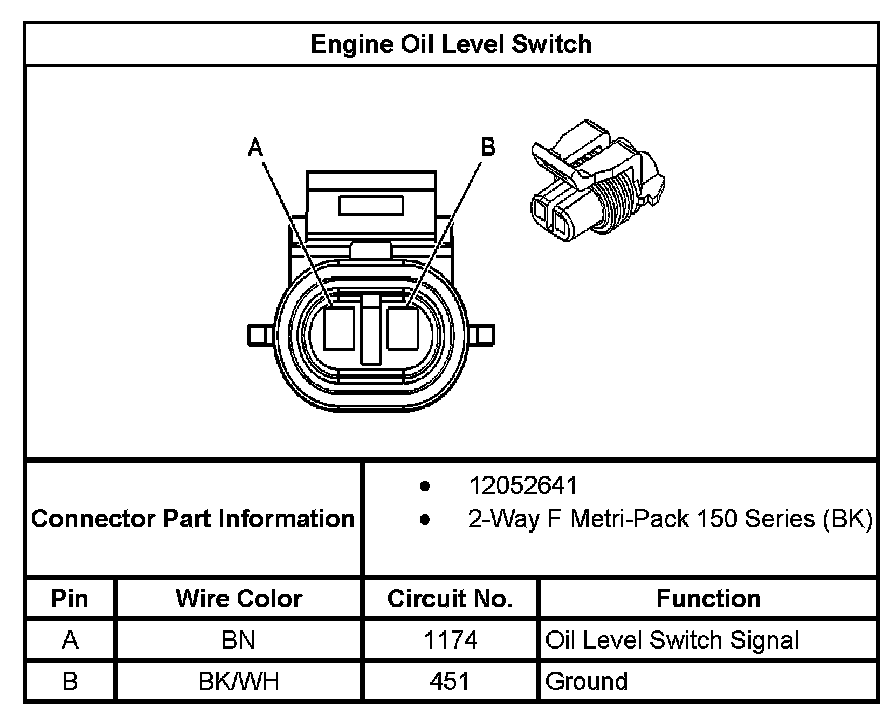

Engine Oil Level Switch:
