Hummer
>>
2006
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Relay Block I/P
Relay Block I/P

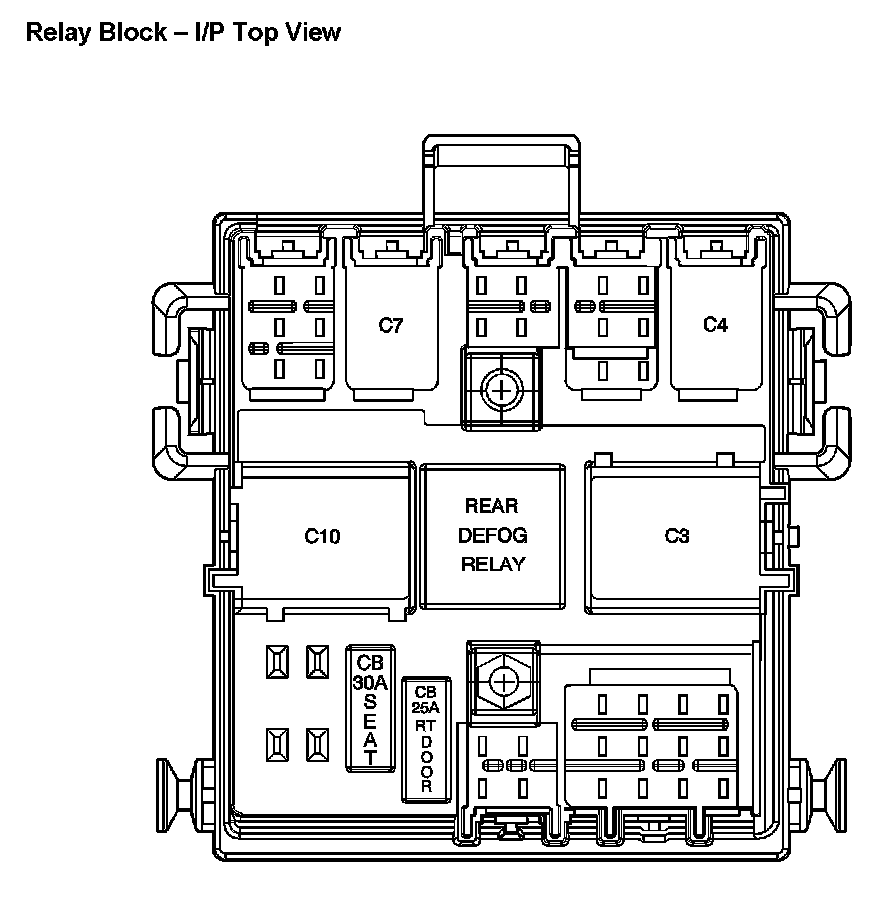

Location View:

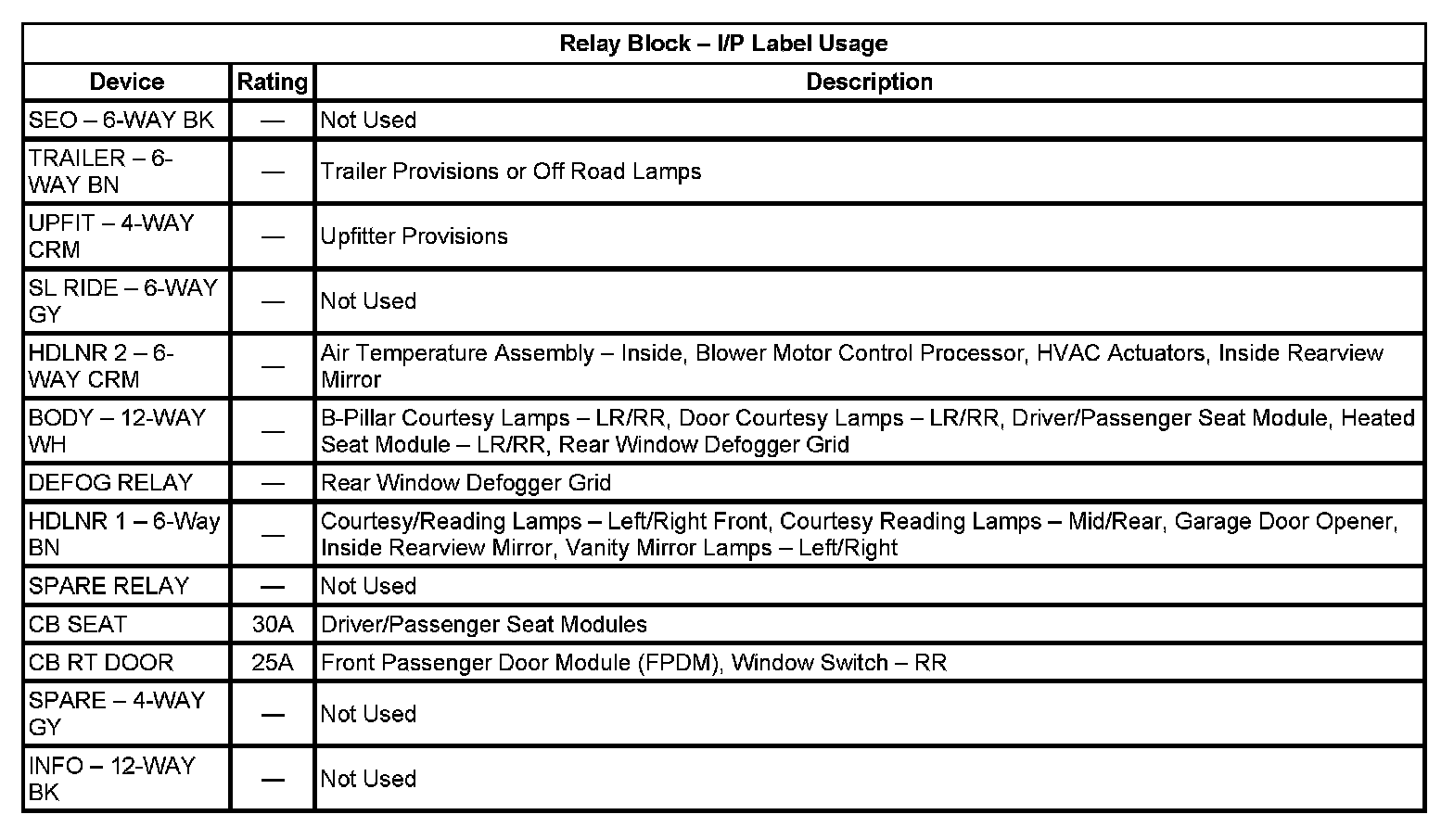

Application Table:

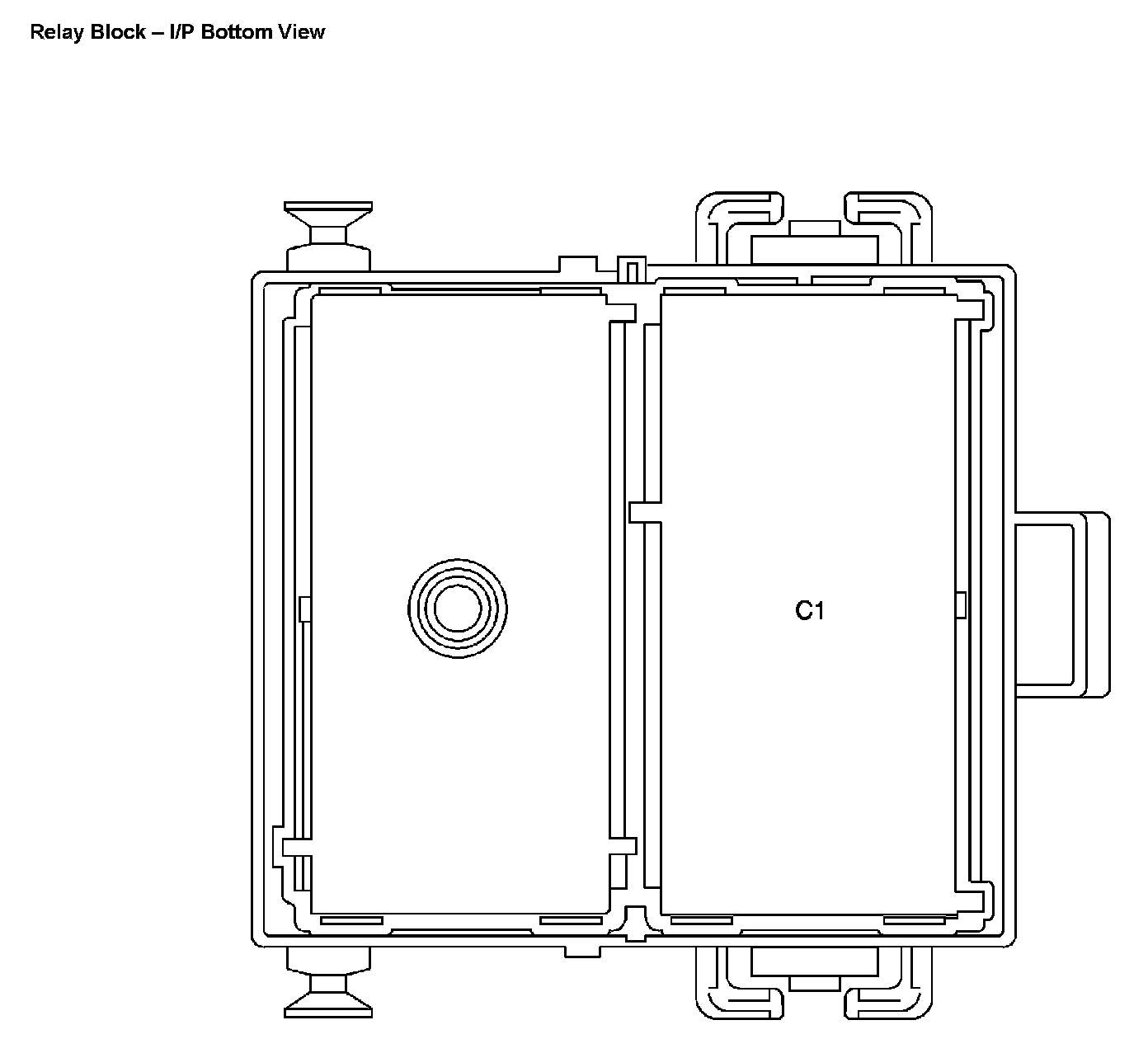

Location View:

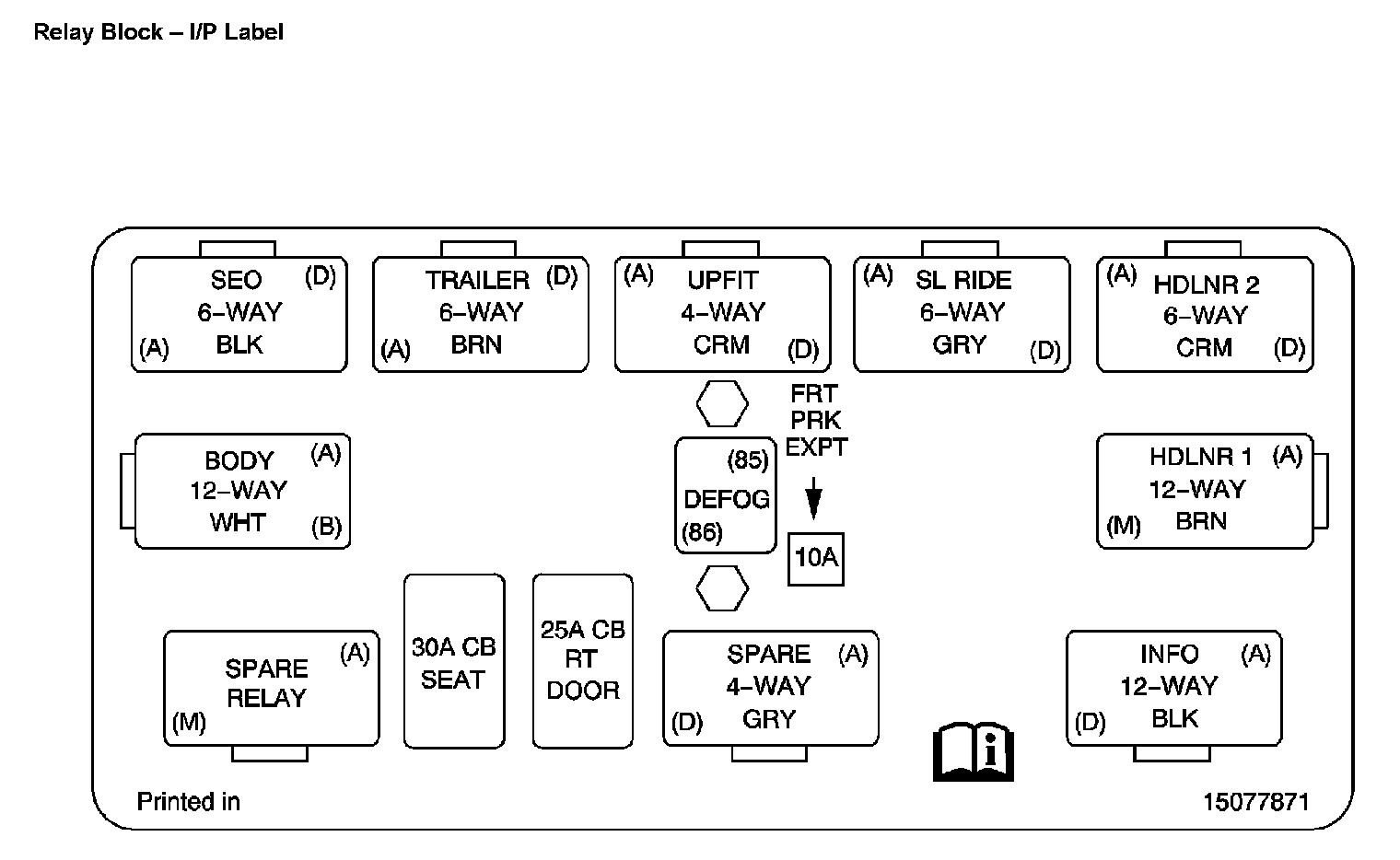

Location View:
