Home >> Hummer >> 2006 >> H1 V8-6.6L DSL Turbo >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Air Flow Meter/Sensor >> Diagrams

Air Flow Meter/Sensor: Diagrams

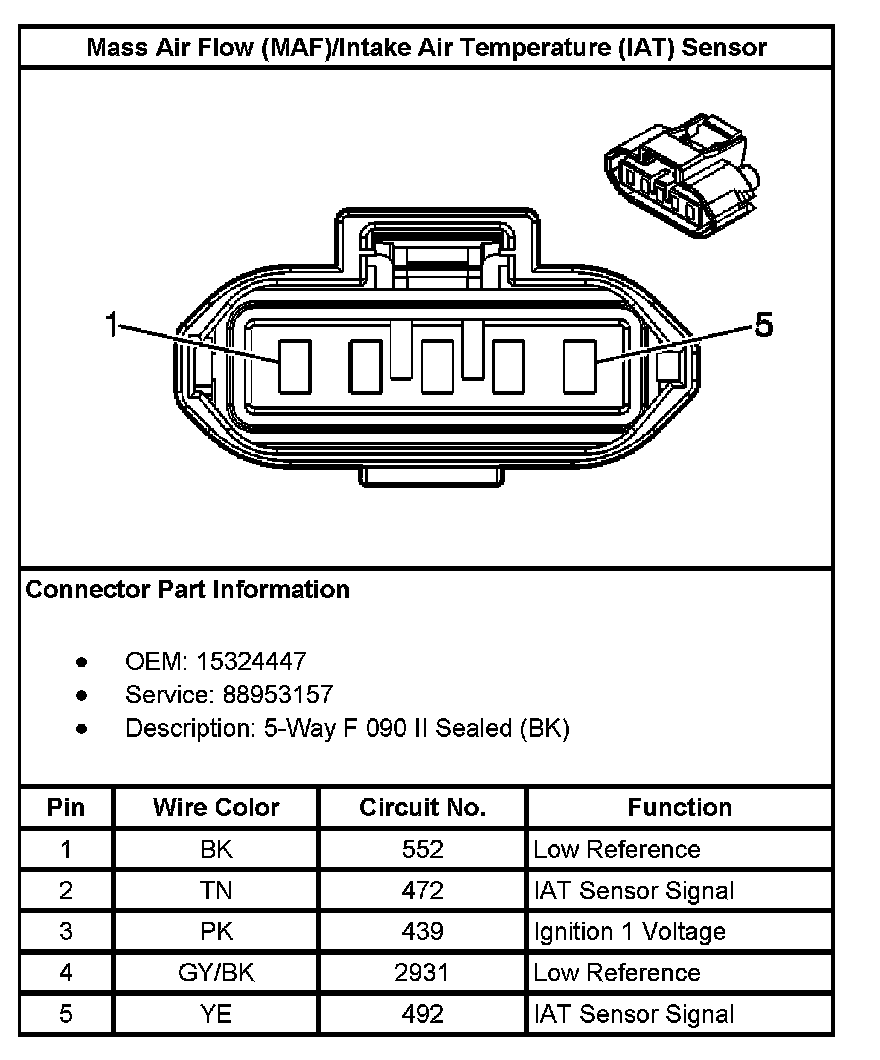

Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor:
