Home >> Hummer >> 2005 >> H2 V8-6.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

Data Link Connector: Locations

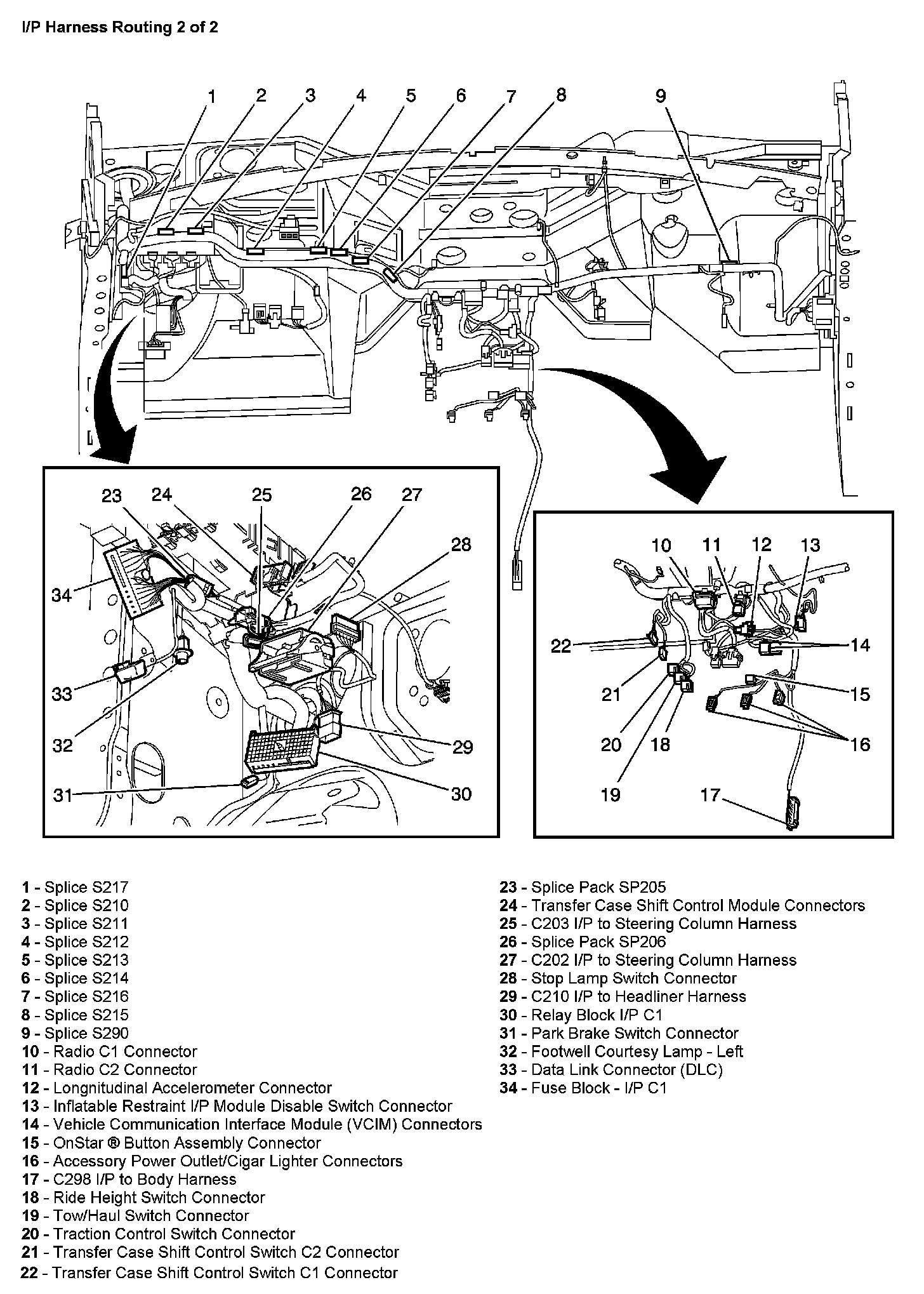

I/P Harness Routing Part 2:

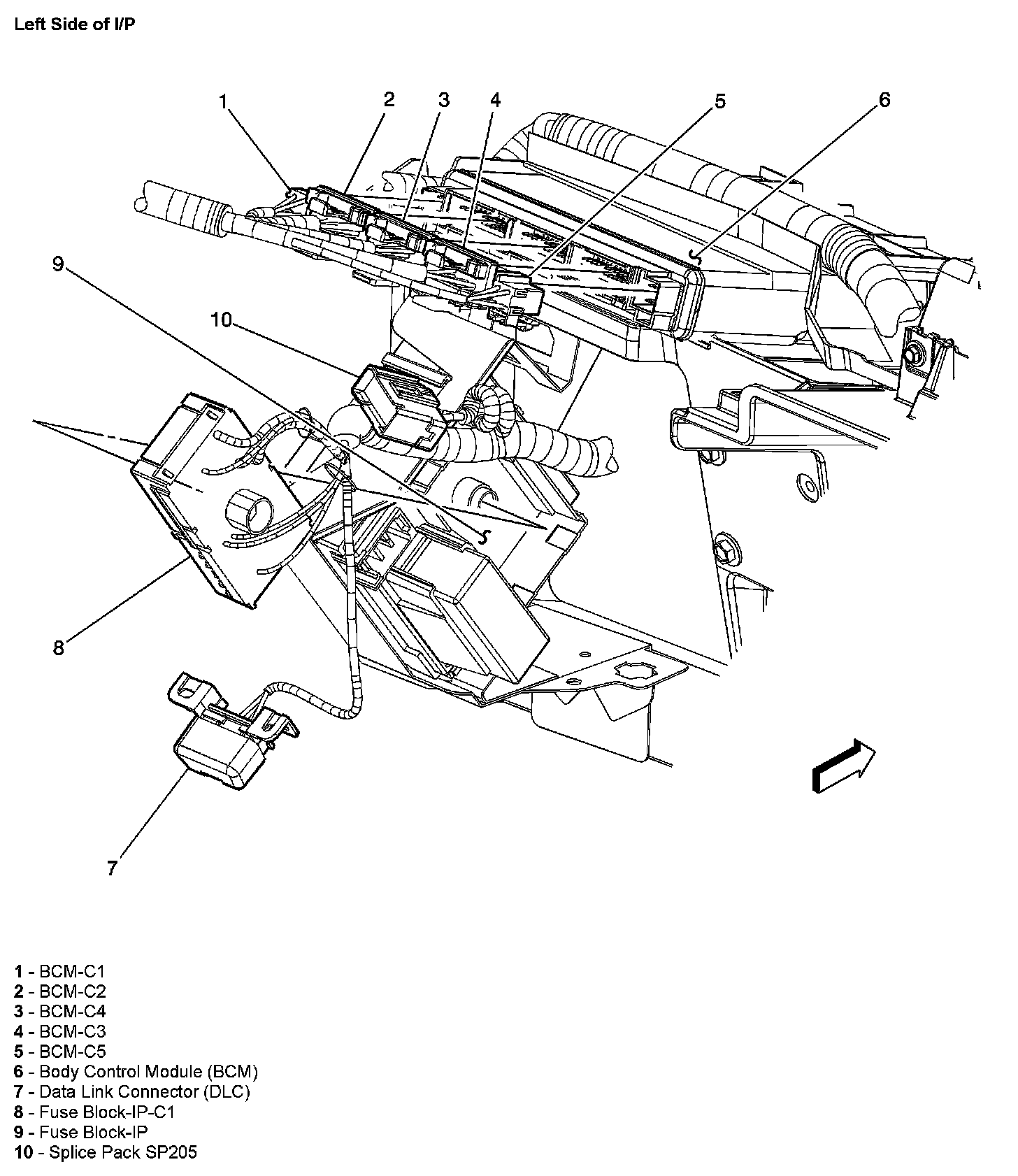

Left Side Of I/P:

Left Side Of I/P:
