Hummer
>>
2005
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Camshaft Position Sensor
>>
Diagrams
>>
Connector Views
Connector Views

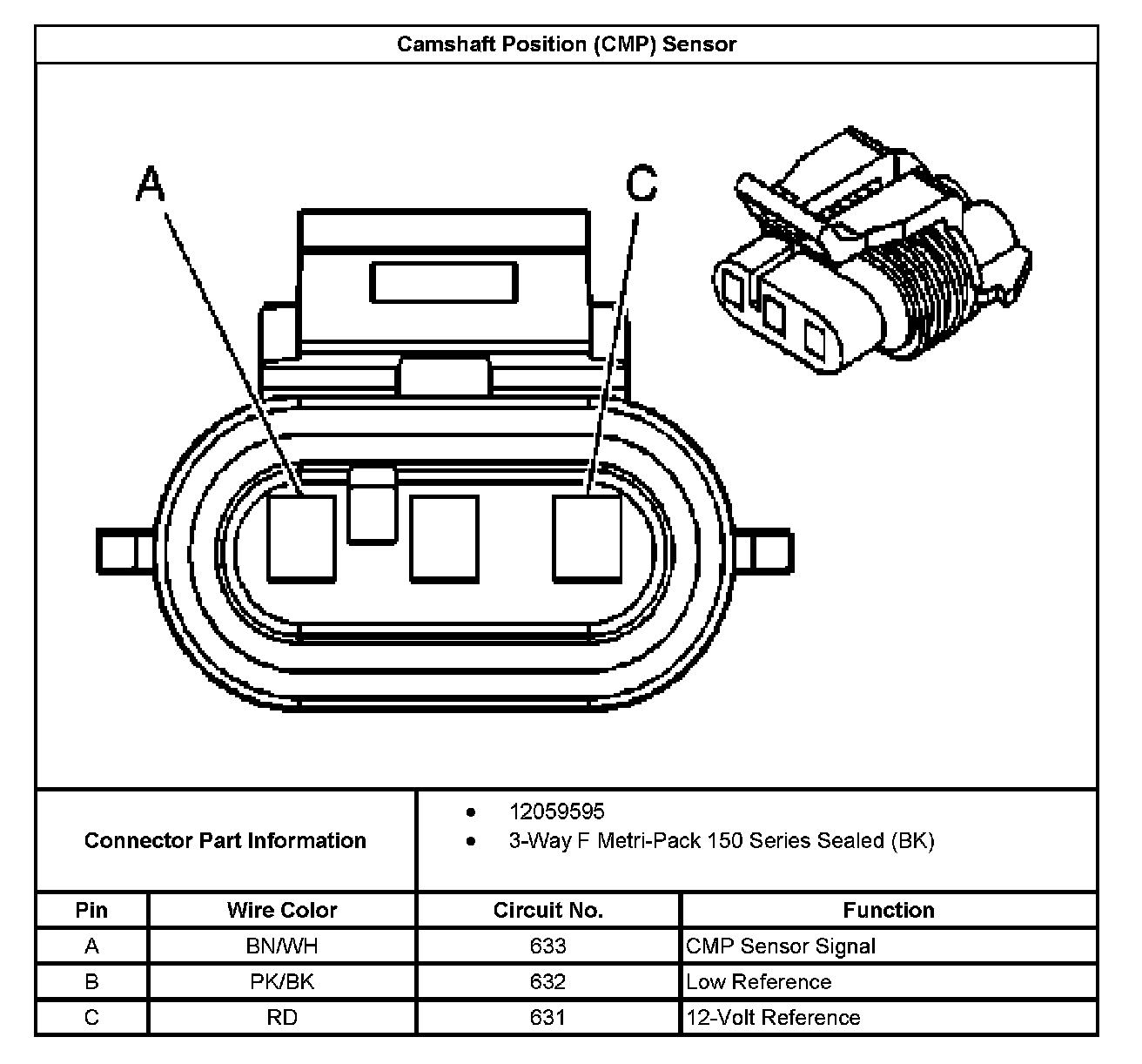

Camshaft Position (CMP) Sensor:
